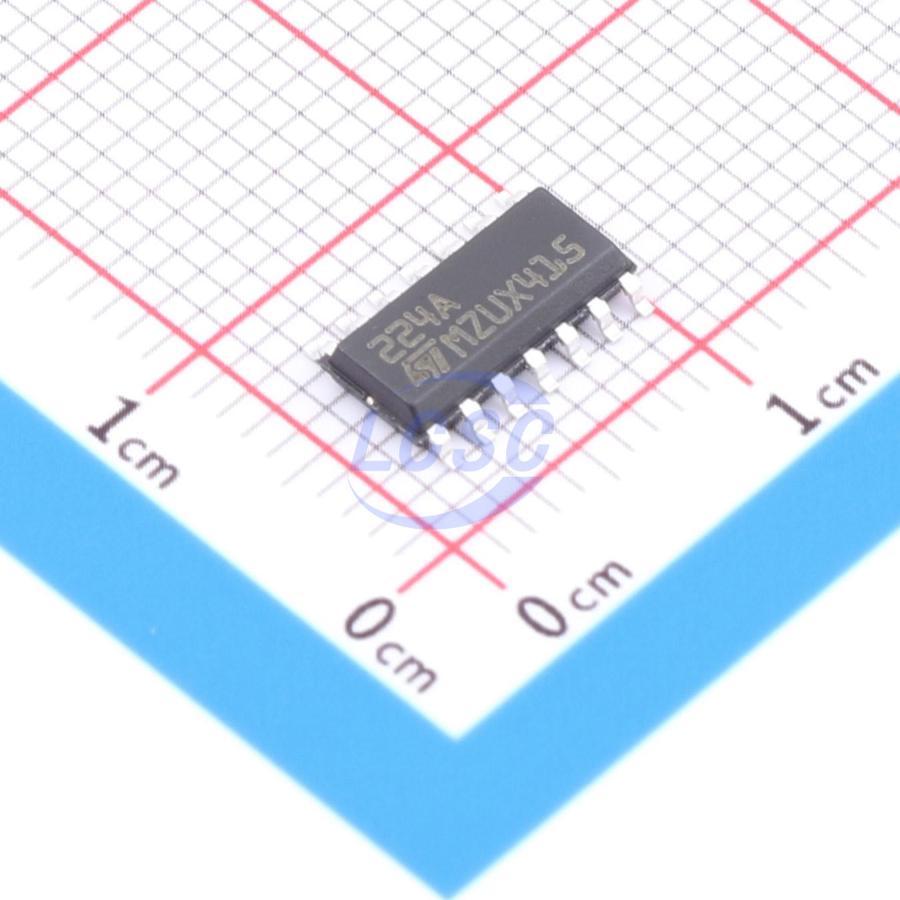

LM224ADT
40mA 4 3mV 400V/ms 80dB 20nA 700uA 1.3MHz SOIC-14 Instrumentation, Op Amps, Buffer Amps RoHS
SOIC-14ROHS3 CompliantActive
Low-power quad operational amplifiers
- Manufacturer
- ST
- Manufacturer part #
- LM224ADT
- Store part #
- C140387
- Package / case
- SOIC-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,655 in stock
#C140387
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹34.55 | ₹172.75 |
| 50+ | ₹28.68 | ₹1,434.00 |
| 150+ | ₹26.15 | ₹3,922.50 |
| 500+ | ₹23.01 | ₹11,505.00 |
| 2,500+ | ₹21.02 | ₹52,550.00 |
| 5,000+ | ₹20.18 | ₹1,00,900.00 |
5 × ₹34.55
₹172.75
excl. GST
₹203.85 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM224ADT
₹172.75 for 5 + GST
Specifications
- Output Current
- 40mA
- Number of Channels
- 4
- Vos - Input Offset Voltage
- 3mV
- Slew Rate
- 400V/ms
- Input Offset Current(Ios)
- 40nA
- Operating Temperature
- -40℃~+105℃
- Common Mode Rejection Ratio(CMRR)
- 80dB
- Ib - Input Bias Current
- 20nA
- Input Offset Voltage Drift(Vos TC)
- 7uV/℃
- Quiescent Current
- 700uA
- Gain Bandwidth Product
- 1.3MHz
- Features
- Built-in compensation
- Input Voltage Noise Density
- 40nV/√Hz@1kHz
- Dual Supply
- -15V~-1.5V;1.5V~15V
- Single Supply
- 3V~30V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.331 g
Overview
These circuits consist of four independent, high gain operational amplifiers with frequency compensation implemented internally. They operate from a single power supply over a wide range of voltages. Operation from split power supplies is also possible and the low-power supply current drain is independent of the magnitude of the power supply voltage.
Applications
- AC-coupled inverting amplifier
- High input impedance adjustable-gain DC instrumentation amplifier
- AC-coupled non-inverting amplifier
- DC summing circuit
Key features
- Wide gain bandwidth: 1.3 MHz
- Input common mode voltage range includes ground
- Large voltage gain: 100 dB
- Very low supply current/amplifier: 375 μA
- Low input bias current: 20 nA
- Low input voltage: 3 mV max
- Low input offset current: 2 nA
- Wide power supply range: Single supply: 3 V to 30 V Dual supplies: ±1.5 V to ±15 V
