UMWDatasheet (PDF)

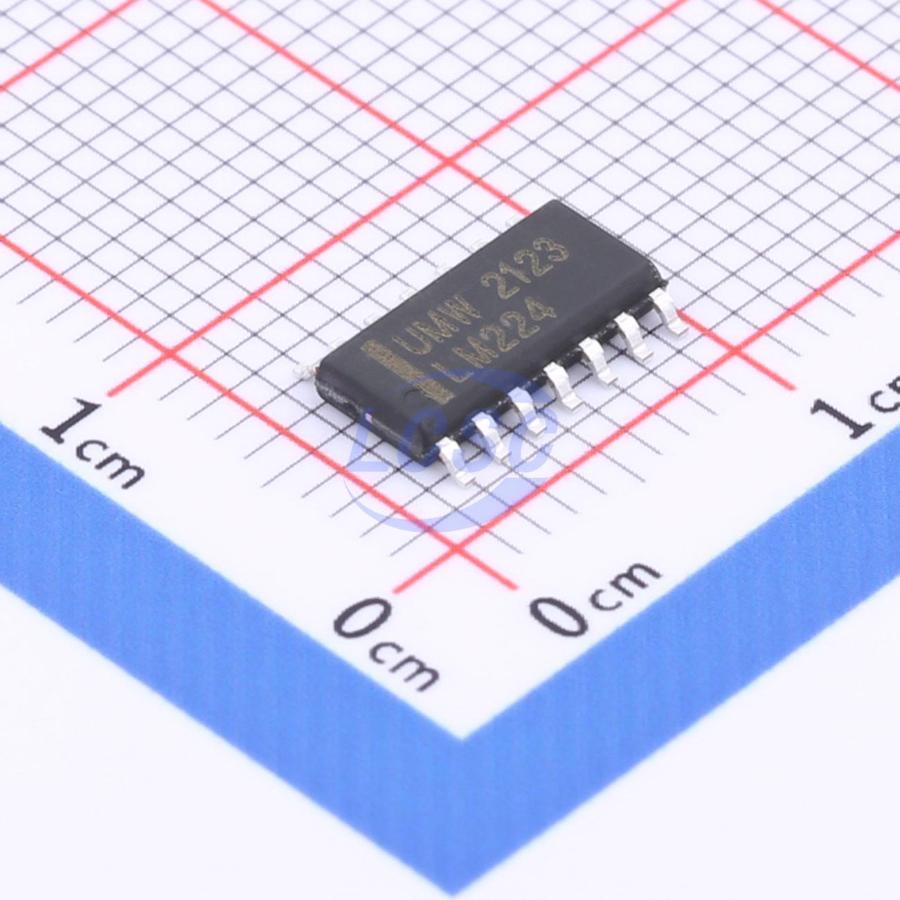

LM224DR(UMW)
30mA 4 3mV 500V/ms 80dB 20nA 1.2MHz 700uA SOP-14 Instrumentation, Op Amps, Buffer Amps RoHS
SOP-14ROHS CompliantActive
Quadruple Operational Amplifiers
- Manufacturer
- UMW
- Manufacturer part #
- LM224DR(UMW)
- Store part #
- C2874963
- Package / case
- SOP-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,835 in stock
#C2874963
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.46 | ₹72.30 |
| 50+ | ₹11.13 | ₹556.50 |
| 150+ | ₹9.45 | ₹1,417.50 |
| 500+ | ₹8.19 | ₹4,095.00 |
| 2,500+ | ₹7.20 | ₹18,000.00 |
| 5,000+ | ₹6.69 | ₹33,450.00 |
5 × ₹14.46
₹72.30
excl. GST
₹85.31 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM224DR(UMW)
₹72.30 for 5 + GST
Specifications
- Output Current
- 30mA
- Number of Channels
- 4
- Vos - Input Offset Voltage
- 3mV
- Slew Rate
- 500V/ms
- Input Offset Current(Ios)
- 2nA
- Operating Temperature
- -20℃~+85℃
- Common Mode Rejection Ratio(CMRR)
- 80dB
- Ib - Input Bias Current
- 20nA
- Gain Bandwidth Product
- 1.2MHz
- Quiescent Current
- 700uA
- Input Voltage Noise Density
- 35nV/√Hz@1kHz
- Dual Supply
- -16V~-1.5V;1.5V~16V
- Single Supply
- 3V~32V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.274 g
Overview
This device contains four independent high-gain frequency-compensated operational amplifiers, designed to operate from a single supply or split supply over a wide voltage range.
Applications
- Blu-ray players and home theater
- Chemical and gas sensors
- Digital multimeters
- Motor control
- Temperature sensors or controllers
Key features
- Wide supply voltage range: single supply 3V to 32V (LM2902: 26V), dual supply ±1.5V to ±16V (LM2902: ±13V)
- Low supply current drain, independent of supply voltage: 0.8mA typical
- Common-mode input voltage range includes ground, allowing direct sensing of signals near ground
- Low input offset and bias parameters: input offset voltage 3mV typical, input offset current 2nA typical, input bias current 20nA typical
- Differential input voltage range equal to maximum rated supply voltage: 32V (LM2902: 26V)
- Open-loop differential voltage gain: 100V/mV typical
- Internal frequency compensation
