UMWDatasheet (PDF)

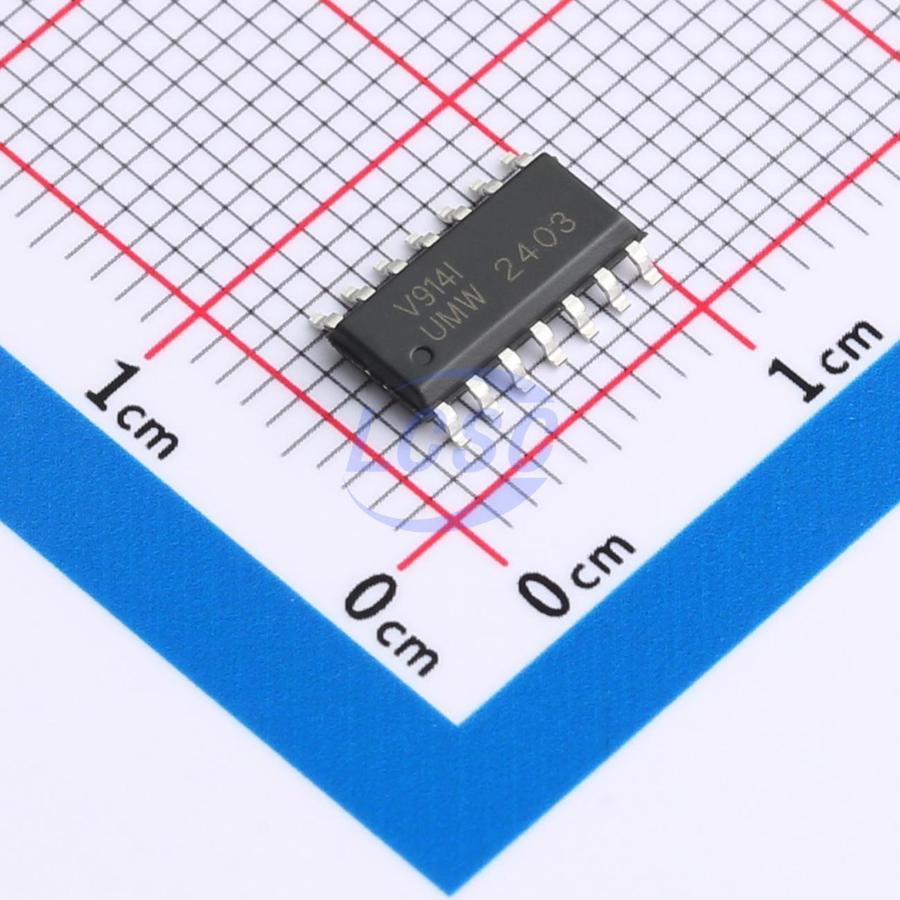

TSV914IDT(UMW)
35mA 4 4.5mV 4.5V/us 1pA 75dB 8MHz 780uA Rail-to-Rail Input, Rail-to-Rail Output SOP-14 Instrumentation, Op Amps, Buffer Amps RoHS
SOP-14ROHS CompliantActive
Single, dual, and quad rail-to-rail input/output 8 MHz operational amplifiers
- Manufacturer
- UMW
- Manufacturer part #
- TSV914IDT(UMW)
- Store part #
- C22373387
- Package / case
- SOP-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,334 in stock
#C22373387
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹37.37 | ₹37.37 |
| 10+ | ₹32.65 | ₹326.50 |
| 30+ | ₹30.51 | ₹915.30 |
| 100+ | ₹27.93 | ₹2,793.00 |
| 500+ | ₹26.63 | ₹13,315.00 |
| 1,000+ | ₹26.00 | ₹26,000.00 |
1 × ₹37.37
₹37.37
excl. GST
₹44.10 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TSV914IDT(UMW)
₹37.37 for 1 + GST
Specifications
- Output Current
- 35mA
- Number of Channels
- 4
- Vos - Input Offset Voltage
- 4.5mV
- Slew Rate
- 4.5V/us
- Input Offset Current(Ios)
- 10pA
- Operating Temperature
- -40℃~+125℃
- Ib - Input Bias Current
- 1pA
- Common Mode Rejection Ratio(CMRR)
- 75dB
- Input Offset Voltage Drift(Vos TC)
- 5uV/℃
- Gain Bandwidth Product
- 8MHz
- Quiescent Current
- 780uA
- Input Voltage Noise Density
- 21nV/√Hz@10kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.5V~5.5V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.29 g
Overview
UMW TSV91x and TSV91xA series op-amps feature low-voltage operation with rail-to-rail input and output, delivering an excellent speed-to-power ratio — providing 8MHz gain bandwidth product at a maximum supply current of only 1.1mA from a 5V supply. These op-amps are unity-gain stable with ultra-low input bias current. They are ideal for sensor interfaces, battery-powered portable applications, and active filtering.
Applications
- Battery-powered applications
- Portable devices
- Signal conditioning
Key features
- Rail-to-rail input and output
- Wide bandwidth
- Low power consumption: 820μA typical
- Unity-gain stable
- High output current: 35mA
- Operating voltage range: 2.5V to 5.5V
- Low input bias current: 1pA typical
- Low input offset voltage: 1.5mV max (Grade A)
- Internal ESD protection ≥ 5kV
- Latch-up immunity
