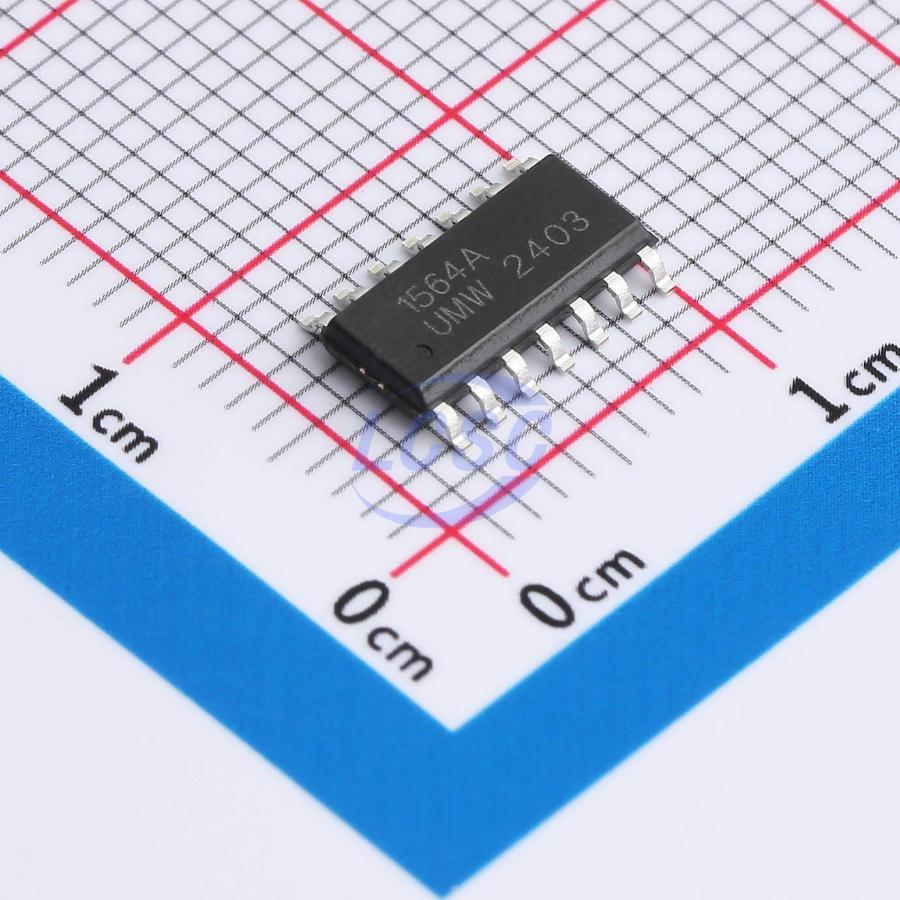

TP1564AL1-SR(UMW)

100mA 4 3mV 4.5V/us 100dB 1pA 600uA 6MHz Rail-to-Rail Input, Rail-to-Rail Output SOP-14 Instrumentation, Op Amps, Buffer Amps RoHS

SOP-14ROHS CompliantActive

6MHz Bandwidth, 600uA Low-Power, Rail-to-Rail Input and Output Operational Amplifiers

Manufacturer: UMW
Manufacturer part #: TP1564AL1-SR(UMW)
Store part #: C22365319
Package / case: SOP-14
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

6,855 in stock

#C22365319

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹21.89	₹109.45
50+	₹19.12	₹956.00
150+	₹17.94	₹2,691.00
500+	₹16.46	₹8,230.00
2,500+	₹15.81	₹39,525.00
5,000+	₹15.41	₹77,050.00

Quantity (min 5, multiples of 5)

5 × ₹21.89

₹109.45

excl. GST

₹129.15 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

TP1564AL1-SR(UMW)

₹109.45 for 5 + GST

Specifications

Output Current: 100mA
Number of Channels: 4
Vos - Input Offset Voltage: 3mV
Slew Rate: 4.5V/us
Input Offset Current(Ios): 1pA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 100dB
Ib - Input Bias Current: 1pA
Input Offset Voltage Drift(Vos TC): 1uV/℃
Quiescent Current: 600uA
Gain Bandwidth Product: 6MHz
Features: EMI filtering/RF suppression;ESD protection
Input Voltage Noise Density: 19nV/√Hz@1kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 2.5V~6V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.285 g

Overview

The TP156X series are CMOS dual, and quad RRIO opamps with low offset, low power and stable high frequency response. to achieve very good AC performance with 6MHz bandwidth, 4.5V/μs slew rate and low distortion while drawing only 600μμ of quiescent current per amplifier. The input common-mode voltage range extends 300mV beyond V- and V+ , and the outputs swing rail-to-rail. The TP156X family can be used as plug-in replacements for many commercially available op-amps to reduce power and improve input/output range and performance.

Applications

White Goods
Motor Control

Key features

Supply Voltage: 2.5V to 6.0V
Low Supply Current: 600μμ per channel
Rail to Rail Input and Output
Bandwidth: 6 MHz
Slew Rate: 4.5V/μs
Excellent EMI Suppress Performance
Offset Voltage: ±3mV Maximum
Offset Voltage Temperature Drift: 1 μV/σ
Low Noise: 19 nV/√Hz at 1kHz
High Output Capability: 100mA
-40°C to 125°C Operation Temperature Range
