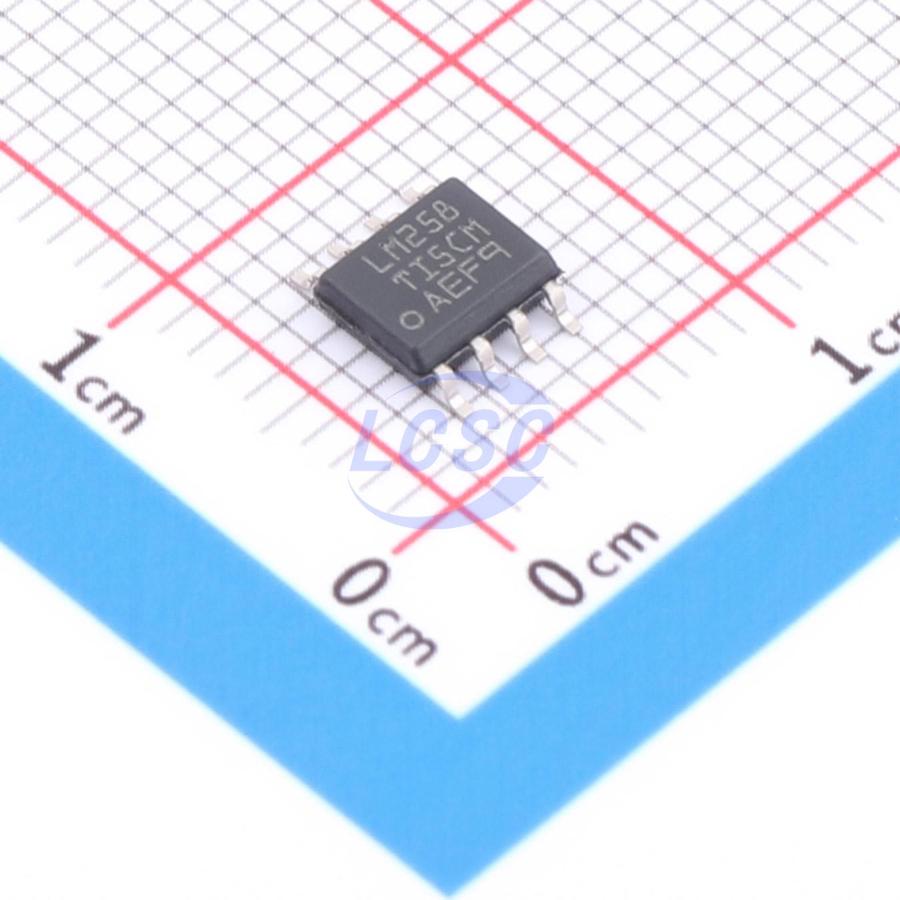

LM258DR
30mA 2 3mV 300V/ms 80dB 300nA 700uA 700kHz SOIC-8 Instrumentation, Op Amps, Buffer Amps RoHS
SOIC-8ROHS3 CompliantActive
Dual Operational Amplifiers
- Manufacturer
- TI
- Manufacturer part #
- LM258DR
- Store part #
- C7928
- Package / case
- SOIC-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,98,385 in stock
#C7928
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.48 | ₹62.40 |
| 50+ | ₹10.15 | ₹507.50 |
| 150+ | ₹8.96 | ₹1,344.00 |
| 500+ | ₹7.96 | ₹3,980.00 |
| 2,500+ | ₹7.62 | ₹19,050.00 |
| 5,000+ | ₹7.38 | ₹36,900.00 |
5 × ₹12.48
₹62.40
excl. GST
₹73.63 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM258DR
₹62.40 for 5 + GST
Specifications
- Output Current
- 30mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 3mV
- Slew Rate
- 300V/ms
- Input Offset Current(Ios)
- 2nA
- Operating Temperature
- -25℃~+85℃
- Common Mode Rejection Ratio(CMRR)
- 80dB
- Ib - Input Bias Current
- 300nA
- Input Offset Voltage Drift(Vos TC)
- 7uV/℃
- Quiescent Current
- 700uA
- Gain Bandwidth Product
- 700kHz
- Features
- EMI filtering/RF suppression
- Input Voltage Noise Density
- 40nV/√Hz@1kHz
- Dual Supply
- 1.5V~16V;-16V~-1.5V
- Single Supply
- 3V~32V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.231 g
Overview
These devices consist of two independent, high-gain frequency-compensated operational amplifiers designed to operate from a single supply or split supply over a wide range of voltages.
Applications
- Blu-ray Players and Home Theaters
- Chemical and Gas Sensors
- DVD Recorder and Players
- Digital Multimeter: Bench and Systems
- Digital Multimeter: Handhelds
- Field Transmitter: Temperature Sensors
- Motor Control: AC Induction, Brushed DC, Brushless DC, High-Voltage, Low-Voltage, Permanent Magnet, and Stepper Motor
- Oscilloscopes
- TV: LCD and Digital
- Temperature Sensors or Controllers Using Modbus
- Weigh Scales
Key features
- Wide Supply Ranges
- Single Supply: 3 V to 32 V (26 V for LM2904)
- Dual Supplies: ±1.5 V to ±16 V (±13 V for LM2904)
- Low Supply-Current Drain, Independent of Supply Voltage: 0.7 mA Typical
- Wide Unity Gain Bandwidth: 0.7 MHz
- Common-Mode Input Voltage Range Includes Ground, Allowing Direct Sensing Near Ground
- Low Input Bias and Offset Parameters
- Input Offset Voltage: 3 mV Typical, A Versions: 2 mV Typical
- Input Offset Current: 2 nA Typical
- Input Bias Current: 20 nA Typical, A Versions: 15 nA Typical
- Differential Input Voltage Range Equal to Maximum-Rated Supply Voltage: 32 V (26 V for LM2904)
- Open-Loop Differential Voltage Gain: 100 dB Typical
- Internal Frequency Compensation
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LM258D#C1346256TI · SOIC-8 | TI | SOIC-8 | 5,400 | ₹24.50 · 5,400 in stock | View |
 | LM258AM/TR#C20613271HGSEMI · SOP-8 | HGSEMI | SOP-8 | 2,110 | ₹11.43 · 2,110 in stock | View |
 | LM258DTR#C22387201XBLW · SOP-8 | XBLW | SOP-8 | 1,170 | ₹8.49 · 1,170 in stock | View |
 | LM258#C2941724IDCHIP · SOIC-8 | IDCHIP | SOIC-8 | 23,600 | ₹10.97 · 23,600 in stock | View |
 | HT258ARZ#C2998004HTCSEMI · SOP-8 | HTCSEMI | SOP-8 | 290 | ₹14.28 · 290 in stock | View |
