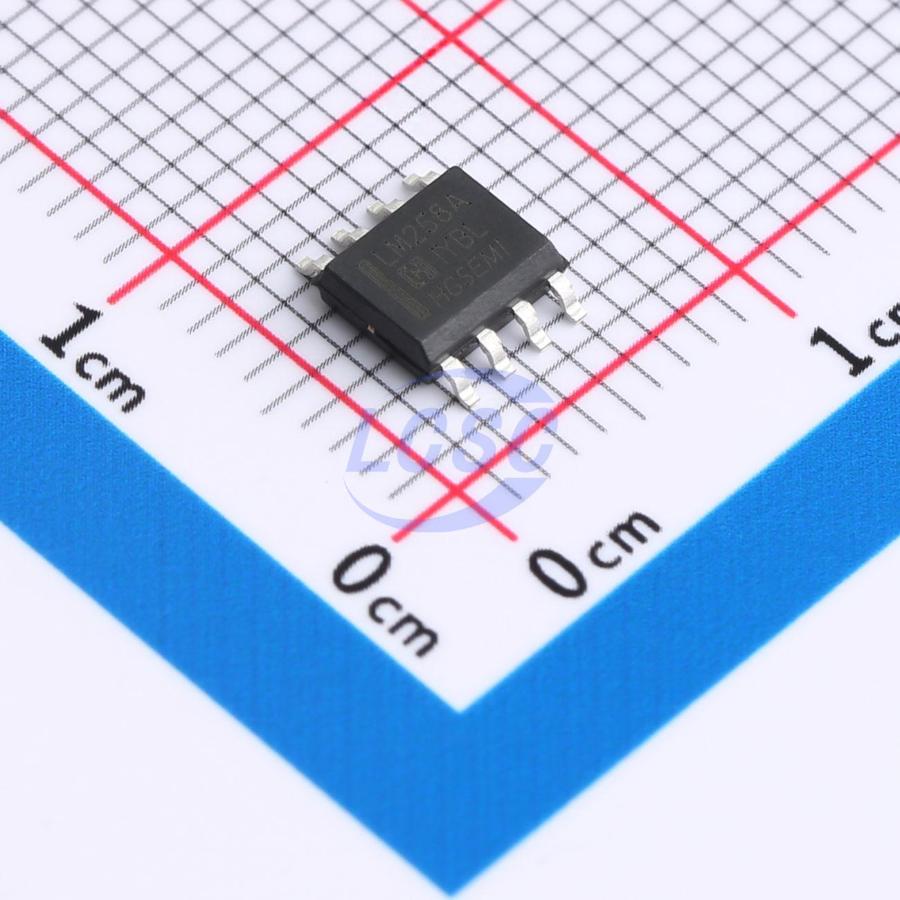

LM258AM/TR
30mA 2 3mV 300V/ms 20nA 70dB 700uA 700kHz SOP-8 Instrumentation, Op Amps, Buffer Amps
SOP-8RoHSActive
Dual Operational Amplifiers
- Manufacturer
- HGSEMI
- Manufacturer part #
- LM258AM/TR
- Store part #
- C20613271
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,110 in stock
#C20613271
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.43 | ₹57.15 |
| 50+ | ₹9.04 | ₹452.00 |
| 150+ | ₹7.85 | ₹1,177.50 |
| 500+ | ₹6.95 | ₹3,475.00 |
| 2,500+ | ₹6.23 | ₹15,575.00 |
| 5,000+ | ₹5.86 | ₹29,300.00 |
5 × ₹11.43
₹57.15
excl. GST
₹67.44 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM258AM/TR
₹57.15 for 5 + GST
Specifications
- Output Current
- 30mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 3mV
- Slew Rate
- 300V/ms
- Input Offset Current(Ios)
- 2nA
- Operating Temperature
- -25℃~+85℃
- Ib - Input Bias Current
- 20nA
- Common Mode Rejection Ratio(CMRR)
- 70dB
- Input Offset Voltage Drift(Vos TC)
- 7uV/℃
- Quiescent Current
- 700uA
- Gain Bandwidth Product
- 700kHz
- Input Voltage Noise Density
- 40nV/√Hz@1kHz
- Dual Supply
- -16V~-1.5V;1.5V~16V
- Single Supply
- 3V~32V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.253 g
Overview
The LM258A/LM358A is a dual low-power differential op-amp that operates from either single or dual supplies. It features high open-loop gain, internal compensation, wide common-mode range, excellent temperature stability, and output short-circuit protection. Widely used in sensor amplification circuits, DC amplifier modules, audio amplification circuits, and general-purpose op-amp applications.
Applications
- Sensor signal amplifier
- DC gain
- Audio amplifier
- Other applications
Key features
- Internal frequency compensation
- Short-circuit protection
- Low power consumption: typical 0.5mA @ VCC=5V
- Package: DIP-8, SOP-8, MSOP-8
- Single-supply voltage range: 3V~36V
- Dual-supply voltage range: ±18V
- Unity-gain bandwidth: up to 1.2MHz
