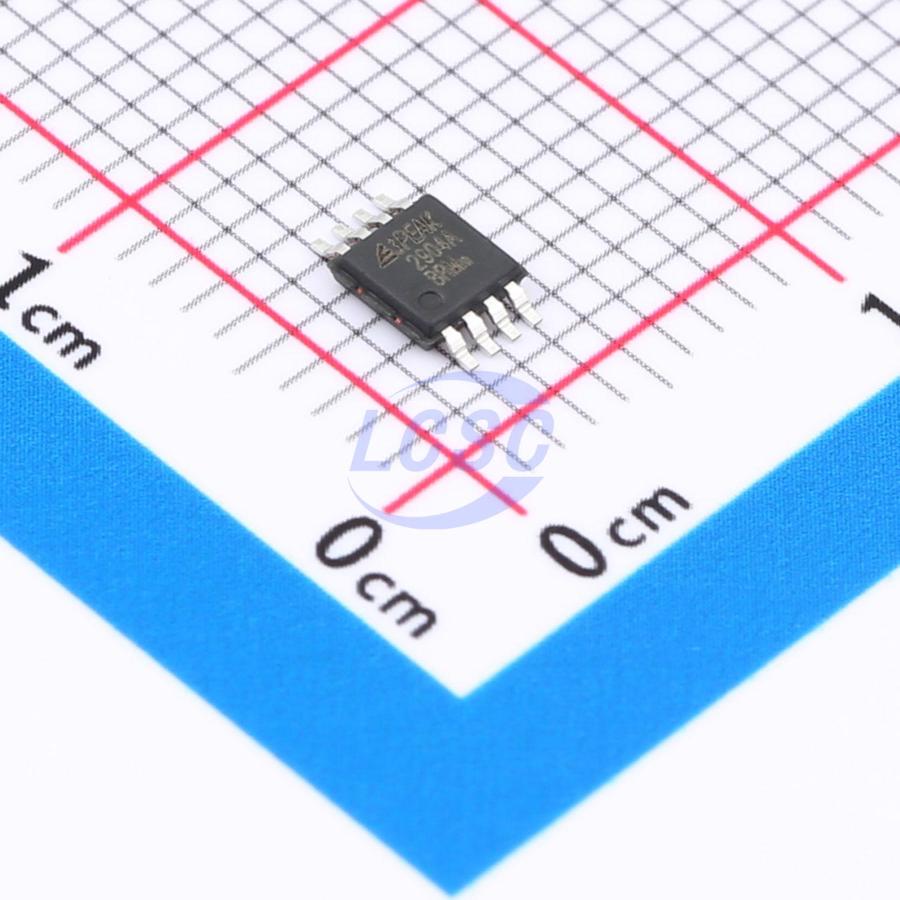

LM2904A-VR

The LM2904A/2902A is a series of the newest high-supply voltage amplifiers with low offset, low power, and stable frequency response. The series incorporates proprietary and patented design techniques to achieve excellent AC performance with 0.9-MHz bandwidth, 0.5-V/μs slew rate, and maximum 3-mV offset while drawing only 100 μA of quiescent current per amplifier. The input common-mode voltage range extends to -Vs, and the outputs swing rail-to-rail. The LM2904A/2902A series can be used as plug-in replacements for commercially available op amps to reduce power and improve input/output range and performance. The combination of features makes the LM2904A/2902A ideal choices for the power module, industrial control, motor control, and audio applications.

Applications

• Power Module
• Sensor Interface
• Motor Control
• Audio

Key features

• Supply Voltage: 3 V to 36 V or ±1.5 V to ±18 V
• Low Supply Current: 100 μA per Channel
• Input Common-Mode Voltage Range Includes Ground
• Can Work as Comparators
• Rail-to-Rail Output
• Bandwidth: 0.9 MHz
• Slew Rate: 0.5 V/μs
• Excellent EMI Suppress Performance: 71 dB at 1 GHz
• Offset Voltage: ±3 mV (Max)
• Offset Voltage Temperature Drift: 7 μV/°C
• Operating Temperature Range: -40°C to 125°C
