3PEAKDatasheet (PDF)

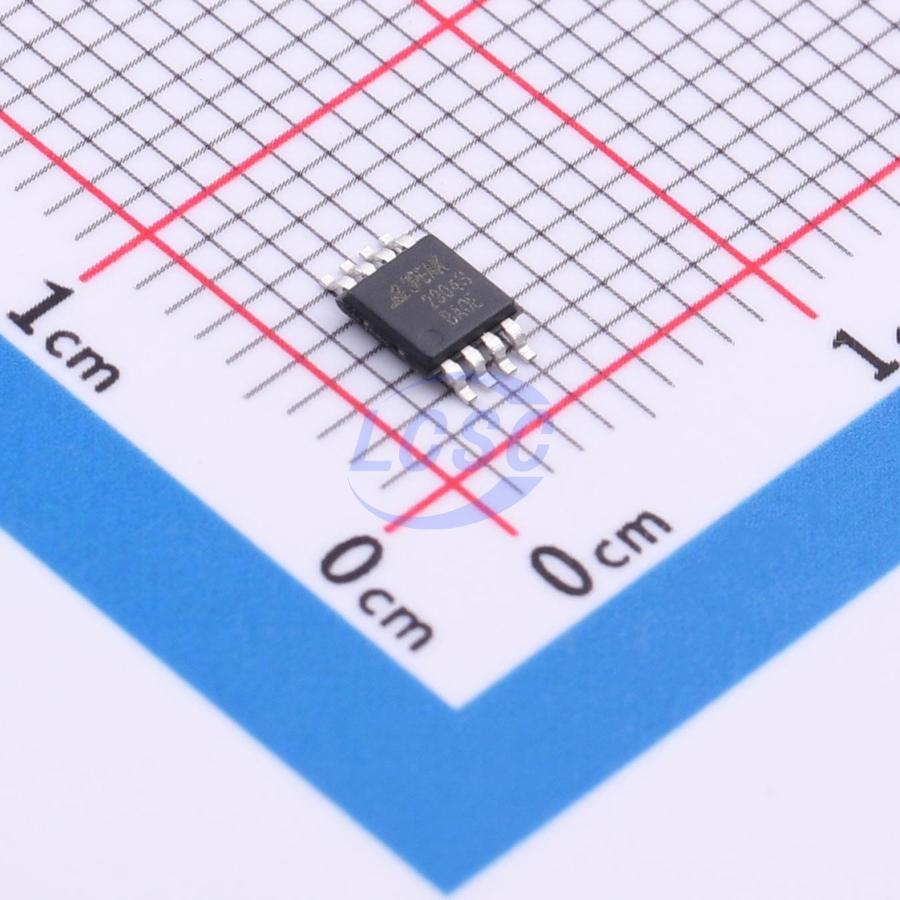

LM2904A-VS1R-S
25mA 2 4mV 500V/ms 120dB 2nA 300uA 900kHz Rail-to-rail output MSOP-8 Instrumentation, Op Amps, Buffer Amps RoHS
MSOP-8ROHS3 CompliantActive
- Manufacturer
- 3PEAK
- Manufacturer part #
- LM2904A-VS1R-S
- Store part #
- C38087490
- Package / case
- MSOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,470 in stock
#C38087490
Stock & price checked 35 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹25.82 | ₹129.10 |
| 50+ | ₹19.86 | ₹993.00 |
| 150+ | ₹17.30 | ₹2,595.00 |
| 500+ | ₹14.12 | ₹7,060.00 |
| 3,000+ | ₹12.69 | ₹38,070.00 |
| 6,000+ | ₹11.84 | ₹71,040.00 |
5 × ₹25.82
₹129.10
excl. GST
₹152.34 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LM2904A-VS1R-S
₹129.10 for 5 + GST
Specifications
- Output Current
- 25mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 4mV
- Slew Rate
- 500V/ms
- Input Offset Current(Ios)
- 2nA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 120dB
- Ib - Input Bias Current
- 2nA
- Input Offset Voltage Drift(Vos TC)
- 7uV/℃
- Quiescent Current
- 300uA
- Gain Bandwidth Product
- 900kHz
- Input Voltage Noise Density
- 70nV/√Hz@1kHz
- Dual Supply
- -18V~-1.5V;1.5V~18V
- Rail to Rail
- Rail-to-rail output
- Single Supply
- 3V~36V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.013 g
Overview
The LM2904A/2902A series amplifiers are the latest high-supply-voltage amplifiers featuring low offset, low power consumption, and stable frequency response. They employ proprietary design techniques to achieve excellent AC performance, including 0.9 MHz bandwidth and 0.5 V/μs slew rate. The input common-mode voltage range extends to V−, and the output swings rail-to-rail. These amplifiers serve as drop-in replacements for many commercial op-amps to reduce power consumption and improve input/output range and performance. This combination of features makes them ideal for power modules, industrial control, motor control, and audio applications.
Applications
- Automotive sensor interface
- Motor control
Key features
- Supply voltage: 3V ~ 36V or ±1.5V ~ ±18V
- Low quiescent current per channel: 100μA
- Input common-mode voltage range includes ground
- Usable as comparator
- Rail-to-rail output
- Bandwidth: 0.9 MHz
- Slew rate: 0.5 V/μs
- Excellent EMI rejection: 71 dB at 1 GHz
- Offset voltage: ±3 mV max
- Operating temperature range: -40℃ ~ 125℃
- AEC-Q100 qualified for automotive applications
