UMWDatasheet (PDF)

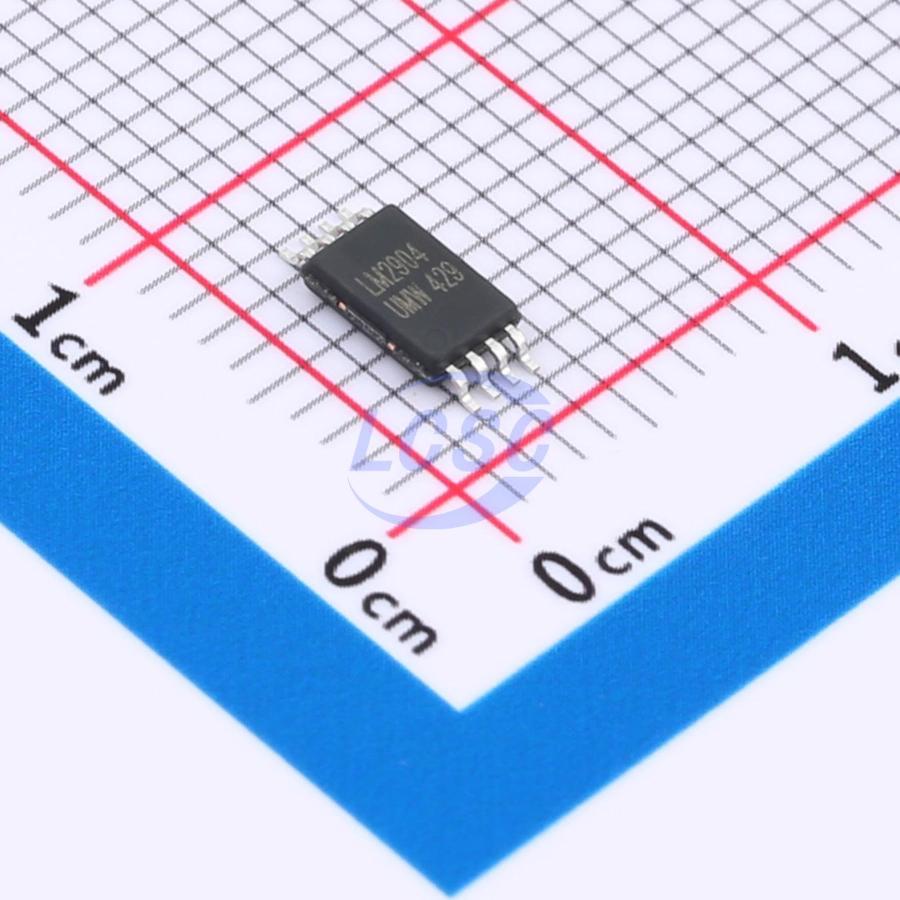

LM2904PWR(UMW)
Standard (General Purpose) Amplifier 2 Circuit TSSOP-8
TSSOP-8ROHS CompliantActive
Dual Operational Amplifier
- Manufacturer
- UMW
- Manufacturer part #
- LM2904PWR(UMW)
- Store part #
- C41367196
- Package / case
- TSSOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,480 in stock
#C41367196
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.11 | ₹60.55 |
| 50+ | ₹9.57 | ₹478.50 |
| 150+ | ₹8.30 | ₹1,245.00 |
| 500+ | ₹7.34 | ₹3,670.00 |
| 2,500+ | ₹6.59 | ₹16,475.00 |
| 4,000+ | ₹6.20 | ₹24,800.00 |
5 × ₹12.11
₹60.55
excl. GST
₹71.45 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
LM2904PWR(UMW)
₹60.55 for 5 + GST
Specifications
- Output Current
- 20mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 5mV
- Slew Rate
- 300V/ms
- Input Offset Current(Ios)
- 3nA
- Operating Temperature
- -40℃~+105℃
- Common Mode Rejection Ratio(CMRR)
- 85dB
- Ib - Input Bias Current
- 300nA
- Input Offset Voltage Drift(Vos TC)
- 7uV/℃
- Gain Bandwidth Product
- 700kHz
- Quiescent Current
- 500uA
- Input Voltage Noise Density
- 40nV/√Hz@1kHz
- Dual Supply
- -13V~13V
- Single Supply
- 2.7V~26V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.144 g
Overview
LM2904 contains two independent high-gain op-amps. It operates from either a single or dual supply, with supply current consumption independent of supply voltage. Applications include variable-frequency amplifiers, DC gain stages, and all conventional op-amp circuits. Available in DIP8 or SOP8 package.
Key features
- Single or dual supply operation
- Two internally compensated op amps in a single package
- Logic compatible
- Low power consumption
- Wide frequency range
- DIP8/SOP8 package
