UTCDatasheet (PDF)

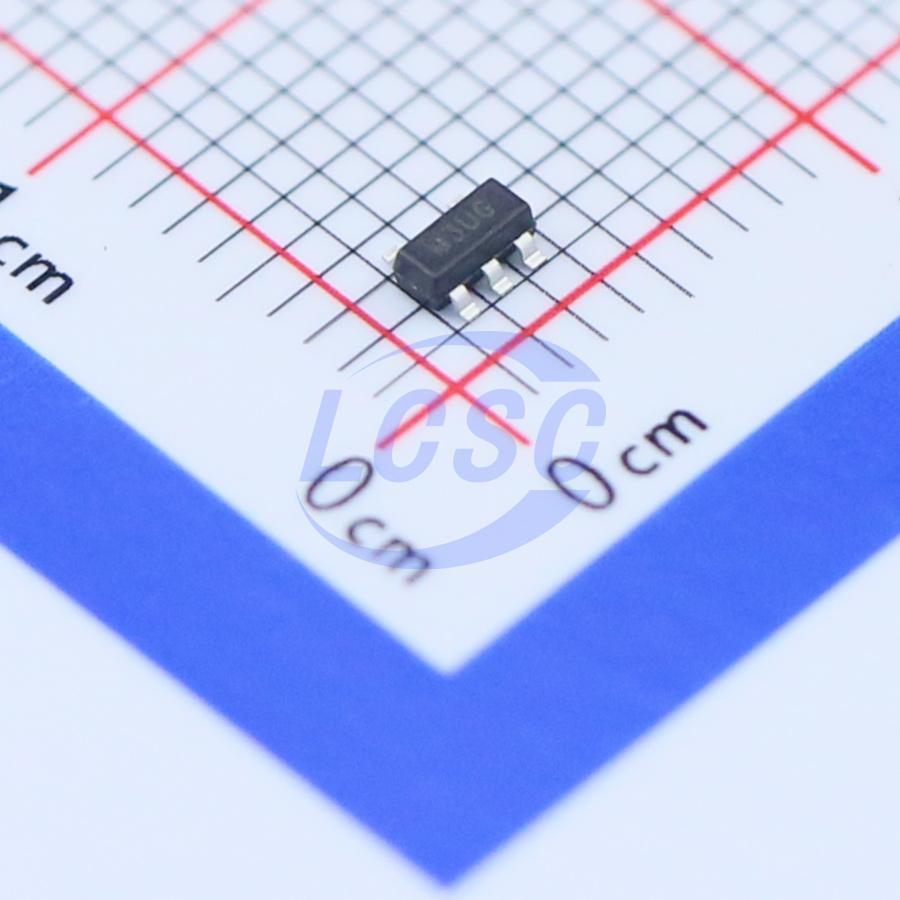

LM321G-AE5-R
40mA 1 2mV 400V/ms 85dB 45nA 430uA 1MHz SOT-23-5 Instrumentation, Op Amps, Buffer Amps RoHS
SOT-23-5ROHS CompliantActive
LOW POWER SINGLE OPAMP
- Manufacturer
- UTC
- Manufacturer part #
- LM321G-AE5-R
- Store part #
- C100068
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
16,973 in stock
#C100068
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹12.52 | ₹12.52 |
| 10+ | ₹10.54 | ₹105.40 |
| 30+ | ₹9.55 | ₹286.50 |
| 100+ | ₹8.81 | ₹881.00 |
| 500+ | ₹8.22 | ₹4,110.00 |
| 1,000+ | ₹7.92 | ₹7,920.00 |
1 × ₹12.52
₹12.52
excl. GST
₹14.77 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LM321G-AE5-R
₹12.52 for 1 + GST
Specifications
- Output Current
- 40mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 2mV
- Slew Rate
- 400V/ms
- Input Offset Current(Ios)
- 50nA
- Operating Temperature
- -40℃~+85℃
- Common Mode Rejection Ratio(CMRR)
- 85dB
- Ib - Input Bias Current
- 45nA
- Quiescent Current
- 430uA
- Gain Bandwidth Product
- 1MHz
- Input Voltage Noise Density
- 40nV/√Hz@1kHz
- Single Supply
- 3V~32V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.036 g
Overview
The UTC LM321’s quiescent current is only 430 μA (5V). The UTC LM321 brings performance and economy to low power systems, With a high unity gain frequency and a specified 0.4 V/μs slew rate. The input common mode range includes ground and therefore the device is able to operate in single supply applications as well as in dual supply applications. It is also capable of comfortably driving large capacitive loads.
Key features
- Low supply current 430 μA
- Gain-Bandwidth product 1MHz
- Low input bias current 45nA
- Wide supply voltage range +3 V to +32 V
- Stable with high capacitive loads
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LM321MF/NOPB#C131103TI · SOT-23-5 | TI | SOT-23-5 | 5,185 | ₹21.75 · 5,185 in stock | View |
 | LM321MF/TR-HG#C53374690HGSEMI · SOT-23-5 | HGSEMI | SOT-23-5 | 2,860 | ₹4.07 · 2,860 in stock | View |
 | LM321G-AF5-R#C7464710UTC · SOT-25 | UTC | SOT-25 | 1,540 | ₹10.31 · 1,540 in stock | View |
 | AS321KTR-MS#C52988848MSKSEMI · SOT-23-5 | MSKSEMI | SOT-23-5 | 2,950 | ₹6.91 · 2,950 in stock | View |
 | LM321MF011#C51026323GREENMICRO · SOT-23-5 | GREENMICRO | SOT-23-5 | 36,920 | ₹3.95 · 36,920 in stock | View |
