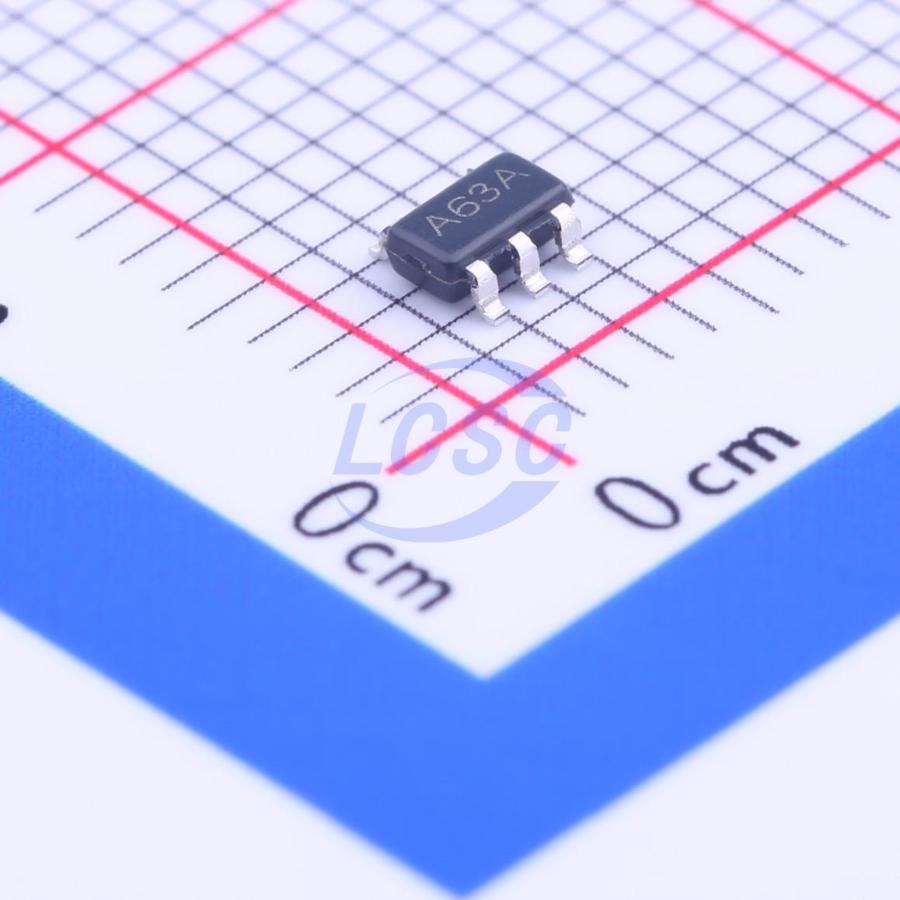

LM321MF/NOPB

40mA 1 2mV 400V/ms 85dB 45nA 430uA 1MHz SOT-23-5 Instrumentation, Op Amps, Buffer Amps RoHS

SOT-23-5ROHS CompliantActive

Low Power Single Operational Amplifier

Manufacturer: TI
Manufacturer part #: LM321MF/NOPB
Store part #: C131103
Package / case: SOT-23-5
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

5,185 in stock

#C131103

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹26.16	₹130.80
50+	₹20.37	₹1,018.50
150+	₹17.89	₹2,683.50
1,000+	₹14.79	₹14,790.00
2,000+	₹13.42	₹26,840.00
5,000+	₹12.58	₹62,900.00

Quantity (min 5, multiples of 5)

5 × ₹26.16

₹130.80

excl. GST

₹154.34 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 1,000 per reel

LM321MF/NOPB

₹130.80 for 5 + GST

Specifications

Output Current: 40mA
Number of Channels: 1
Vos - Input Offset Voltage: 2mV
Slew Rate: 400V/ms
Input Offset Current(Ios): 5nA
Operating Temperature: -40℃~+85℃
Common Mode Rejection Ratio(CMRR): 85dB
Ib - Input Bias Current: 45nA
Input Offset Voltage Drift(Vos TC): 9uV/℃
Quiescent Current: 430uA
Gain Bandwidth Product: 1MHz
Input Voltage Noise Density: 40nV/√Hz@1kHz
Single Supply: 3V~30V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 1,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.033 g

Overview

The LM321 brings performance and economy to low power systems. With a high unity gain frequency and a specified 0.4 V/μs slew rate, the quiescent current is only 430 μA/ amplifier (5 V). The input common mode range includes ground and therefore the device is able to operate in single supply applications as well as in dual supply applications. It is also capable of comfortably driving large capacitive loads. The LM321 is available in the SOT - 23 package. Overall the LM321 is a low power, wide supply range performance operational amplifier that can be designed into a wide range of applications at an economical price without sacrificing valuable board space.

Applications

Chargers
Power Supplies
Industrial: Controls, Instruments
Desktops Communications Infrastructure

Key features

Gain - Bandwidth Product 1 MHz
Low Supply Current 430 μA
Low Input Bias Current 45 nA
Wide Supply Voltage Range 3 V to 32 V
Stable With High Capacitive Loads
Single Version of LM324
