HGSEMIDatasheet (PDF)

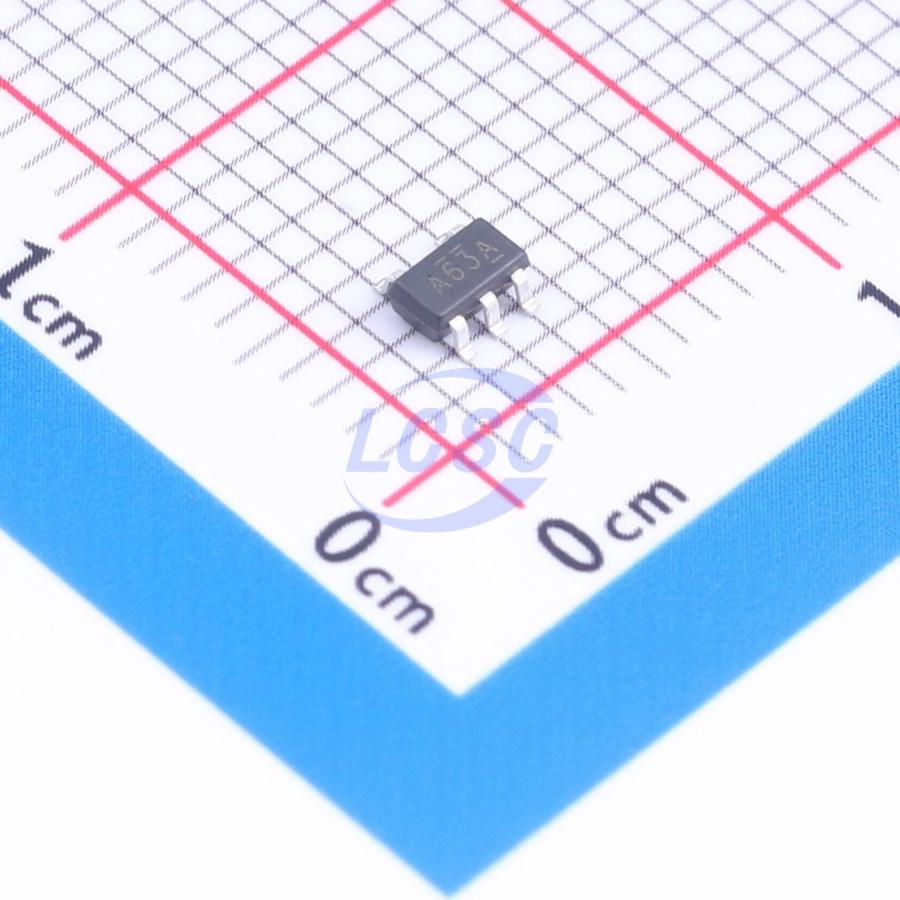

LM321MF/TR-HG
40mA 1 2mV 400V/ms 85dB 45nA 430uA 1MHz SOT-23-5 Instrumentation, Op Amps, Buffer Amps
SOT-23-5RoHSActive
- Manufacturer
- HGSEMI
- Manufacturer part #
- LM321MF/TR-HG
- Store part #
- C53374690
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,860 in stock
#C53374690
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹4.90 | ₹98.00 |
| 200+ | ₹3.89 | ₹778.00 |
| 600+ | ₹3.39 | ₹2,034.00 |
| 3,000+ | ₹3.02 | ₹9,060.00 |
| 9,000+ | ₹2.71 | ₹24,390.00 |
| 21,000+ | ₹2.57 | ₹53,970.00 |
20 × ₹4.90
₹98.00
excl. GST
₹115.64 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LM321MF/TR-HG
₹98.00 for 20 + GST
Specifications
- Output Current
- 40mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 2mV
- Slew Rate
- 400V/ms
- Input Offset Current(Ios)
- 5nA
- Operating Temperature
- -40℃~+85℃
- Common Mode Rejection Ratio(CMRR)
- 85dB
- Ib - Input Bias Current
- 45nA
- Quiescent Current
- 430uA
- Gain Bandwidth Product
- 1MHz
- Input Voltage Noise Density
- 40nV/√Hz@1kHz
- Single Supply
- 3V~30V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.079 g
Overview
The LM321 brings high performance and economy to low-power systems. It features a high unity-gain bandwidth and a specified slew rate of 0.4V/µs, with a quiescent current of only 430µA per amplifier (5V supply). Its input common-mode range includes ground, allowing the device to operate in both single-supply and dual-supply applications. It also drives large capacitive loads with ease. The LM321 is available in a SOT23-3 package. Overall, the LM321 is a low-power, wide supply range, high-performance op-amp that can be designed into a wide variety of applications at an economical price without consuming valuable board space.
Applications
- Chargers
- Power Supplies
- Industrial: Control, Instrumentation
- Desktop
- Communications Infrastructure
Key features
- Gain-bandwidth product 1MHz
- Low supply current 430µA
- Low input bias current 45nA
- Wide supply voltage range +3V ~ +32V
- Stable with high capacitive loads
- Single-channel version of LM324
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LM321M5X/TR#C398143HGSEMI · SOT-23-5 | HGSEMI | SOT-23-5 | 4,660 | ₹5.31 · 4,660 in stock | View |
 | LMV821AM5/TR#C725345HGSEMI · SOT-23-5 | HGSEMI | SOT-23-5 | 2,950 | ₹24.21 · 2,950 in stock | View |
 | LMV321AIM5/TR#C47411545HGSEMI · SOT-23-5 | HGSEMI | SOT-23-5 | 1,690 | ₹6.32 · 1,690 in stock | View |
 | HGV8541AIM5/TR#C51953515HGSEMI · SOT-23-5 | HGSEMI | SOT-23-5 | 2,865 | ₹16.76 · 2,865 in stock | View |
 | AD8541AIM5/TR#C51953516HGSEMI · SOT-23-5 | HGSEMI | SOT-23-5 | 2,435 | ₹18.63 · 2,435 in stock | View |
