TIDatasheet (PDF)

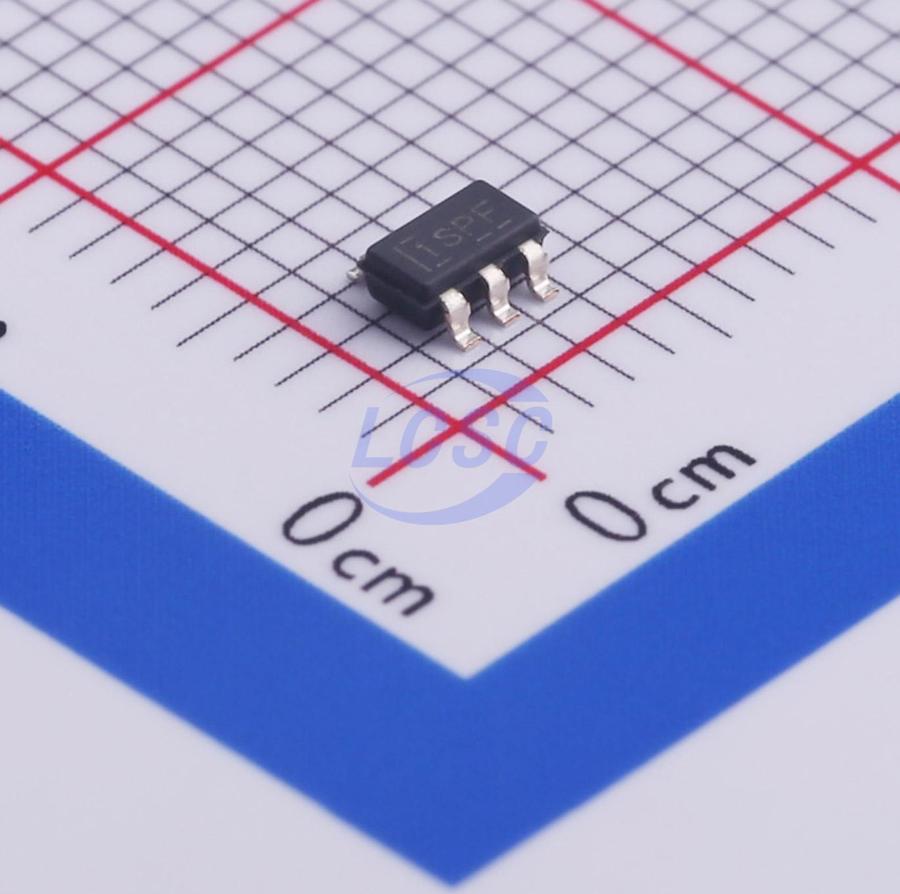

LM321LVIDBVR
40mA 1 1mV 1.5V/us 84dB 15pA 90uA 1MHz SOT-23-5 Instrumentation, Op Amps, Buffer Amps RoHS
SOT-23-5ROHS3 CompliantActive
Industry Standard, Low Voltage Operational Amplifiers
- Manufacturer
- TI
- Manufacturer part #
- LM321LVIDBVR
- Store part #
- C471859
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
19,680 in stock
#C471859
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.66 | ₹78.30 |
| 50+ | ₹12.48 | ₹624.00 |
| 150+ | ₹10.89 | ₹1,633.50 |
| 500+ | ₹9.70 | ₹4,850.00 |
| 3,000+ | ₹7.66 | ₹22,980.00 |
| 6,000+ | ₹7.18 | ₹43,080.00 |
5 × ₹15.66
₹78.30
excl. GST
₹92.39 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LM321LVIDBVR
₹78.30 for 5 + GST
Specifications
- Output Current
- 40mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 1mV
- Slew Rate
- 1.5V/us
- Input Offset Current(Ios)
- 5pA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 84dB
- Ib - Input Bias Current
- 15pA
- Input Offset Voltage Drift(Vos TC)
- 4uV/℃
- Quiescent Current
- 90uA
- Gain Bandwidth Product
- 1MHz
- Features
- Built-in compensation;ESD protection
- Input Voltage Noise Density
- 5.1nV/√Hz@1kHz
- Dual Supply
- -2.75V~-1.35V;1.35V~2.75V
- Single Supply
- 2.7V~5.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.025 g
Overview
Industry standard amplifier for cost-sensitive systems. The LM3xxLV family includes the single LM321LV, dual LM358LV, and quad LM324LV operational amplifiers, or op amps. The devices operate from a low voltage of 2.7 V to 5.5 V. These op amps supply an alternative to the LM321, LM358, and LM324 in low-voltage applications that are sensitive to cost. The LM3xxLV devices supply better performance than the LM3xx devices at low voltage, and have lower power consumption. The op amps are stable at unity gain, and do not have reverse phase in overdrive conditions. The design for ESD gives the LM3xxLV family an HBM specification for a minimum of 2 kV.
Applications
- Cordless appliances
- Uninterruptible power supply
- Battery pack, charger, and test equipment
- Power supply modules
- Environmental sensors signal conditioning
- Field transmitter: temperature sensors
- Oscilloscopes, digital multimeters, test equipment
- Rack mount server
- HVAC: heating, ventilating, and air conditioning
- DC motor control
- Low-side current sensing
Key features
- Low input offset voltage: ±1 mV
- Common-mode voltage range includes ground
- Unity-gain bandwidth: 1 MHz
- Low broadband noise: 40 nV/√Hz
- Low quiescent current: 90 μA/Ch
- Unity-gain stable
- Operational at supply voltages from 2.7 V to 5.5 V
- Offered in single, dual, and quad channel variants
- Robust ESD specification: 2-kV HBM
- Extended temperature range: -40°C to 125°C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LMV321BRTZ#C2928824HTCSEMI · SOT-23-5 | HTCSEMI | SOT-23-5 | 2,820 | ₹10.62 · 2,820 in stock | View |
 | LM321S5#C3011195TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 1,510 | ₹15.36 · 1,510 in stock | View |
 | LM321#C395460IDCHIP · SOT-23-5 | IDCHIP | SOT-23-5 | 21,310 | ₹6.15 · 21,310 in stock | View |
| LM321LVIDBVRG#C42396747HANSCHIP semiconductor · SOT-23-5 | HANSCHIP semiconductor | SOT-23-5 | 2,030 | ₹6.34 · 2,030 in stock | View | |
 | GM321DR#C49329010GREENMICRO · SOT-23-5 | GREENMICRO | SOT-23-5 | 5,420 | ₹4.42 · 5,420 in stock | View |
