HGSEMIDatasheet (PDF)

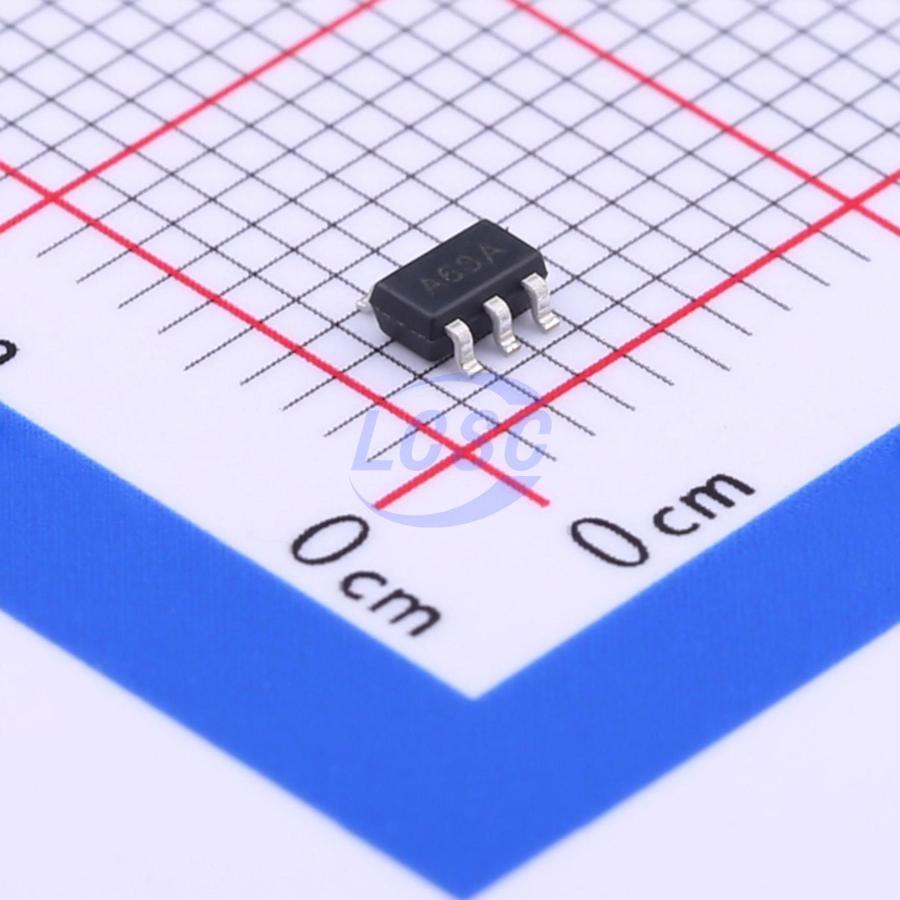

LM321M5X/TR
40mA 1 7mV 400V/ms 500nA 85dB 430uA 1MHz SOT-23-5 Instrumentation, Op Amps, Buffer Amps
SOT-23-5RoHSActive
Low Power Single Op Amp
- Manufacturer
- HGSEMI
- Manufacturer part #
- LM321M5X/TR
- Store part #
- C398143
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,270 in stock
#C398143
Stock & price checked 40 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.31 | ₹53.10 |
| 100+ | ₹4.21 | ₹421.00 |
| 300+ | ₹3.66 | ₹1,098.00 |
| 3,000+ | ₹3.45 | ₹10,350.00 |
| 6,000+ | ₹3.14 | ₹18,840.00 |
| 9,000+ | ₹2.96 | ₹26,640.00 |
10 × ₹5.31
₹53.10
excl. GST
₹62.66 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LM321M5X/TR
₹53.10 for 10 + GST
Specifications
- Output Current
- 40mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 7mV
- Slew Rate
- 400V/ms
- Input Offset Current(Ios)
- 5nA
- Operating Temperature
- -40℃~+85℃
- Ib - Input Bias Current
- 500nA
- Common Mode Rejection Ratio(CMRR)
- 85dB
- Quiescent Current
- 430uA
- Gain Bandwidth Product
- 1MHz
- Input Voltage Noise Density
- 40nV/√Hz@1kHz
- Single Supply
- 3V~30V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.045 g
Overview
The LM321 brings both performance and cost efficiency to low-power systems. It features a high unity-gain bandwidth, a specified slew rate of 0.4V/μs, and a quiescent current of only 430μA/amplifier (at 5V supply). The input common-mode range includes ground, enabling operation in both single-supply and dual-supply applications. It also drives large capacitive loads with ease. The LM321 is offered in an SOT23-3 package. Overall, the LM321 is a low-power, wide supply voltage range, high-performance op-amp that can be designed into a broad range of applications at an affordable price without consuming valuable board space.
Applications
- Charger
- Power Supply
- Industrial Control
- Instrumentation
- Desktop
Key features
- Gain bandwidth product 1MHz
- Low supply current 430 μA
- Low input bias current 45nA
- Wide supply voltage range +3V to +32V
- Stable operation under high capacitive loads
- Single-channel version of LM324
- SOT-23-5 package
- SC70-5 package
