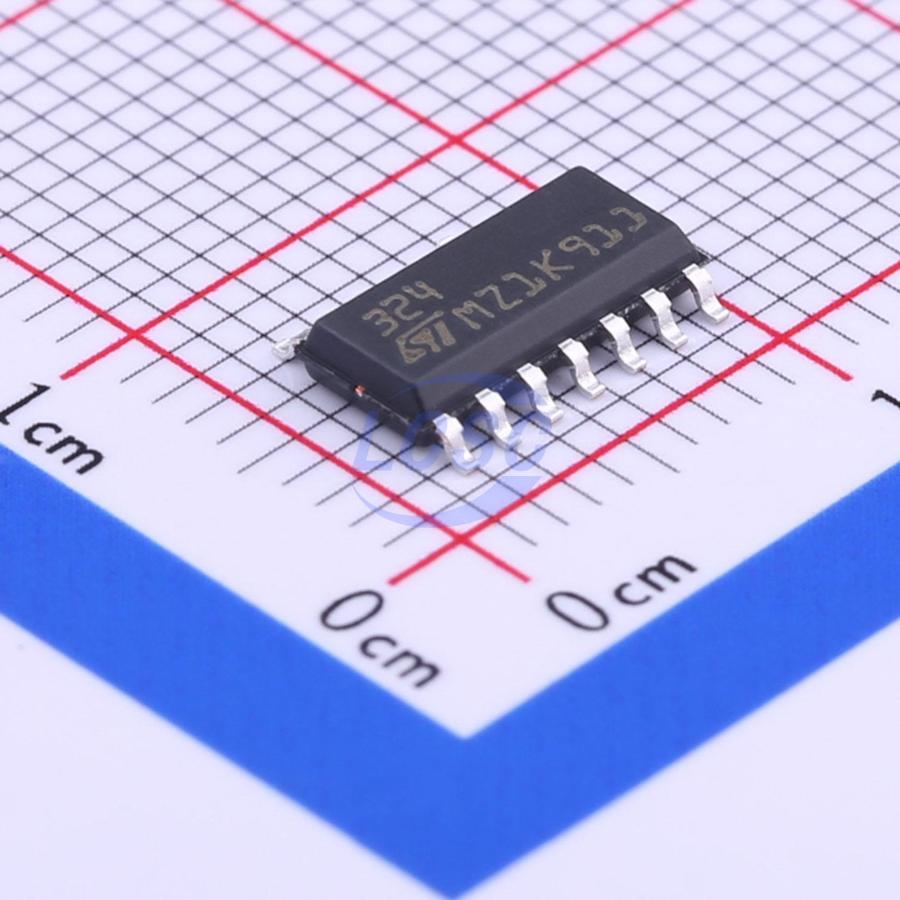

LM324DT

70mA 4 5mV 400V/ms 80dB 300nA 1.2mA 1.3MHz SOIC-14 Instrumentation, Op Amps, Buffer Amps RoHS

SOIC-14ROHS3 CompliantActive

Low power quad operational amplifiers

Manufacturer: ST
Manufacturer part #: LM324DT
Store part #: C71035
Package / case: SOIC-14
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,85,860 in stock

#C71035

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹22.21	₹111.05
50+	₹17.08	₹854.00
150+	₹14.57	₹2,185.50
500+	₹12.33	₹6,165.00
2,500+	₹11.71	₹29,275.00
5,000+	₹11.35	₹56,750.00

Quantity (min 5, multiples of 5)

5 × ₹22.21

₹111.05

excl. GST

₹131.04 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

LM324DT

₹111.05 for 5 + GST

Specifications

Output Current: 70mA
Number of Channels: 4
Vos - Input Offset Voltage: 5mV
Slew Rate: 400V/ms
Input Offset Current(Ios): 20nA
Operating Temperature: 0℃~+70℃
Common Mode Rejection Ratio(CMRR): 80dB
Ib - Input Bias Current: 300nA
Input Offset Voltage Drift(Vos TC): 30uV/℃
Quiescent Current: 1.2mA
Gain Bandwidth Product: 1.3MHz
Features: Built-in compensation
Input Voltage Noise Density: 40nV/√Hz@1kHz
Dual Supply: 1.5V~15V;-15V~-1.5V
Single Supply: 3V~30V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.314 g

Overview

The LM124, LM224x and LM324x consist of four independent, high gain operational amplifiers with frequency compensation implemented internally. They operate from a single power supply over a wide range of voltages. Operation from split power supplies is also possible and the low-power supply current drain is independent of the magnitude of the power supply voltage.

Applications

Automotive-grade applications
AC-coupled inverting amplifier
High input impedance adjustable-gain DC instrumentation amplifier
AC-coupled non-inverting amplifier
DC summing amplifier
Non-inverting DC gain circuit
Low-drift peak detector
Active bandpass filter
High input impedance DC differential amplifier

Key features

Wide gain bandwidth: 1.3 MHz
Input common mode voltage range includes ground
Large voltage gain: 100 dB
Very low supply current/amplifier: 375 μA
Low input bias current: 20 nA
Low input voltage: 3 mV max.
Low input offset current: 2 nA
Wide power supply range: Single supply: 3 V to 30 V Dual supplies: ±1.5 V to ±15 V

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
LM324M/TR#C194286HGSEMI · SOIC-14	HGSEMI	SOIC-14	26,810	₹13.36 · 26,810 in stock	View
LM324BDTR(XBLW)#C20612520XBLW · SOP-14	XBLW	SOP-14	1,185	₹12.58 · 1,185 in stock	View
LM324SR#C22447444COSINE · SOP-14	COSINE	SOP-14	3,120	₹15.61 · 3,120 in stock	View
COS324HV#C22447445COSINE · SOP-14	COSINE	SOP-14	1,935	₹13.93 · 1,935 in stock	View
HT324ARZ#C2898740HTCSEMI · SOP-14	HTCSEMI	SOP-14	765	₹18.77 · 765 in stock	View
