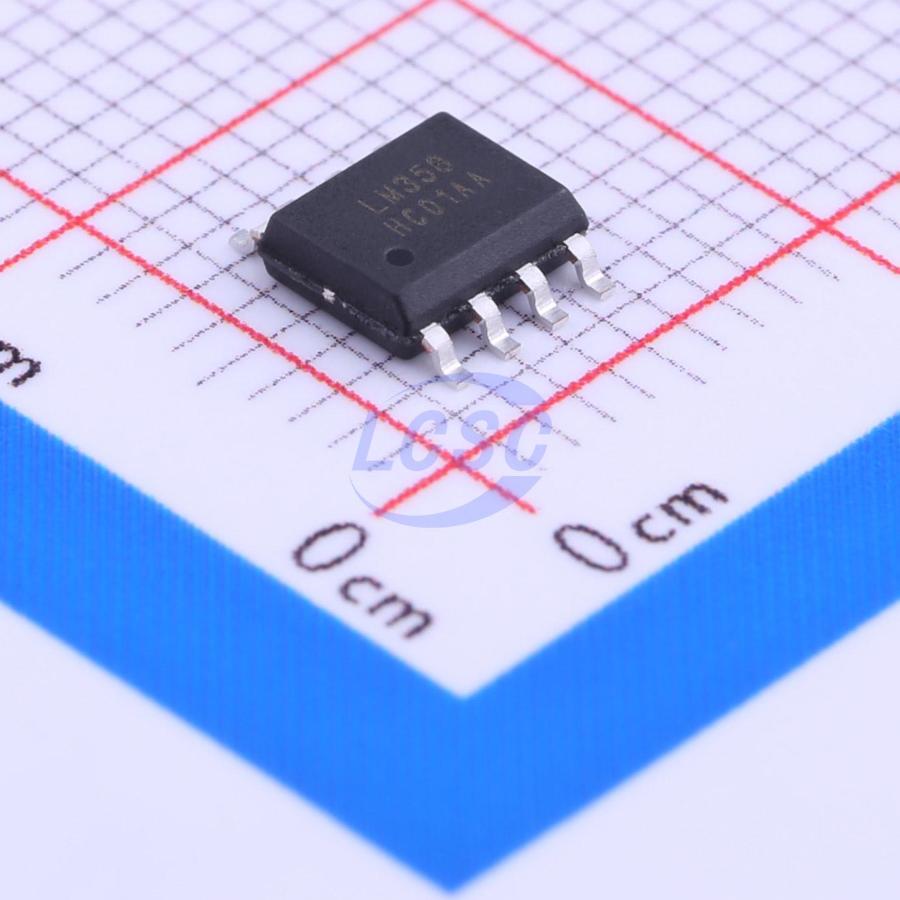

Gainsil

LM358-SR

60mA 2 5mV 200V/ms 70dB 45nA 1MHz 120uA SOP-8 Instrumentation, Op Amps, Buffer Amps

SOP-8RoHSActive

1MHz High Voltage Bipolar Opamp

Manufacturer: Gainsil
Manufacturer part #: LM358-SR
Store part #: C280707
Package / case: SOP-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,440 in stock

#C280707

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹12.52	₹62.60
50+	₹9.86	₹493.00
150+	₹8.53	₹1,279.50
500+	₹7.53	₹3,765.00
2,500+	₹6.73	₹16,825.00
4,000+	₹6.34	₹25,360.00

Quantity (min 5, multiples of 5)

5 × ₹12.52

₹62.60

excl. GST

₹73.87 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

LM358-SR

₹62.60 for 5 + GST

Specifications

Output Current: 60mA
Number of Channels: 2
Vos - Input Offset Voltage: 5mV
Slew Rate: 200V/ms
Input Offset Current(Ios): 5nA
Operating Temperature: -25℃~+85℃
Common Mode Rejection Ratio(CMRR): 70dB
Ib - Input Bias Current: 45nA
Input Offset Voltage Drift(Vos TC): 7uV/℃
Gain Bandwidth Product: 1MHz
Quiescent Current: 120uA
Features: Built-in compensation
Dual Supply: -14V~-1.5V;1.5V~14V
Single Supply: 3V~28V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.27 g

Overview

The LM321/358/324 family have a high gain-bandwidth product of 1MHz, a slew rate of 0.2V/μs, and a quiescent current of 120μμ amplifier at 5V. The LM321/358/324 family is designed to provide optimal performance in low voltage and low noise systems. The maximum input offset voltage is 5mV for LM321/358/324 family. The operating range is from 3V to 28V. The LM321 single is available in Green SOT-23-5 package. The LM358 Dual is available in Green SOP-8 and MSOP-8 packages. The LM324 Quad is available in Green SOP-14 package.

Applications

Walkie-Talkie
Battery Management Solution
Transducer Amplifiers
Summing Amplifiers
Multivibrators
Oscillators
Portable Systems

Key features

Single-Supply Operation from +3V~+28V
Dual-Supply Operation from ±1.5V~±14V
Gain-Bandwidth Product: 1MHz (Typ)
Low Input Bias Current: 45nA (Typ)
Low Offset Voltage: 5mV (Max)
Quiescent Current: 120μA per Amplifier (Typ)
Operating Temperature: -25°C~+85°C
Small Package: LM321 Available in SOT23-5 Package, LM358 Available in SOP-8 and MSOP-8 Packages, LM324 Available in SOP-14 Package
