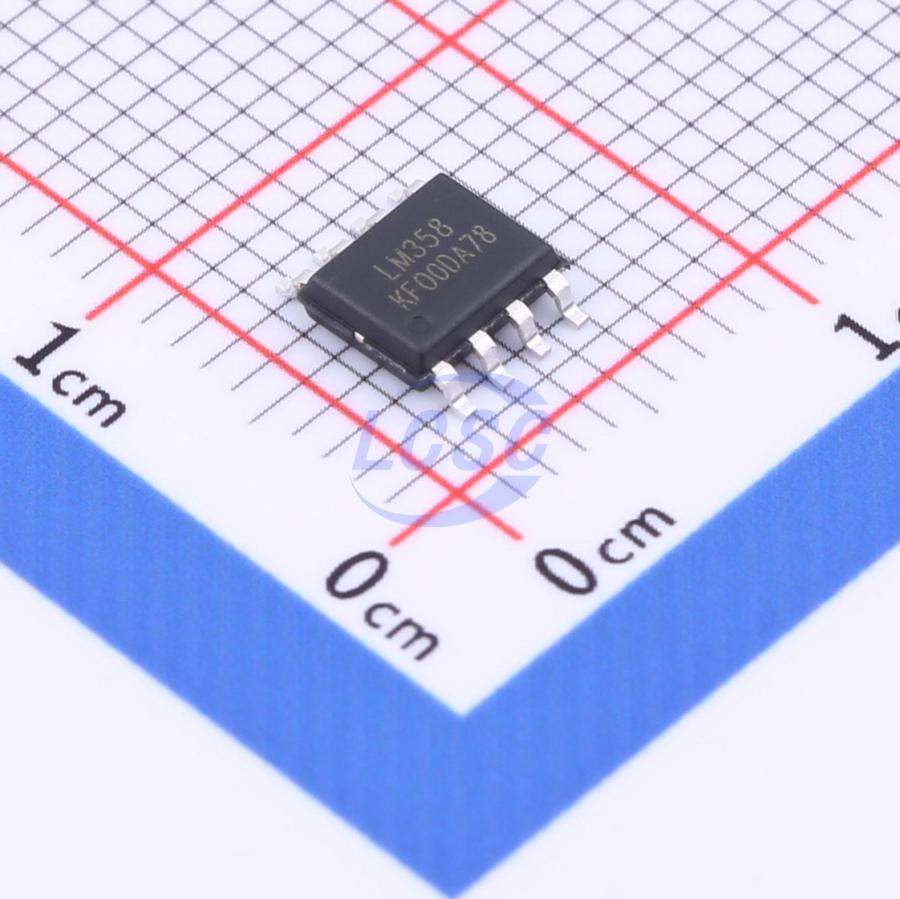

Gainsil

LM358H-SR

40mA 2 5mV 200V/ms 70dB 20nA 250uA 1MHz SOP-8 Instrumentation, Op Amps, Buffer Amps

SOP-8RoHSActive

1MHZ High Voltage Bipolar Opamp

Manufacturer: Gainsil
Manufacturer part #: LM358H-SR
Store part #: C2840814
Package / case: SOP-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,095 in stock

#C2840814

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹17.94	₹89.70
50+	₹14.29	₹714.50
150+	₹12.46	₹1,869.00
500+	₹11.10	₹5,550.00
2,500+	₹9.49	₹23,725.00
4,000+	₹8.94	₹35,760.00

Quantity (min 5, multiples of 5)

5 × ₹17.94

₹89.70

excl. GST

₹105.85 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

LM358H-SR

₹89.70 for 5 + GST

Specifications

Output Current: 40mA
Number of Channels: 2
Vos - Input Offset Voltage: 5mV
Slew Rate: 200V/ms
Input Offset Current(Ios): 5nA
Operating Temperature: -25℃~+85℃
Common Mode Rejection Ratio(CMRR): 70dB
Ib - Input Bias Current: 20nA
Input Offset Voltage Drift(Vos TC): 7uV/℃
Quiescent Current: 250uA
Gain Bandwidth Product: 1MHz
Features: Built-in compensation
Dual Supply: -18V~-1.5V;1.5V~18V
Single Supply: 3V~36V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.152 g

Overview

The LM321H/358H/324H family have a high gain-bandwidth product of 1MHz, a slew rate of 0.2V/μs, and a quiescent current of 250μμ amplifier at 5V. The LM321H/358H/324H family is designed to provide optimal performance in low voltage and low noise systems. The maximum input offset voltage is 5mV for LM321H/358H/324H family. The operating range is from 3V to 36V. The LM321H single is available in Green SOT-23-5 package. The LM358H Dual is available in Green SOP-8 and MSOP-8 packages. The LM324H Quad is available in Green SOP-14 package.

Applications

Walkie-Talkie
Battery Management Solution
Transducer Amplifiers
Summing Amplifiers
Multivibrators
Oscillators
Switching Telephone
Portable Systems

Key features

Single-Supply Operation from +3V ~ +36V
Dual-Supply Operation from ±1.5V ~ ±18V
Gain-Bandwidth Product: 1MHz (Typ)
Low Input Bias Current: 20nA (Typ)
Low Offset Voltage: 5mV (Max)
Quiescent Current: 250μA per Amplifier (Typ)
Large Output Voltage Swing: 0V to Vcc - 1.5V
Operating Temperature: -25°C ~ +85°C
Small Package: LM321H Available in SOT23-5 Package, LM358H Available in SOP-8 and MSOP-8 Packages, LM324H Available in SOP-14 Package

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
GS2904-SR#C6283800Gainsil · SOP-8	Gainsil	SOP-8	120	₹23.60 · 120 in stock	View
LM358-SR#C280707Gainsil · SOP-8	Gainsil	SOP-8	2,440	₹12.52 · 2,440 in stock	View
GS358B-SR#C5179654Gainsil · SOP-8	Gainsil	SOP-8	3,560	₹21.50 · 3,560 in stock	View
GS4558-SR#C2927682Gainsil · SOP-8	Gainsil	SOP-8	2,310	₹18.95 · 2,310 in stock	View
GS8622-SR#C605416Gainsil · SOP-8	Gainsil	SOP-8	3,985	₹33.19 · 3,985 in stock	View
