HGSEMIDatasheet (PDF)

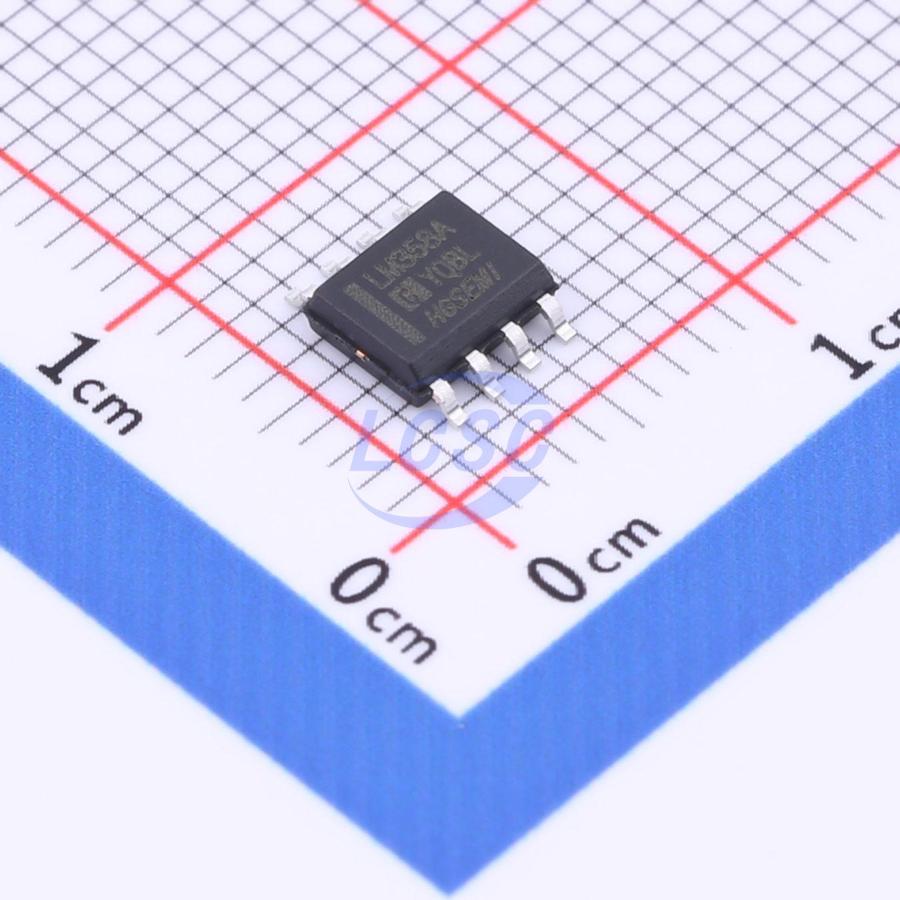

LM358AM/TR
Standard (General Purpose) Amplifier 2 Circuit SOP-8
SOP-8RoHSActive
Dual Operational Amplifiers
- Manufacturer
- HGSEMI
- Manufacturer part #
- LM358AM/TR
- Store part #
- C2683129
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,330 in stock
#C2683129
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.29 | ₹92.90 |
| 100+ | ₹7.41 | ₹741.00 |
| 300+ | ₹6.47 | ₹1,941.00 |
| 2,500+ | ₹5.86 | ₹14,650.00 |
| 5,000+ | ₹5.29 | ₹26,450.00 |
| 10,000+ | ₹5.01 | ₹50,100.00 |
10 × ₹9.29
₹92.90
excl. GST
₹109.62 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM358AM/TR
₹92.90 for 10 + GST
Specifications
- Output Current
- 100mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 9mV
- Slew Rate
- 700V/ms
- Input Offset Current(Ios)
- 150nA
- Operating Temperature
- -40℃~+85℃
- Ib - Input Bias Current
- 500nA
- Common Mode Rejection Ratio(CMRR)
- 80dB
- Input Offset Voltage Drift(Vos TC)
- 7uV/℃
- Quiescent Current
- 1.2mA
- Gain Bandwidth Product
- 700kHz
- Dual Supply
- -18V~18V
- Single Supply
- 2.7V~36V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.274 g
Overview
The LM258A/LM358A is a dual low-power differential op-amp that operates from either single or dual supplies. It features high open-loop gain, internal compensation, wide common-mode range, excellent temperature stability, and output short-circuit protection. Widely used in sensor amplification circuits, DC amplifier modules, audio amplification circuits, and general-purpose op-amp applications.
Applications
- Sensor signal amplifier
- DC gain
- Audio amplifier
- Other applications
Key features
- Internal frequency compensation
- Short-circuit protection
- Low power consumption: typical 0.5mA @ VCC=5V
- Package: DIP-8, SOP-8, MSOP-8
- Single-supply voltage range: 3V~36V
- Dual-supply voltage range: ±18V
- Unity-gain bandwidth: up to 1.2MHz
