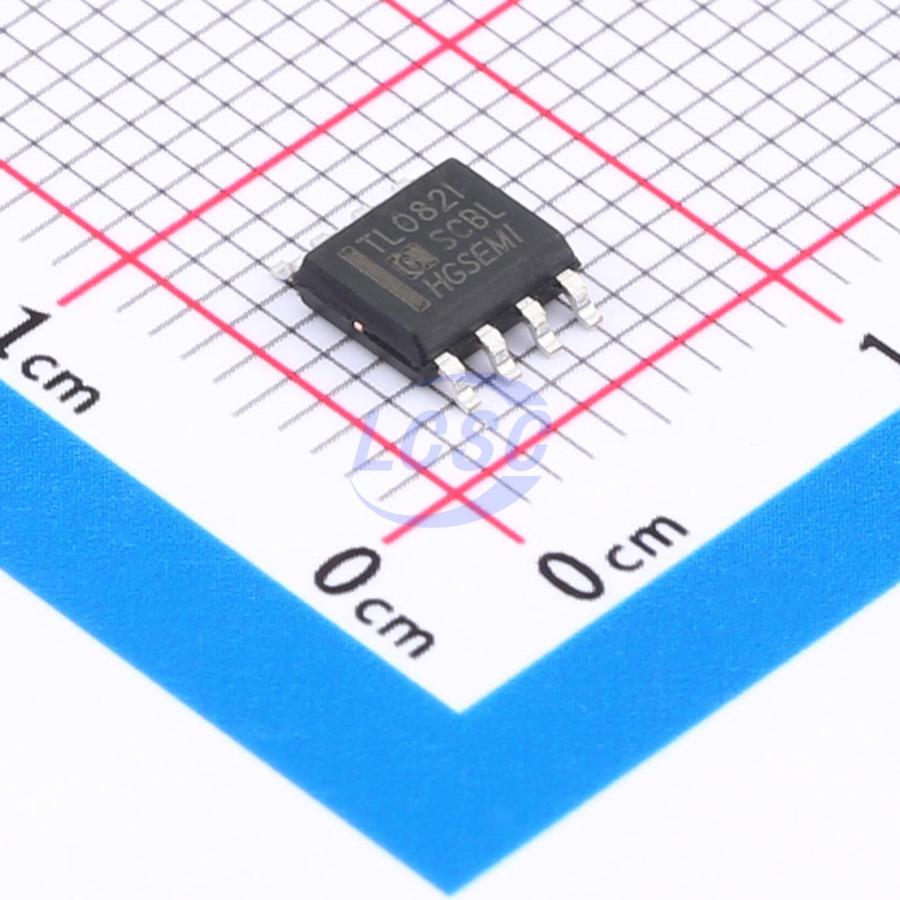

TL082IM/TR
Standard (General Purpose) Amplifier 2 Circuit SOP-8
SOP-8RoHSActive
General-purpose dual operational amplifier with J-FET input
- Manufacturer
- HGSEMI
- Manufacturer part #
- TL082IM/TR
- Store part #
- C19193428
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,720 in stock
#C19193428
Stock & price checked 16 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.29 | ₹71.45 |
| 50+ | ₹11.26 | ₹563.00 |
| 150+ | ₹9.75 | ₹1,462.50 |
| 500+ | ₹8.61 | ₹4,305.00 |
| 2,500+ | ₹7.70 | ₹19,250.00 |
| 5,000+ | ₹7.25 | ₹36,250.00 |
5 × ₹14.29
₹71.45
excl. GST
₹84.31 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TL082IM/TR
₹71.45 for 5 + GST
Specifications
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 3mV
- Slew Rate
- 13V/us
- Input Offset Current(Ios)
- 1.5nA
- Operating Temperature
- -40℃~+85℃
- Common Mode Rejection Ratio(CMRR)
- 85dB
- Ib - Input Bias Current
- 2.5nA
- Quiescent Current
- 1.4mA
- Gain Bandwidth Product
- 3MHz
- Dual Supply
- -18V~18V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.22 g
Overview
The TL082 is a high-speed J-FET input dual operational amplifier constructed with high-voltage J-FETs and bipolar transistors. It features a high slew rate, low input bias current and offset current, and very low offset voltage temperature coefficient. Operating temperature ranges are 0°C to 70°C for TL082C and -40°C to 85°C for TL082I. The TL082 is available in DIP-8, SOP-8, and MSOP-8 packages.
Key features
- Low power consumption
- Wide common-mode and differential-mode input voltage range
- Low input bias and offset current
- Output short-circuit current protection
- High input impedance
- High slew rate
- High gain-bandwidth product, up to 4MHz
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TL082CM/TR#C7432099HGSEMI · SOP-8 | HGSEMI | SOP-8 | 995 | ₹13.89 · 995 in stock | View |
 | MCP622M/TR-HG#C54800092HGSEMI · SOP-8 | HGSEMI | SOP-8 | 2,475 | ₹66.51 · 2,475 in stock | View |
 | TSV7722M/TR-HG#C54800093HGSEMI · SOP-8 | HGSEMI | SOP-8 | 2,470 | ₹74.18 · 2,470 in stock | View |
 | TSV772M/TR-HG#C54800094HGSEMI · SOP-8 | HGSEMI | SOP-8 | 2,495 | ₹71.63 · 2,495 in stock | View |
 | OPA2322M/TR-HG#C54814879HGSEMI · SOP-8 | HGSEMI | SOP-8 | 2,424 | ₹66.51 · 2,424 in stock | View |
