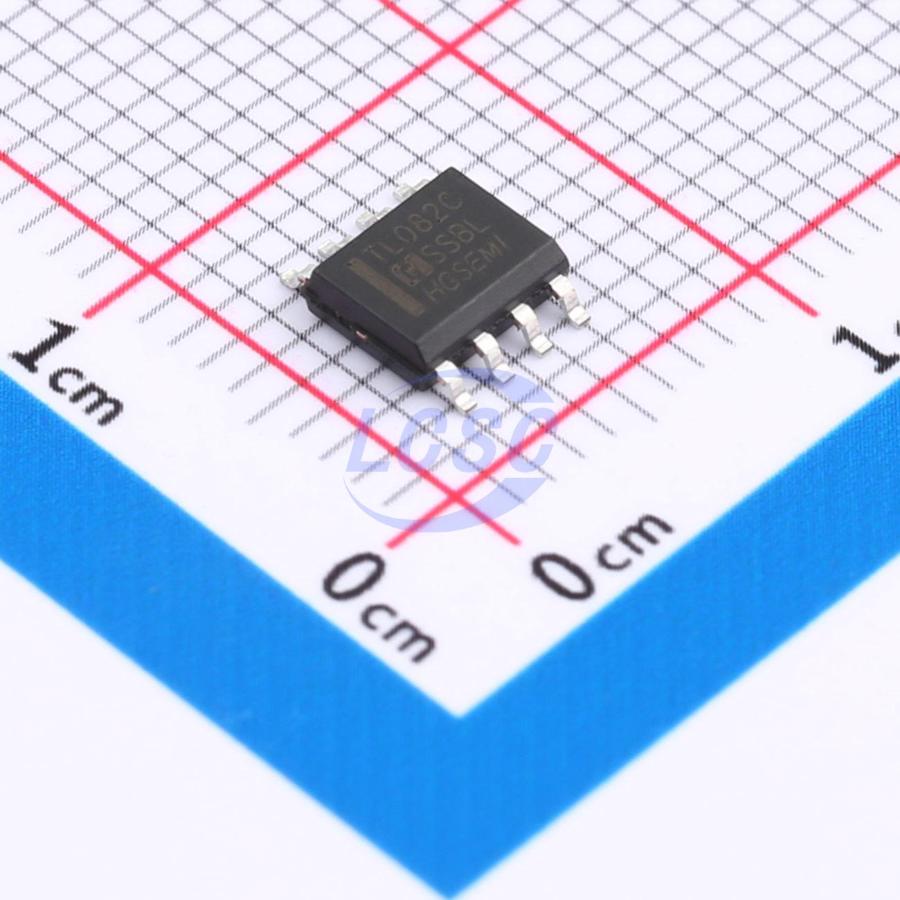

TL082CM/TR
Standard (General Purpose) Amplifier 2 Circuit SOP-8
SOP-8RoHSActive
General-purpose dual operational amplifier with J-FET input
- Manufacturer
- HGSEMI
- Manufacturer part #
- TL082CM/TR
- Store part #
- C7432099
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
195 in stock
#C7432099
Stock & price checked 24 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.89 | ₹69.45 |
| 50+ | ₹10.97 | ₹548.50 |
| 150+ | ₹9.50 | ₹1,425.00 |
| 500+ | ₹8.41 | ₹4,205.00 |
| 2,500+ | ₹7.53 | ₹18,825.00 |
| 5,000+ | ₹7.09 | ₹35,450.00 |
5 × ₹13.89
₹69.45
excl. GST
₹81.95 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TL082CM/TR
₹69.45 for 5 + GST
Specifications
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 6mV
- Slew Rate
- 13V/us
- Input Offset Current(Ios)
- 1.5nA
- Operating Temperature
- 0℃~+70℃
- Common Mode Rejection Ratio(CMRR)
- 85dB
- Ib - Input Bias Current
- 2.5nA
- Quiescent Current
- 1.4mA
- Gain Bandwidth Product
- 3MHz
- Dual Supply
- -18V~18V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.238 g
Overview
The TL082 is a high-speed J-FET input dual operational amplifier constructed with high-voltage J-FETs and bipolar transistors. It features a high slew rate, low input bias current and offset current, and a very low temperature coefficient of offset voltage. Operating temperature ranges are 0°C to 70°C for TL082C and -40°C to 85°C for TL082I. The TL082 is available in DIP8, SOP8, and MSOP8 packages.
Key features
- Low power consumption
- Wide common-mode and differential input voltage range
- Low input bias and offset current
- Output short-circuit protection
- High input impedance
- High slew rate
- High gain-bandwidth product, up to 4MHz
