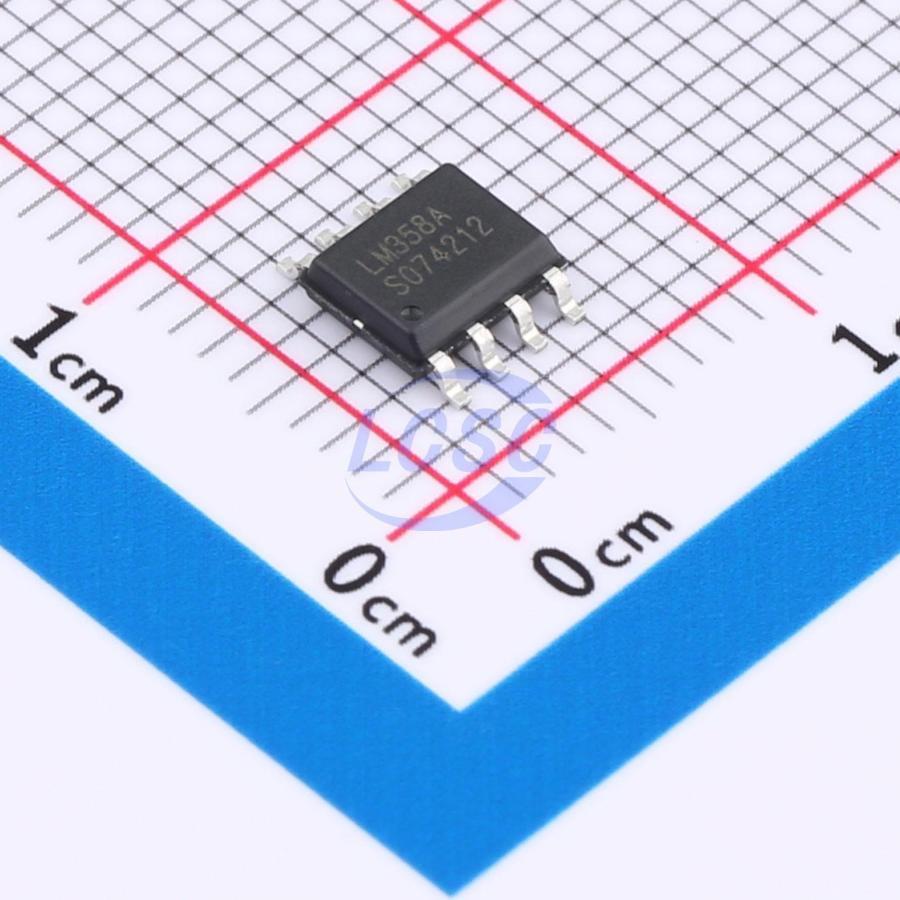

LM358AXK
60mA 2 2.5mV 500V/ms 95dB 50nA 2.4mA 1.4MHz SOP-8 Instrumentation, Op Amps, Buffer Amps
SOP-8RoHSActive
36V, 1.2MHz Dual Operational Amplifier
- Manufacturer
- RUNIC
- Manufacturer part #
- LM358AXK
- Store part #
- C42459433
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,720 in stock
#C42459433
Stock & price checked 16 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.95 | ₹64.75 |
| 50+ | ₹10.35 | ₹517.50 |
| 150+ | ₹9.05 | ₹1,357.50 |
| 500+ | ₹8.07 | ₹4,035.00 |
| 2,500+ | ₹7.29 | ₹18,225.00 |
| 4,000+ | ₹6.89 | ₹27,560.00 |
5 × ₹12.95
₹64.75
excl. GST
₹76.41 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
LM358AXK
₹64.75 for 5 + GST
Specifications
- Output Current
- 60mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 2.5mV
- Slew Rate
- 500V/ms
- Input Offset Current(Ios)
- 5nA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 95dB
- Ib - Input Bias Current
- 50nA
- Input Offset Voltage Drift(Vos TC)
- 15uV/℃
- Quiescent Current
- 2.4mA
- Gain Bandwidth Product
- 1.4MHz
- Features
- Built-in compensation
- Input Voltage Noise Density
- 38nV/√Hz@1kHz
- Dual Supply
- -18V~-1.5V;1.5V~18V
- Single Supply
- 3V~36V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.151 g
Overview
The LM358A device offer high voltage (36V) operation and low input offset voltage, as well as excellent speed/power consumption ratio, providing an excellent bandwidth (1.2MHz) and slew rate of 0.5V/μs. The opamp is unity gain stable and feature an low input bias current. The input can operate normally within of the negative power rail to 1.5V below of the positive power rail. The LM358A operational amplifiers is specified at the full temperature range of -40°C to +125°C under single power supplies of 3V to 36V or dual power supplies of ±1.5V to ±18V.
Applications
- SENSORS
- PHOTODIODE AMPLIFICATION
- ACTIVE FILTER
- TEST EQUIPMENT DRIVING A/D CONVERTERS
Key features
- Unity-Gain Bandwith: 1.2MHz
- Low Input Offset Voltage: ±2.5mV (Max at 25°C)
- Quiescent Current: 1.3mA
- Common-Mode Input Voltage Range Include Ground
- Supply Range: 3V to 36V
- SPECIFIED UP TO +125°C
- Micro SIZE PACKAGES: SOP8, TSSOP8
