RUNICDatasheet (PDF)

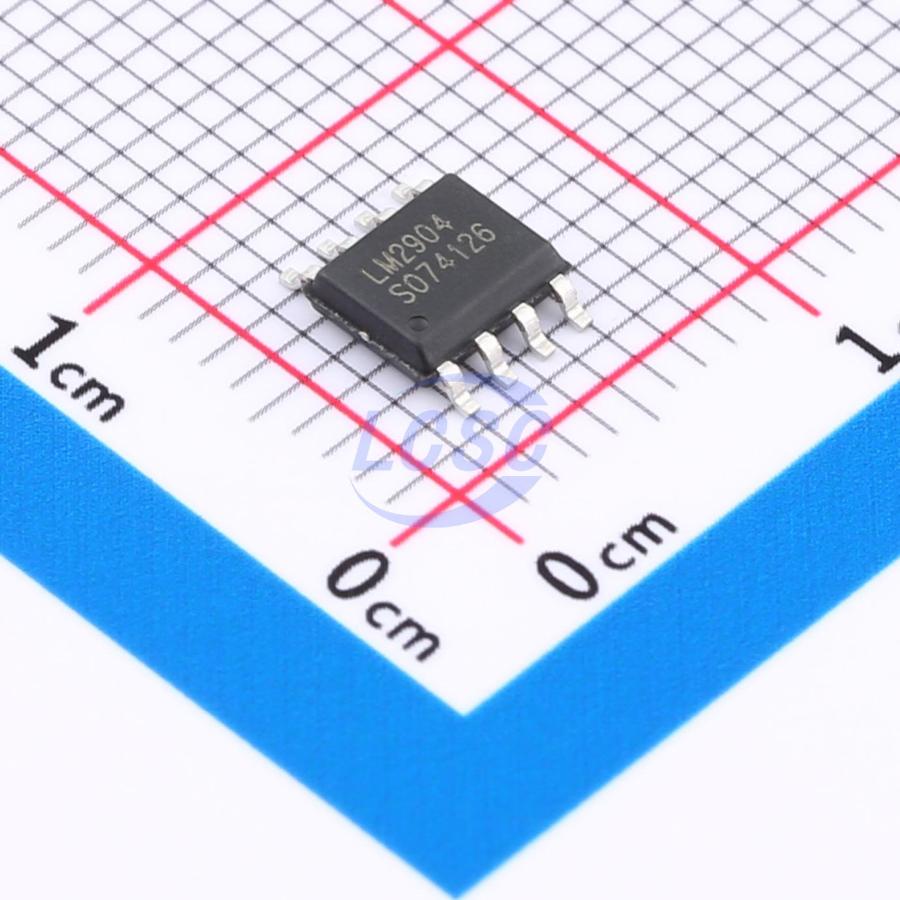

LM2904XK-G
60mA 2 2.5mV 500V/ms 15nA 100dB 1.3mA 1.2MHz SOP-8 Instrumentation, Op Amps, Buffer Amps
SOP-8RoHSActive
Dual Operational Amplifier
- Manufacturer
- RUNIC
- Manufacturer part #
- LM2904XK-G
- Store part #
- C19269191
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,025 in stock
#C19269191
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹21.58 | ₹107.90 |
| 50+ | ₹16.11 | ₹805.50 |
| 150+ | ₹13.77 | ₹2,065.50 |
| 500+ | ₹10.85 | ₹5,425.00 |
5 × ₹21.58
₹107.90
excl. GST
₹127.32 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
LM2904XK-G
₹107.90 for 5 + GST
Specifications
- Output Current
- 60mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 2.5mV
- Slew Rate
- 500V/ms
- Input Offset Current(Ios)
- 4nA
- Operating Temperature
- -40℃~+125℃
- Ib - Input Bias Current
- 15nA
- Common Mode Rejection Ratio(CMRR)
- 100dB
- Input Offset Voltage Drift(Vos TC)
- 8uV/℃
- Quiescent Current
- 1.3mA
- Gain Bandwidth Product
- 1.2MHz
- Features
- Built-in compensation
- Input Voltage Noise Density
- 38nV/√Hz@1kHz
- Dual Supply
- -18V~-1.5V;1.5V~18V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.118 g
Overview
The LM2904 device offer high voltage (36V) operation and low input offset voltage, as well as excellent speed/power consumption ratio, providing an excellent bandwidth (1.2MHz) and slew rate of 0.5V/μs. The opamp is unity gain stable and feature an low input bias current. The input can operate normally within of the negative power rail to 1.5V below of the positive power rail. The LM2904 operational amplifiers is specified at the full temperature range of -40°C to +125°C under single power supplies of 3V to 36V or dual power supplies of ±1.5V to ±18V.
Applications
- SENSORS
- PHOTODIODE AMPLIFICATION
- ACTIVE FILTER
- TEST EQUIPMENT DRIVING A/D CONVERTERS
Key features
- Unity-Gain Bandwith: 1.2MHz
- Low Input Offset Voltage: ±2.5mV (Max at 25°C)
- Quiescent Current: 1.3mA
- Common-Mode Input Voltage Range Include Ground
- Supply Range: 3V to 36V
- SPECIFIED UP TO +125°C
- Micro SIZE PACKAGES: SOIC-8(SOP8), MSOP-8 and TSSOP-8
