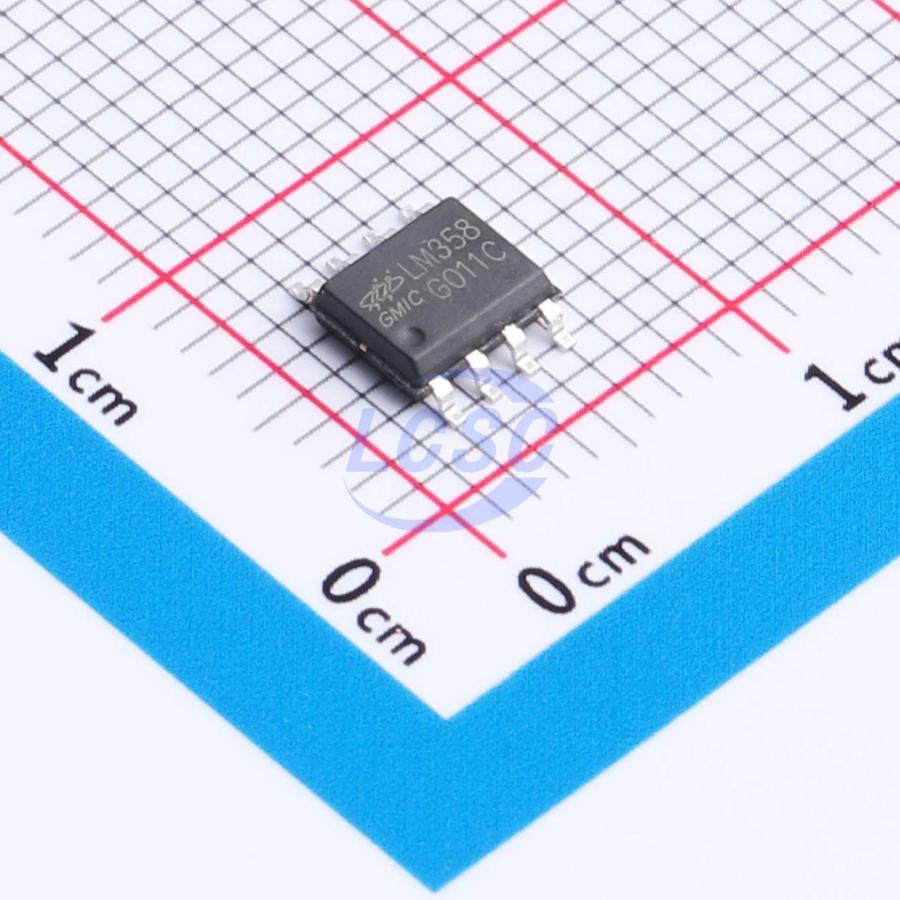

LM358DR91M
100mA 2 2mV 600V/ms 85dB 45nA 1MHz 500uA SOP-8 Instrumentation, Op Amps, Buffer Amps
SOP-8RoHSActive
- Manufacturer
- GREENMICRO
- Manufacturer part #
- LM358DR91M
- Store part #
- C51026328
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
58,190 in stock
#C51026328
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹3.84 | ₹38.40 |
| 100+ | ₹3.37 | ₹337.00 |
| 300+ | ₹3.14 | ₹942.00 |
| 2,500+ | ₹2.95 | ₹7,375.00 |
| 5,000+ | ₹2.82 | ₹14,100.00 |
| 10,000+ | ₹2.74 | ₹27,400.00 |
10 × ₹3.84
₹38.40
excl. GST
₹45.31 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM358DR91M
₹38.40 for 10 + GST
Specifications
- Output Current
- 100mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 2mV
- Slew Rate
- 600V/ms
- Input Offset Current(Ios)
- 3nA
- Operating Temperature
- 0℃~+70℃
- Common Mode Rejection Ratio(CMRR)
- 85dB
- Ib - Input Bias Current
- 45nA
- Gain Bandwidth Product
- 1MHz
- Quiescent Current
- 500uA
- Features
- Built-in compensation
- Dual Supply
- -16V~-1.5V;1.5V~16V
- Single Supply
- 3V~32V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.19 g
Overview
The LM358 contains two independent, high-gain, internally frequency-compensated dual op-amps, suitable for single-supply applications across a wide supply voltage range, with dual-supply operation also supported. Under recommended operating conditions, the supply current is independent of the supply voltage. Applications include transducer amplifiers, DC gain blocks, audio amplifiers, industrial controls, DC gain components, and all other op-amp applications where single-supply operation is desired.
Key features
- Built-in frequency compensation
- High DC voltage gain (approx. 100dB)
- Unity-gain bandwidth (approx. 1MHz)
- Wide supply voltage range: single supply (3~32V); dual supply (±1.5~±16V)
- Low quiescent current 0.5mA, suitable for battery-powered applications
- Low input bias current 45nA
- Low input offset voltage 2mV
- Wide common-mode input voltage range, near ground level
- Wide differential input voltage range, equal to supply voltage range
- Large output voltage swing (0 to Vcc-1.5V)
- Package: DIP8, SOP8
