GREENMICRODatasheet (PDF)

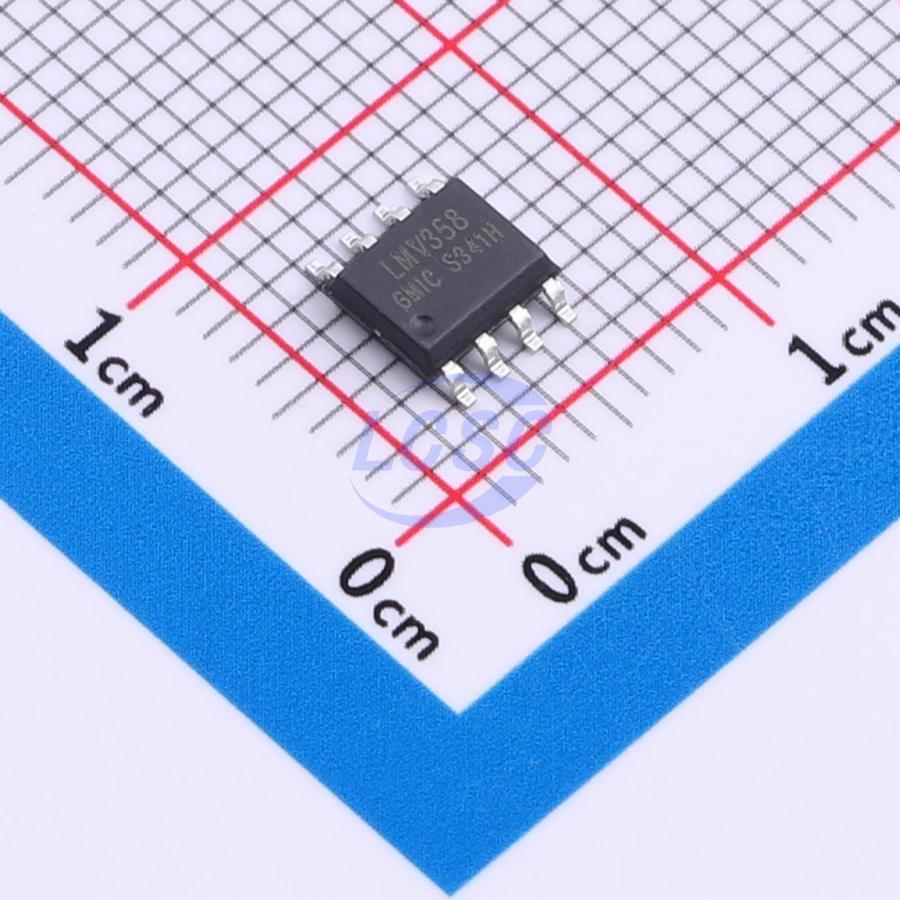

LMV358IBS
30mA 2 4.5mV 500V/ms 70dB 10pA 45uA 1MHz Rail-to-Rail Input, Rail-to-Rail Output SOP-8 Instrumentation, Op Amps, Buffer Amps
SOP-8RoHSActive
- Manufacturer
- GREENMICRO
- Manufacturer part #
- LMV358IBS
- Store part #
- C52204657
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,850 in stock
#C52204657
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.93 | ₹69.30 |
| 100+ | ₹5.50 | ₹550.00 |
| 300+ | ₹4.79 | ₹1,437.00 |
| 2,500+ | ₹4.26 | ₹10,650.00 |
| 5,000+ | ₹3.84 | ₹19,200.00 |
| 10,000+ | ₹3.63 | ₹36,300.00 |
10 × ₹6.93
₹69.30
excl. GST
₹81.77 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LMV358IBS
₹69.30 for 10 + GST
Specifications
- Output Current
- 30mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 4.5mV
- Slew Rate
- 500V/ms
- Input Offset Current(Ios)
- 1pA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 70dB
- Ib - Input Bias Current
- 10pA
- Input Offset Voltage Drift(Vos TC)
- 2.7uV/℃
- Quiescent Current
- 45uA
- Gain Bandwidth Product
- 1MHz
- Input Voltage Noise Density
- 27nV/√Hz@1kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.32 g
Overview
The LMV358 is a low-voltage, low-power op-amp. Each channel draws 60μA quiescent current and operates over a 2.1V to 5.5V supply range. The device features a wide common-mode voltage range and large output voltage swing. Designed in CMOS technology, it delivers 1.0MHz gain bandwidth and 2.0V/μs slew rate. These characteristics make it well-suited for portable electronics applications. Available in SOP8, MSOP8, and TSSOP8 packages.
Applications
- Portable electronic products
Key features
- High DC equivalent input impedance
- Quiescent current per channel: 60μA
- Gain bandwidth product: 1.0MHz
- Input voltage range: -0.1V ~ +5.6V (at supply voltage of 5.5V)
- Ultra-low input bias current: 10pA
- Supply voltage range: +2.1V ~ +5.5V
- Operating temperature range: -40℃ ~ +125℃
- Low power consumption
- Rail-to-rail output
- Typical input offset voltage: 0.8mV
