TIDatasheet (PDF)

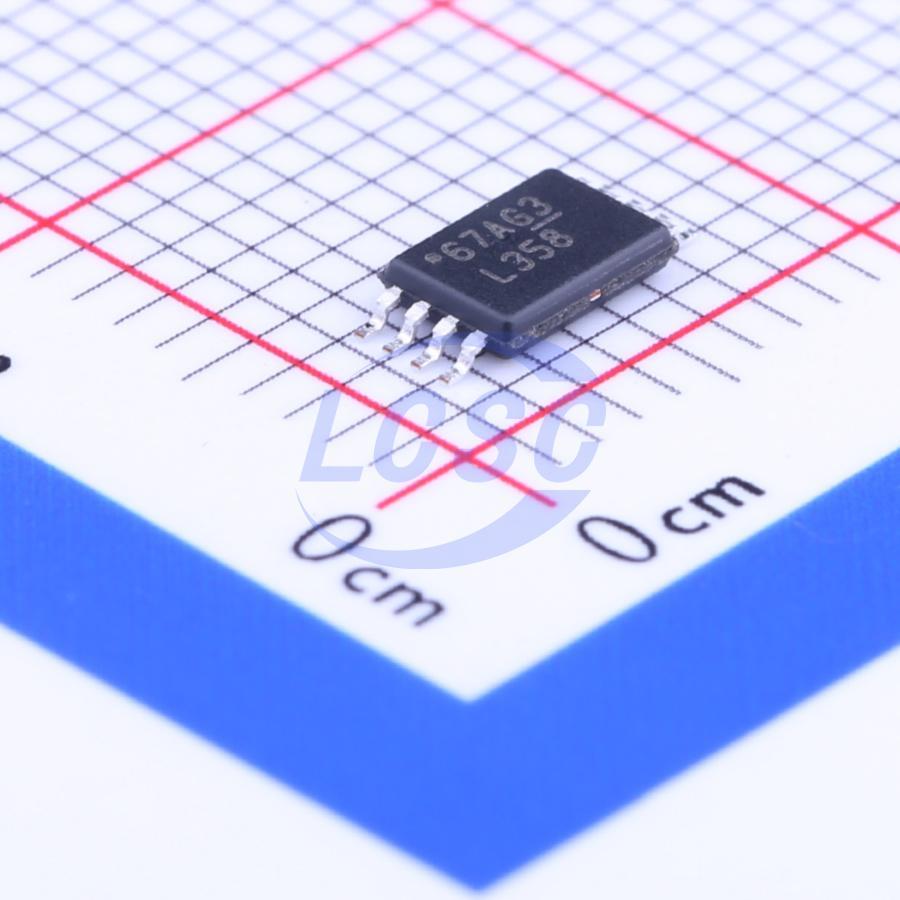

LM358PWR
30mA 2 3mV 300V/ms 80dB 250nA 600uA 700kHz TSSOP-8 Instrumentation, Op Amps, Buffer Amps RoHS
TSSOP-8ROHS3 CompliantActive
DUAL OPERATIONAL AMPLIFIERS
- Manufacturer
- TI
- Manufacturer part #
- LM358PWR
- Store part #
- C7951
- Package / case
- TSSOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
38,750 in stock
#C7951
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹20.60 | ₹103.00 |
| 50+ | ₹16.47 | ₹823.50 |
| 150+ | ₹14.41 | ₹2,161.50 |
| 500+ | ₹12.86 | ₹6,430.00 |
| 2,000+ | ₹10.15 | ₹20,300.00 |
| 4,000+ | ₹9.53 | ₹38,120.00 |
5 × ₹20.60
₹103.00
excl. GST
₹121.54 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
LM358PWR
₹103.00 for 5 + GST
Specifications
- Output Current
- 30mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 3mV
- Slew Rate
- 300V/ms
- Input Offset Current(Ios)
- 50nA
- Operating Temperature
- 0℃~+70℃
- Common Mode Rejection Ratio(CMRR)
- 80dB
- Ib - Input Bias Current
- 250nA
- Input Offset Voltage Drift(Vos TC)
- 7uV/℃
- Quiescent Current
- 600uA
- Gain Bandwidth Product
- 700kHz
- Features
- EMI filtering/RF suppression
- Input Voltage Noise Density
- 40nV/√Hz@1kHz
- Dual Supply
- -16V~-1.5V;1.5V~16V
- Single Supply
- 3V~30V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.179 g
Overview
These devices consist of two independent, high-gain, frequency-compensated operational amplifiers designed to operate from a single supply over a wide range of voltages. Operation from split supplies also is possible if the difference between the two supplies is 3 V to 32 V (3 V to 26 V for the LM2904), and VCC is at least 1.5 V more positive than the input common-mode voltage. The low supply-current drain is independent of the magnitude of the supply voltage.
Applications
- transducer amplifiers
- dc amplification blocks
- all the conventional operational amplifier circuits that now can be implemented more easily in single-supply-voltage systems
Key features
- Wide Supply Range:
- Single Supply ... 3 V to 32 V (26 V for LM2904)
- or Dual Supplies ... ±1.5 V to ±16 V (±13 V for LM2904)
- Low Supply-Current Drain, Independent of Supply Voltage ... 0.7 mA Typ
- Common-Mode Input Voltage Range Includes Ground, Allowing Direct Sensing Near Ground
- Low Input Bias and Offset Parameters:
- Input Offset Voltage ... 3 mV Typ (A Versions ... 2 mV Typ)
- Input Offset Current ... 2 nA Typ
- Input Bias Current ... 20 nA Typ (A Versions ... 15 nA Typ)
- Differential Input Voltage Range Equal to Maximum-Rated Supply Voltage ... 32 V (26 V for LM2904)
- Open-Loop Differential Voltage Amplification ... 100 V/mV Typ
- Internal Frequency Compensation
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LM358TDTR(XBLW)#C20612524XBLW · TSSOP-8 | XBLW | TSSOP-8 | 2,395 | ₹14.67 · 2,395 in stock | View |
 | LM358BTDTR(XBLW)#C41361384XBLW · TSSOP-8 | XBLW | TSSOP-8 | 1,815 | ₹11.74 · 1,815 in stock | View |
 | LM358PWR-TUDI#C55098833Tudi · TSSOP-8 | Tudi | TSSOP-8 | 5,000 | ₹14.18 · 5,000 in stock | View |
| LM2904FVT-E2#C4368225ROHM · TSSOP-8-B | ROHM | TSSOP-8-B | 50 | ₹101.14 · 50 in stock | View | |
 | LM2904VQPWR#C2058896TI · TSSOP-8 | TI | TSSOP-8 | 2,000 | ₹56.00 · 2,000 in stock | View |
