IDCHIP

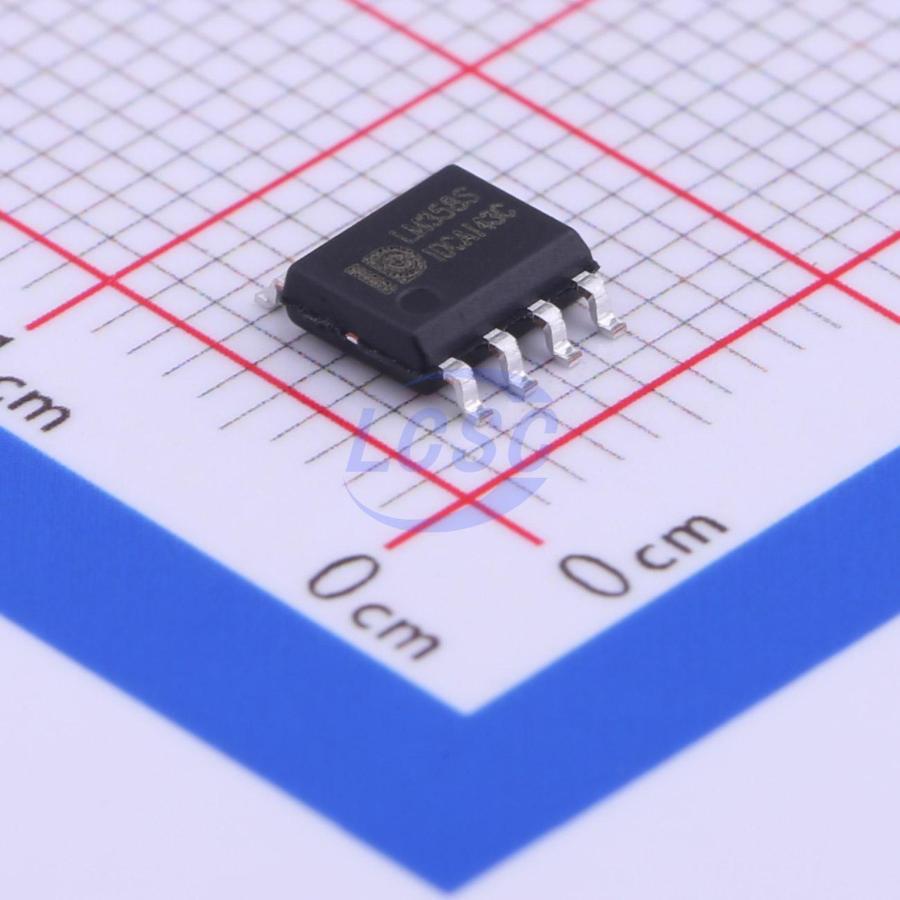

LM358S

Standard (General Purpose) Amplifier 2 Circuit SOP-8

SOP-8ROHS CompliantActive

1MHz high-voltage bipolar dual operational amplifier

Manufacturer: IDCHIP
Manufacturer part #: LM358S
Store part #: C329454
Package / case: SOP-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

22,310 in stock

#C329454

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
10+	₹6.27	₹62.70
100+	₹5.03	₹503.00
300+	₹4.39	₹1,317.00
1,000+	₹3.92	₹3,920.00
4,000+	₹3.20	₹12,800.00
8,000+	₹3.02	₹24,160.00

Quantity (min 10, multiples of 10)

10 × ₹6.27

₹62.70

excl. GST

₹73.99 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

LM358S

₹62.70 for 10 + GST

Specifications

Output Current: 20mA
Number of Channels: 2
Vos - Input Offset Voltage: 6mV
Slew Rate: 200V/ms
Input Offset Current(Ios): 5nA
Operating Temperature: 0℃~+70℃
Ib - Input Bias Current: 45nA
Common Mode Rejection Ratio(CMRR): 80dB
Input Offset Voltage Drift(Vos TC): 7uV/℃
Quiescent Current: 1.18mA
Gain Bandwidth Product: 1MHz
Features: Built-in compensation
Input Voltage Noise Density: 50nV/√Hz@1kHz
Dual Supply: -1.5V~15V
Single Supply: 3V~30V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.2 g

Overview

The LM358S integrates two independent, high-gain, internally frequency-compensated dual op-amps, featuring a 1MHz gain-bandwidth product, a slew rate of 0.2V/μs, and a quiescent current of only 1.18mA at 5V supply. This device operates in both single-supply and dual-supply applications, and is capable of driving large capacitive loads with ease. Available in an SOP-8 package, the LM358S is a high-performance op-amp with a wide supply voltage range, meeting diverse circuit application requirements without compromising board space.

Applications

Chargers
Power adapters
Sensor amplifiers
Piezoelectric sensor amplifiers
Medical instruments
Mobile communication equipment
Audio amplifier outputs
Portable systems
DC gain components

Key features

Internal frequency compensation, high DC voltage gain (85dB)
Unity-gain bandwidth (1MHz)
Low supply current (1.18mA)
Low input bias current (45nA)
Wide supply voltage range (+3V~30V)
Low input offset voltage and offset current
Wide common-mode input voltage range
Wide differential input voltage range
Stable with large capacitive loads
