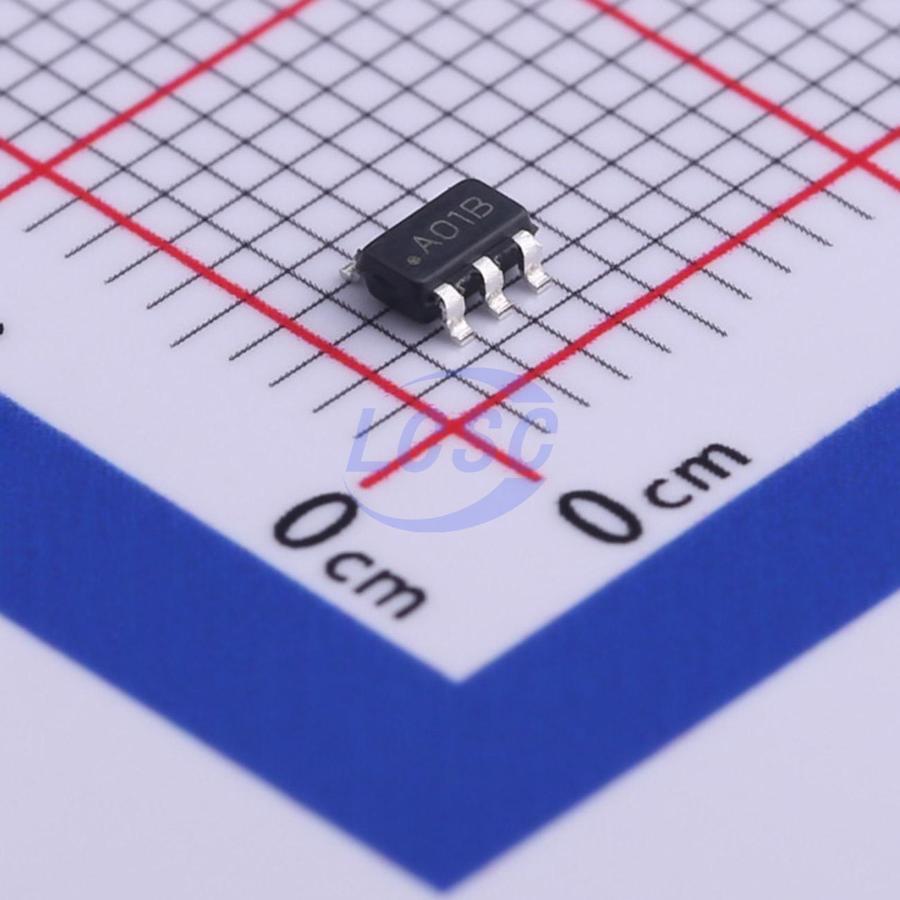

LMC7111BIM5X/NOPB
5mA 1 9mV 30V/ms 85dB 20pA 60uA 50kHz Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5 Instrumentation, Op Amps, Buffer Amps RoHS
SOT-23-5ROHS3 CompliantActive
Tiny CMOS Operational Amplifier with Rail-to-Rail Input and Output
- Manufacturer
- TI
- Manufacturer part #
- LMC7111BIM5X/NOPB
- Store part #
- C477981
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8,255 in stock
#C477981
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹138.33 | ₹138.33 |
| 10+ | ₹112.53 | ₹1,125.30 |
| 30+ | ₹99.53 | ₹2,985.90 |
| 100+ | ₹86.95 | ₹8,695.00 |
| 500+ | ₹79.14 | ₹39,570.00 |
| 1,000+ | ₹75.24 | ₹75,240.00 |
1 × ₹138.33
₹138.33
excl. GST
₹163.23 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LMC7111BIM5X/NOPB
₹138.33 for 1 + GST
Specifications
- Output Current
- 5mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 9mV
- Slew Rate
- 30V/ms
- Input Offset Current(Ios)
- 10pA
- Operating Temperature
- -40℃~+85℃
- Common Mode Rejection Ratio(CMRR)
- 85dB
- Ib - Input Bias Current
- 20pA
- Input Offset Voltage Drift(Vos TC)
- 2uV/℃
- Quiescent Current
- 60uA
- Gain Bandwidth Product
- 50kHz
- Input Voltage Noise Density
- 110nV/√Hz@1kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.5V~11V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.052 g
Overview
The LMC7111 is a micropower CMOS operational amplifier available in the space saving SOT-23 package. This makes the LMC7111 ideal for space and weight critical designs. The wide common-mode input range makes it easy to design battery monitoring circuits which sense signals above the V+ supply. The main benefits of the Tiny package are most apparent in small portable electronic devices, such as mobile phones, pagers, and portable computers. The tiny amplifiers can be placed on a board where they are needed, simplifying board layout.
Applications
- Mobile Communications
- Portable Computing
- Current Sensing for Battery Chargers
- Voltage Reference Buffering
- Sensor Interface
- Stable Bias for GaAs RF Amps
Key features
- Tiny 5-Pin SOT-23 Package Saves Space
- Very Wide Common Mode Input Range
- Specified at 2.7V, 5V, and 10V
- Typical Supply Current 25 μA at 5V
- 50 kHz Gain-Bandwidth at 5V
- Similar to Popular LMC6462
- Output to Within 20mV of Supply Rail at 100k Load
- Good Capacitive Load Drive
