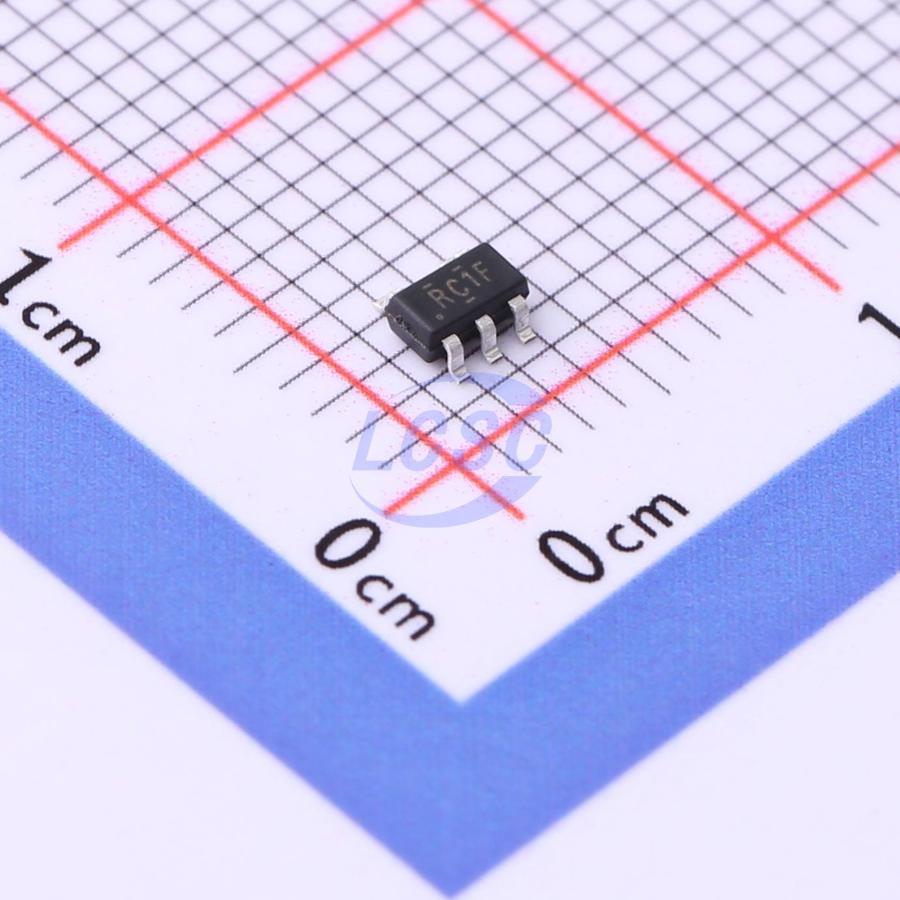

LMV321IDBVR

20mA 1 5mV 600V/ms 10pA 65dB 40uA 1MHz Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5 Instrumentation, Op Amps, Buffer Amps

SOT-23-5RoHSActive

CMOS, Rail-to-Rail General-Purpose Amplifiers

Manufacturer: TECH PUBLIC
Manufacturer part #: LMV321IDBVR
Store part #: C3040613
Package / case: SOT-23-5
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

8,185 in stock

#C3040613

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
5+	₹8.73	₹43.65
50+	₹7.77	₹388.50
150+	₹7.28	₹1,092.00
500+	₹6.91	₹3,455.00
3,000+	₹6.17	₹18,510.00
6,000+	₹6.02	₹36,120.00

Quantity (min 5, multiples of 5)

5 × ₹8.73

₹43.65

excl. GST

₹51.51 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

LMV321IDBVR

₹43.65 for 5 + GST

Specifications

Output Current: 20mA
Number of Channels: 1
Vos - Input Offset Voltage: 5mV
Slew Rate: 600V/ms
Input Offset Current(Ios): 10pA
Operating Temperature: -40℃~+125℃
Ib - Input Bias Current: 10pA
Common Mode Rejection Ratio(CMRR): 65dB
Input Offset Voltage Drift(Vos TC): 2uV/℃
Quiescent Current: 40uA
Gain Bandwidth Product: 1MHz
Input Voltage Noise Density: 20nV/√Hz@10kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 2.2V~5.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.034 g

Overview

The LMV321 is a single-supply, low-power CMOS op-amp. These amplifiers feature a 1MHz bandwidth with rail-to-rail input and output, operating from a single supply of 2.2V to 5.5V. The typical quiescent supply current of a single op-amp in a single package is 40μA, and the ultralow input bias current of 10pA makes this device ideal for low-offset, low-power, and high-impedance applications such as smoke detectors, photodiode amplifiers, and other sensors. The LMV321 is available in a SOT23-5 package. The extended temperature range of -40°C to +125°C across all supply voltages provides additional design flexibility.

Applications

Portable devices
Mobile communications
Smoke detectors
Medical instruments
Battery-powered instruments
Sensor interfaces
Handheld test equipment

Key features

Single-supply operating voltage range: +2.5V ~ +5.5V
Rail-to-rail input/output
Gain bandwidth product: 1MHz (typical)
Low input bias current: 10pA (typical)
Low offset voltage: 5mV (maximum)
Quiescent current: 40μA per amplifier (typical)
Operating temperature: -40°C ~ +125°C
SOT23-5 package
