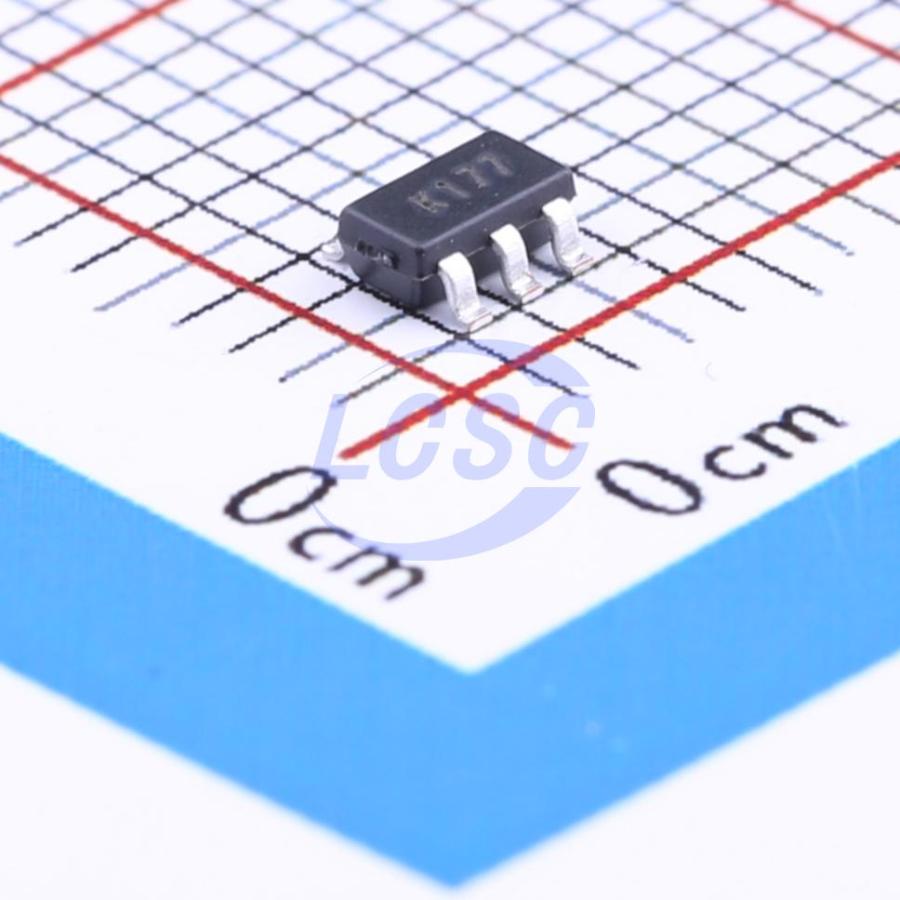

LMV321ILT
48mA 1 3mV 450V/ms 95dB 16nA 145uA 1.3MHz Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5 Instrumentation, Op Amps, Buffer Amps RoHS
SOT-23-5ROHS3 CompliantActive
Low-power, rail-to-rail input/output op-amp
- Manufacturer
- ST
- Manufacturer part #
- LMV321ILT
- Store part #
- C89883
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
9,520 in stock
#C89883
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹45.71 | ₹228.55 |
| 50+ | ₹37.89 | ₹1,894.50 |
| 150+ | ₹34.53 | ₹5,179.50 |
| 500+ | ₹26.54 | ₹13,270.00 |
| 3,000+ | ₹24.67 | ₹74,010.00 |
| 6,000+ | ₹23.55 | ₹1,41,300.00 |
5 × ₹45.71
₹228.55
excl. GST
₹269.69 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LMV321ILT
₹228.55 for 5 + GST
Specifications
- Output Current
- 48mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 3mV
- Slew Rate
- 450V/ms
- Input Offset Current(Ios)
- 1nA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 95dB
- Ib - Input Bias Current
- 16nA
- Input Offset Voltage Drift(Vos TC)
- 2uV/℃
- Quiescent Current
- 145uA
- Gain Bandwidth Product
- 1.3MHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.7V~6V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.039 g
Overview
The LMV321/358/324 family (single, dual, and quad) answers the need for low cost, general-purpose operational amplifiers. They operate with voltages as low as 2.7 V and feature both input and output rail-to-rail, 145 μA consumption current, and 1 MHz gain bandwidth product (GBP). With such a low consumption and a sufficient GBP for many applications, these op amps are well suited for any kind of battery supplied and portable equipment application. The LMV321 device is housed in the space-saving 5-pin SOT23-5 package, which simplifies board design. The SOT23-5 has two pinning configurations to answer all application requirements.
Applications
- Battery powered electronic equipment
- Personal medical care (glucose meters)
- Laptops
Key features
- Operating range from V_CC = 2.7 to 6 V
- Rail-to-rail input and output
- Extended V_icm (V_DD - 0.2 V to V_CC + 0.2 V)
- Low supply current (145 μA)
- Gain bandwidth product (1 MHz)
- ESD tolerance (2 kV)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | RS321BKXF#C2762824RUNIC · SOT-23-5 | RUNIC | SOT-23-5 | 5 | ₹16.48 · 5 in stock | View |
 | TPV321S5#C2827685TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 3,950 | ₹14.24 · 3,950 in stock | View |
 | LMV321#C395459IDCHIP · SOT-23-5 | IDCHIP | SOT-23-5 | 13,300 | ₹8.85 · 13,300 in stock | View |
 | LMV321IDBVR-MS#C7434177MSKSEMI · SOT-23-5 | MSKSEMI | SOT-23-5 | 7,700 | ₹6.34 · 7,700 in stock | View |
 | TSV321RILT#C221463ST · SOT-23-5 | ST | SOT-23-5 | 86 | ₹199.68 · 86 in stock | View |
