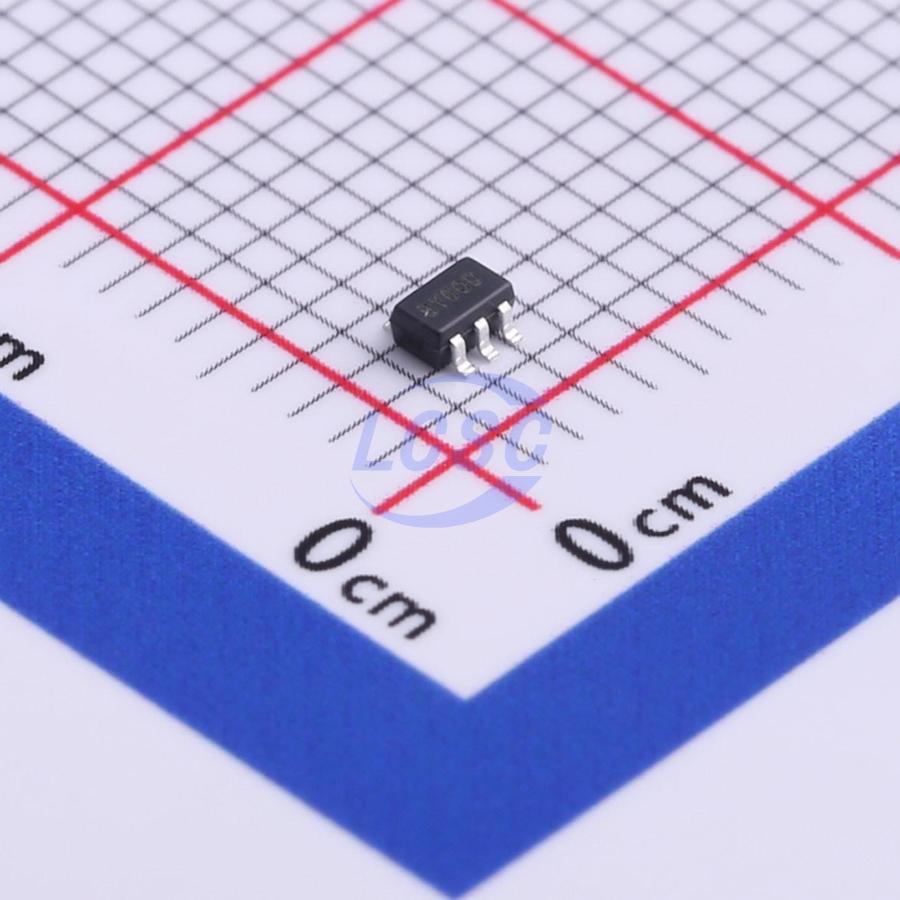

DIODES

LMV321SEG-7

60mA 1 1.7mV 1V/us 65dB 50nA 110uA 1MHz Rail-to-rail output SOT-353 Instrumentation, Op Amps, Buffer Amps RoHS

SOT-353ROHS3 CompliantActive

General Purpose, Low Voltage, Rail-to-Rail Output Operational Amplifiers

Manufacturer: DIODES
Manufacturer part #: LMV321SEG-7
Store part #: C500766
Package / case: SOT-353
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

5,515 in stock

#C500766

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹36.48	₹182.40
50+	₹30.16	₹1,508.00
150+	₹27.45	₹4,117.50
500+	₹24.08	₹12,040.00
3,000+	₹22.58	₹67,740.00
6,000+	₹21.67	₹1,30,020.00

Quantity (min 5, multiples of 5)

5 × ₹36.48

₹182.40

excl. GST

₹215.23 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

LMV321SEG-7

₹182.40 for 5 + GST

Specifications

Output Current: 60mA
Number of Channels: 1
Vos - Input Offset Voltage: 1.7mV
Slew Rate: 1V/us
Input Offset Current(Ios): 50nA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 65dB
Ib - Input Bias Current: 50nA
Input Offset Voltage Drift(Vos TC): 5uV/℃
Quiescent Current: 110uA
Gain Bandwidth Product: 1MHz
Input Voltage Noise Density: 23nV/√Hz@50kHz
Rail to Rail: Rail-to-rail output
Single Supply: 2.7V~5.5V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.051 g

Overview

The LMV321/LMV358/LMV324 are low voltage (2.7V to 5.5V) single, dual and quad operational amplifiers. The LMV321/LMV358/LMV324 are designed to effectively reduce cost and space at low voltage levels. These devices have the capability of rail-to-rail output swing and input common-mode voltage range includes ground. They can also achieve an efficient speed-to-power ratio, utilizing 1 MHz bandwidth and 1V/µs slew rate at a low supply current. Reducing noise pickup and increasing signal integrity can be achieved by placing the device close to the signal source. The LMV321 is available in 5-Pin SOT353/SOT25 packages that reduce space on PC boards and portable electronic devices. The LMV324 is available in the SO-14 and TSSOP-14 package. The LMV358 is available in the MSOP-8 and SO-8 packages.

Applications

Active Filters
General Purpose Low Voltage Applications
General Purpose Portable Devices

Key features

Guaranteed 2.7V and 5V Performance
Crossover Distortion Eliminated
Operating Temperature Range (-40°C to +125°C)
Gain-bandwidth Product 1 MHz
Low Supply Current - LMV321 110µA Typ - LMV358 190µA Typ - LMV324 340µA Typ
Rail-to-Rail Output Swing @ 10kΩ - V+ - 10mV to V+ + 10mV
Input Common Mode Voltage Range (-0.2 to V+ - 0.8V)
Manufactured in Standard CMOS Process
SOT353, SOT25, MSOP-8, SO-8, SO-14 & TSSOP-14: Available in “Green” Molding Compound (No Br, Sb)
Totally Lead-Free & Fully RoHS Compliant
Halogen and Antimony Free. “Green” Device

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
LMV321IDCKR#C148480TI · SC-70-5	TI	SC-70-5	56,280	₹23.68 · 56,280 in stock	View
AZV321KSTR-G1#C150744DIODES · SC-70-5	DIODES	SC-70-5	5	₹32.25 · 5 in stock	View
LMV321IDCKR-MS#C7434178MSKSEMI · SC70-5	MSKSEMI	SC70-5	5,710	₹9.18 · 5,710 in stock	View
APX321SEG-7#C2058176DIODES · SOT-353	DIODES	SOT-353	2,790	₹23.71 · 2,790 in stock	View
LMV321SEG-7-TUDI#C52941506Tudi · SC-70-5	Tudi	SC-70-5	375	₹14.55 · 375 in stock	View
