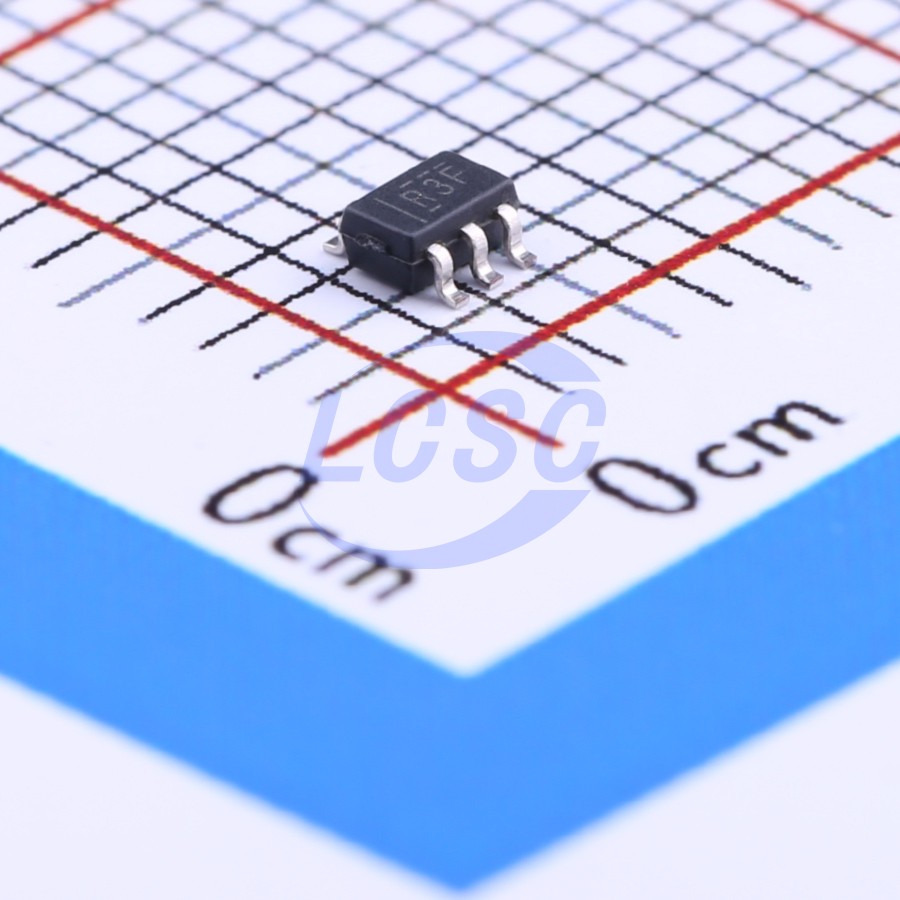

LMV321IDCKR

60mA 1 1.7mV 1V/us 63dB 11nA 130uA 1MHz Rail-to-rail output SC-70-5 Instrumentation, Op Amps, Buffer Amps RoHS

SC-70-5ROHS3 CompliantActive

Low-Voltage Rail-to-Rail Output Operational Amplifiers

Manufacturer: TI
Manufacturer part #: LMV321IDCKR
Store part #: C148480
Package / case: SC-70-5
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

56,280 in stock

#C148480

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹23.68	₹118.40
50+	₹18.40	₹920.00
150+	₹16.15	₹2,422.50
500+	₹13.34	₹6,670.00
3,000+	₹12.08	₹36,240.00
6,000+	₹11.32	₹67,920.00

Quantity (min 5, multiples of 5)

5 × ₹23.68

₹118.40

excl. GST

₹139.71 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

LMV321IDCKR

₹118.40 for 5 + GST

Specifications

Output Current: 60mA
Number of Channels: 1
Vos - Input Offset Voltage: 1.7mV
Slew Rate: 1V/us
Input Offset Current(Ios): 5nA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 63dB
Ib - Input Bias Current: 11nA
Input Offset Voltage Drift(Vos TC): 5uV/℃
Quiescent Current: 130uA
Gain Bandwidth Product: 1MHz
Input Voltage Noise Density: 46nV/√Hz@1kHz
Rail to Rail: Rail-to-rail output
Single Supply: 2.7V~5.5V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.045 g

Overview

The LMV321, LMV358, LMV324, and LMV324S devices are single, dual, and quad low-voltage (2.7 V to 5.5 V) operational amplifiers with rail-to-rail output swing. These devices are cost-effective solutions for applications where low-voltage operation, space saving, and low cost are needed. These amplifiers are designed specifically for low-voltage (2.7 V to 5 V) operation, with performance specifications meeting or exceeding the LM358 and LM324 devices that operate from 5 V to 30 V. With package sizes down to one-half the size of the DBV (SOT-23) package, these devices can be used for a variety of applications.

Applications

Desktop PCs
HVAC: Heating, Ventilating, and Air Conditioning
Motor Control: AC Induction
Netbooks
Portable Media Players
Power: Telecom DC/DC Module: Digital
Pro Audio Mixers
Refrigerators
Washing Machines: High-End and Low-End

Key features

2.7 V and 5-V Performance
-40°C to 125°C Operation
Low-Power Shutdown Mode (LMV324S)
No Crossover Distortion
Low Supply Current
LMV321: 130 μA Typ
LMV358: 210 μA Typ
LMV324: 410 μA Typ
LMV324S: 410 μA Typ
Rail-to-Rail Output Swing
ESD Protection Exceeds JESD 22 2000-V Human-Body Model 1000-V Charged-Device Model

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
LTC321XC5/R6#C2888107Linearin · SC-70-5L	Linearin	SC-70-5L	3,959	₹12.05 · 3,959 in stock	View
LMV321BRTZ#C2928824HTCSEMI · SOT-23-5	HTCSEMI	SOT-23-5	2,820	₹10.62 · 2,820 in stock	View
RS321BKXC5#C2983747RUNIC · SOT-353	RUNIC	SOT-353	2,630	₹18.55 · 2,630 in stock	View
LMV321M7/TR#C565364HGSEMI · SC-70	HGSEMI	SC-70	11,220	₹6.87 · 11,220 in stock	View
LMV321IDCKR-MS#C7434178MSKSEMI · SC70-5	MSKSEMI	SC70-5	5,710	₹9.18 · 5,710 in stock	View
