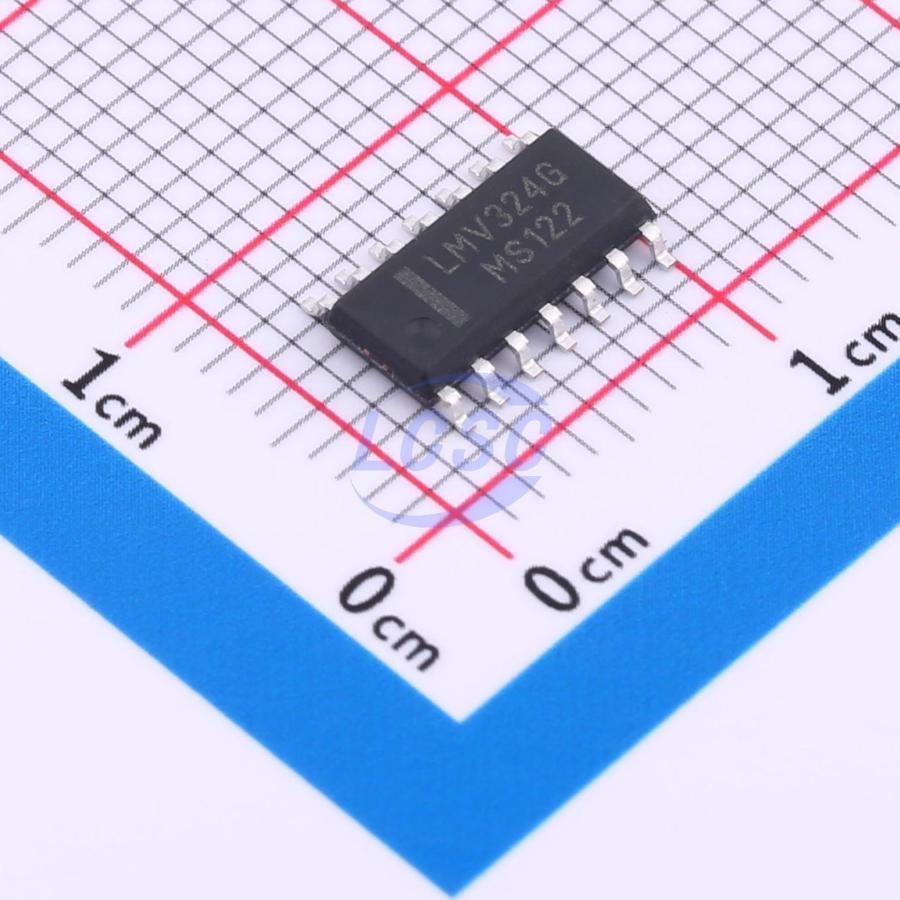

LMV324DR2G(MS)
45mA 4 1mV 1V/us 5pA 80dB 28uA 1MHz Rail-to-Rail Input, Rail-to-Rail Output SOIC-14 Instrumentation, Op Amps, Buffer Amps
SOIC-14RoHSActive
Low-offset, high-frequency response, low-power operational amplifier
- Manufacturer
- MSKSEMI
- Manufacturer part #
- LMV324DR2G(MS)
- Store part #
- C20627196
- Package / case
- SOIC-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,310 in stock
#C20627196
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.22 | ₹91.10 |
| 50+ | ₹14.57 | ₹728.50 |
| 150+ | ₹12.75 | ₹1,912.50 |
| 500+ | ₹11.38 | ₹5,690.00 |
| 2,500+ | ₹8.77 | ₹21,925.00 |
| 5,000+ | ₹8.23 | ₹41,150.00 |
5 × ₹18.22
₹91.10
excl. GST
₹107.50 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LMV324DR2G(MS)
₹91.10 for 5 + GST
Specifications
- Output Current
- 45mA
- Number of Channels
- 4
- Vos - Input Offset Voltage
- 1mV
- Slew Rate
- 1V/us
- Input Offset Current(Ios)
- 1pA
- Operating Temperature
- -40℃~+125℃
- Ib - Input Bias Current
- 5pA
- Common Mode Rejection Ratio(CMRR)
- 80dB
- Input Offset Voltage Drift(Vos TC)
- 1.8uV/℃
- Quiescent Current
- 28uA
- Gain Bandwidth Product
- 1MHz
- Input Voltage Noise Density
- 65nV/√Hz@1kHz
- Dual Supply
- -2.75V~-750mV;750mV~2.75V
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 1.5V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.364 g
Overview
LMV324DR2G(MS) (quad) is a general-purpose, low-offset, high-frequency-response, low-power op-amp. At 5V, each amplifier offers an impressive 1MHz bandwidth, 1V/μs slew rate, and 28μA quiescent current, making the LMV324DR2G(MS) series suitable for a wide range of applications. The LMV324DR2G(MS) op-amp is designed to deliver optimum performance in low-voltage, low-power systems. The input common-mode voltage range includes ground, with a maximum input offset voltage of 3mV. These devices provide rail-to-rail output swing under heavy load conditions. The LMV324DR2G(MS) series op-amps are fully specified over the entire temperature range of -40°C to +125°C from a single or dual supply of 1.5V to 5.5V. The LMV324DR2G(MS) is a low-power, unity-gain stable, rail-to-rail op-amp operating from a single supply voltage range of 1.8V to 5.5V (±0.9V to ±2.75V). A supply voltage exceeding 6V (absolute maximum) will permanently damage the amplifier. Rail-to-rail input and output swing significantly increases the dynamic range, especially in low-supply applications. Good layout practice requires a 0.1μF bypass capacitor placed in close proximity to the supply pins. The LMV324DR2G(MS) features internal phase inversion protection. Many op-amps exhibit phase inversion when the input exceeds the linear common-mode range. This condition is most common in non-inverting circuits, where exceeding the specified common-mode voltage range causes the output to invert to the opposite rail. The LMV324DR2G(MS) input is protected against phase inversion due to excessive common-mode voltage. Instead, the appropriate rail clamps the output voltage.
Applications
- Battery and power control
- Audio output
- Smoke/gas/environmental sensors
- Portable and mobile devices
- Sensor interface
- Active filters
- Medical devices
Key features
- Input offset voltage: 1mV (typical)
- Supply current: 28μA (Vs = 5V)
- Supply voltage range: 1.8V to 5.5V
- Gain bandwidth: 1MHz (Vs = 5V)
- Slew rate: 1V/μs (Vs = 5V)
- Rail-to-rail input and output
- Low cost
- Miniature package:
- LMV324DR2G(MS): SOIC-14
