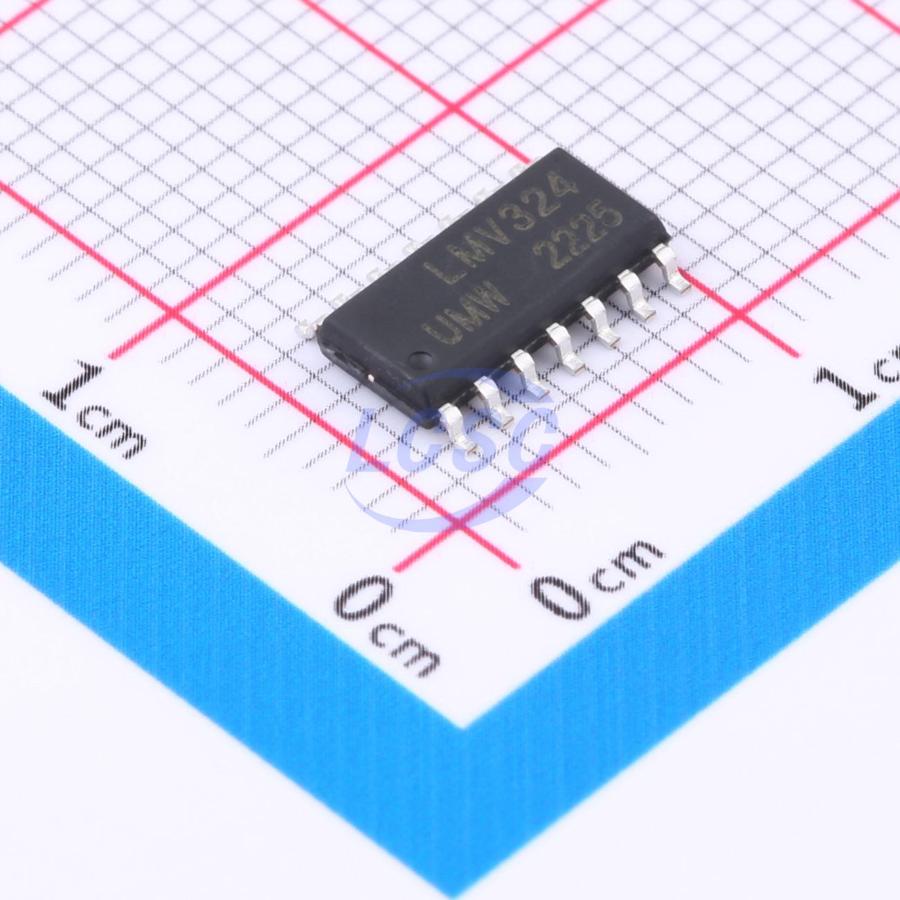

LMV324IDR
25mA 4 5mV 520V/ms 89dB 10nA 1MHz 45uA Rail-to-Rail Input, Rail-to-Rail Output SOP-14 Instrumentation, Op Amps, Buffer Amps RoHS
SOP-14ROHS3 CompliantActive
Low-Power rail-to-rail Operational Amplifier
- Manufacturer
- UMW
- Manufacturer part #
- LMV324IDR
- Store part #
- C4944986
- Package / case
- SOP-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
81,480 in stock
#C4944986
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹17.75 | ₹88.75 |
| 50+ | ₹13.88 | ₹694.00 |
| 150+ | ₹11.95 | ₹1,792.50 |
| 500+ | ₹10.49 | ₹5,245.00 |
| 2,500+ | ₹9.02 | ₹22,550.00 |
| 5,000+ | ₹8.44 | ₹42,200.00 |
5 × ₹17.75
₹88.75
excl. GST
₹104.73 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LMV324IDR
₹88.75 for 5 + GST
Specifications
- Output Current
- 25mA
- Number of Channels
- 4
- Vos - Input Offset Voltage
- 5mV
- Slew Rate
- 520V/ms
- Input Offset Current(Ios)
- 10pA
- Operating Temperature
- -25℃~+85℃
- Common Mode Rejection Ratio(CMRR)
- 89dB
- Ib - Input Bias Current
- 10nA
- Input Offset Voltage Drift(Vos TC)
- 2.7uV/℃
- Gain Bandwidth Product
- 1MHz
- Quiescent Current
- 45uA
- Input Voltage Noise Density
- 20nV/√Hz@10kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.1V~5.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.27 g
