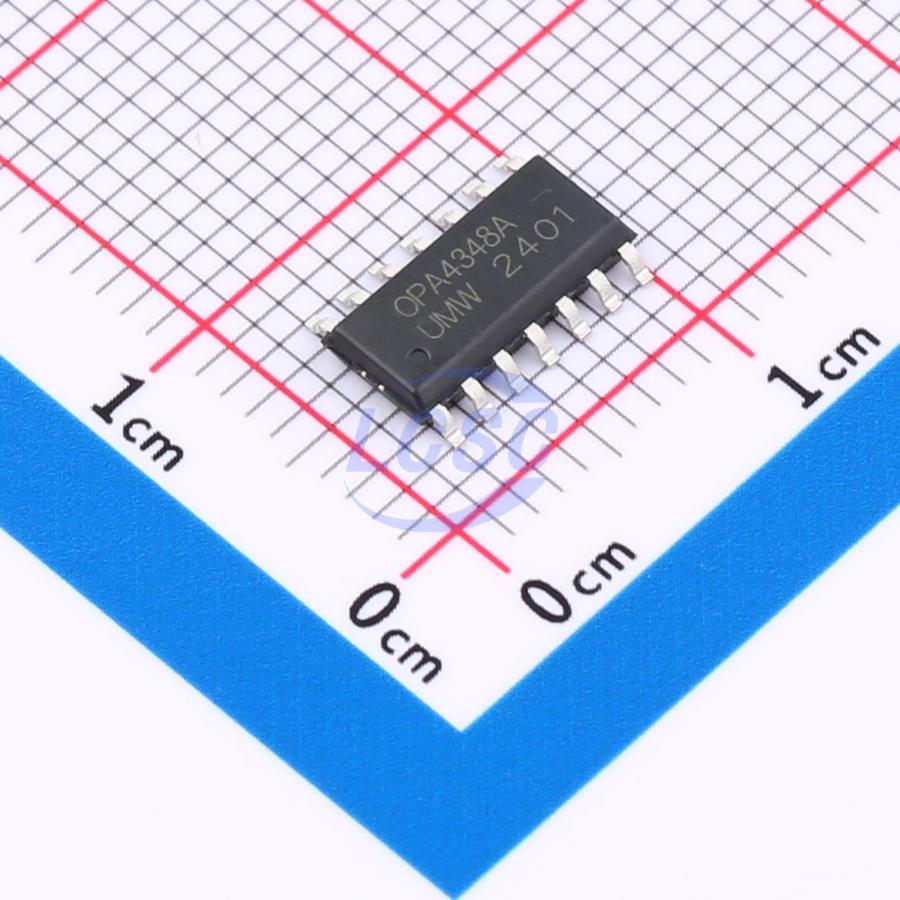

OPA4348AIDR(UMW)

10mA 4 5mV 500V/ms 0.5pA 82dB 45uA 1MHz Rail-to-Rail Input, Rail-to-Rail Output SOP-14 Instrumentation, Op Amps, Buffer Amps RoHS

SOP-14ROHS CompliantActive

1MHz, 45μA, CMOS, Rail-to-Rail Operational Amplifiers

Manufacturer: UMW
Manufacturer part #: OPA4348AIDR(UMW)
Store part #: C20754795
Package / case: SOP-14
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,495 in stock

#C20754795

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹13.47	₹67.35
50+	₹11.83	₹591.50
150+	₹10.99	₹1,648.50
500+	₹10.39	₹5,195.00
2,500+	₹9.88	₹24,700.00
5,000+	₹9.64	₹48,200.00

Quantity (min 5, multiples of 5)

5 × ₹13.47

₹67.35

excl. GST

₹79.47 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

OPA4348AIDR(UMW)

₹67.35 for 5 + GST

Specifications

Output Current: 10mA
Number of Channels: 4
Vos - Input Offset Voltage: 5mV
Slew Rate: 500V/ms
Input Offset Current(Ios): 10pA
Operating Temperature: -40℃~+125℃
Ib - Input Bias Current: 0.5pA
Common Mode Rejection Ratio(CMRR): 82dB
Input Offset Voltage Drift(Vos TC): 4uV/℃
Quiescent Current: 45uA
Gain Bandwidth Product: 1MHz
Input Voltage Noise Density: 35nV/√Hz@1kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 2.1V~5.5V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.287 g

Overview

The OPA348 series amplifiers are single-supply, low-power, CMOS op amps in miniature packages. This series features 1MHz extended bandwidth and 45μA supply current, suitable for low-power applications with 2.1V to 5.5V single supply. The 45μA low supply current and 0.5pA input bias current make the OPA348 series ideal for low-power, high-impedance applications such as smoke detectors and other sensors.

Applications

Portable devices
Battery-powered devices
Smoke alarms

Key features

Typical quiescent current: 45μA
Low cost
Rail-to-rail input and output
Single-supply operating range: +2.1V to +5.5V
Input bias current: 0.5pA
Miniature packages: SC70-5, SOP-8, and TSSOP-14
High speed-to-power ratio bandwidth: 1MHz
