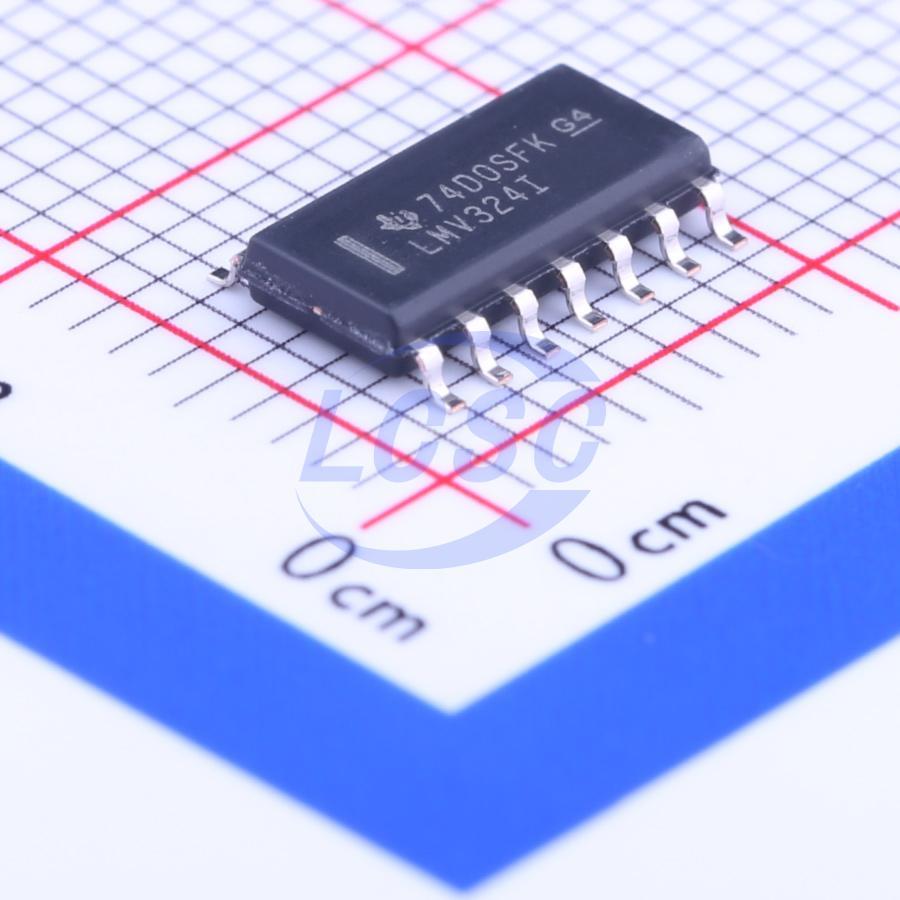

LMV324IDR

The LMV321, LMV358, and LMV324/LMV324S are single, dual, and quad low-voltage (2.7 V to 5.5 V) operational amplifiers with rail-to-rail output swing. The LMV324S, which is a variation of the standard LMV324, includes a power-saving shutdown feature that reduces supply current to a maximum of 5 μA per channel when the amplifiers are not needed. Channels 1 and 2 together are put in shutdown, as are channels 3 and 4. While in shutdown, the outputs actively are pulled low. The LMV321, LMV358, LMV324, and LMV324S are cost-effective solutions for applications where low-voltage operation, space saving, and low cost are needed. These amplifiers are designed specifically for low-voltage (2.7 V to 5 V) operation, with performance specifications meeting or exceeding the LM358 and LM324 devices that operate from 5 V to 30 V. Additional features of the LMV3xx devices are a common-mode input voltage range that includes ground, 1-MHz unity-gain bandwidth, and 1-V/μs slew rate. The LMV321 is available in the ultra-small DCK (SC70) package, which is approximately one-half the size of the DBV (SOT-23) package. This package saves space on printed circuit boards and enables the design of small portable electronic devices. It also allows the designer to place the device closer to the signal source to reduce noise pickup and increase signal integrity.

Applications

• Desktop computers
• HVAC
• AC induction motor control
• Netbooks
• Portable media players
• Telecom DC/DC digital power modules
• Professional mixers
• Refrigerators
• Washing machines

Key features

• 2.7-V and 5-V Performance
• -40°C to 125°C Operation
• Low-Power Shutdown Mode (LMV324S)
• No Crossover Distortion
• Low Supply Current
• LMV321 ... 130 μA Typ
• LMV358 ... 210 μA Typ
• LMV324 ... 410 μA Typ
• LMV324S ... 410 μA Typ
• Rail-to-Rail Output Swing
• ESD Protection Exceeds JESD 22
• 2000-V Human-Body Model (A114-A)
• 1000-V Charged-Device Model (C101)
