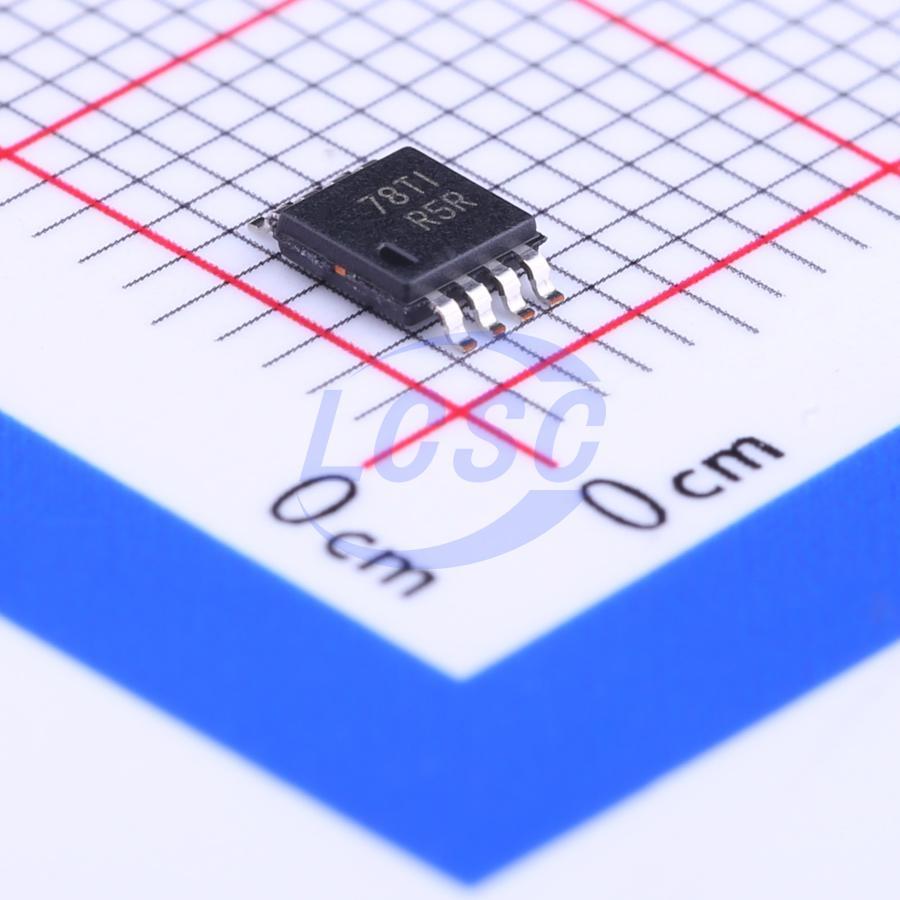

LMV358IDGKR

60mA 2 1.7mV 1V/us 65dB 15nA 1MHz 210uA Rail-to-rail output VSSOP-8 Instrumentation, Op Amps, Buffer Amps RoHS

VSSOP-8ROHS CompliantActive

Low-Voltage Rail-to-Rail Output Operational Amplifiers

Manufacturer: TI
Manufacturer part #: LMV358IDGKR
Store part #: C105242
Package / case: VSSOP-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

13,135 in stock

#C105242

Stock & price checked 23 h ago

Quantity	Unit price	Pack price
5+	₹39.95	₹199.75
50+	₹32.27	₹1,613.50
150+	₹28.97	₹4,345.50
500+	₹24.87	₹12,435.00
2,500+	₹20.68	₹51,700.00
5,000+	₹19.58	₹97,900.00

Quantity (min 5, multiples of 5)

5 × ₹39.95

₹199.75

excl. GST

₹235.71 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

LMV358IDGKR

₹199.75 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Current: 60mA
Number of Channels: 2
Vos - Input Offset Voltage: 1.7mV
Slew Rate: 1V/us
Input Offset Current(Ios): 5nA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 65dB
Ib - Input Bias Current: 15nA
Input Offset Voltage Drift(Vos TC): 5uV/℃
Gain Bandwidth Product: 1MHz
Quiescent Current: 210uA
Input Voltage Noise Density: 39nV/√Hz@1kHz
Rail to Rail: Rail-to-rail output
Single Supply: 2.7V~5.5V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 2 (1 year)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.15 g

Overview

The LMV321, LMV358, LMV324, and LMV324S devices are single, dual, and quad low-voltage (2.7 V to 5.5 V) operational amplifiers with rail-to-rail output swing. These devices are cost-effective solutions for applications where low-voltage operation, space saving, and low cost are needed. These amplifiers are designed specifically for low-voltage (2.7 V to 5 V) operation, with performance specifications meeting or exceeding the LM358 and LM324 devices that operate from 5 V to 30 V. With package sizes down to one-half the size of the DBV (SOT-23) package, these devices can be used for a variety of applications.

Applications

Desktop PCs
HVAC: Heating, Ventilating, and Air Conditioning
Motor Control: AC Induction
Netbooks
Portable Media Players
Power: Telecom DC/DC Module: Digital
Pro Audio Mixers
Refrigerators
Washing Machines: High-End and Low-End

Key features

2.7 V and 5-V Performance
-40°C to 125°C Operation
Low-Power Shutdown Mode (LMV324S)
No Crossover Distortion
Low Supply Current
LMV321: 130 μA Typ
LMV358: 210 μA Typ
LMV324: 410 μA Typ
LMV324S: 410 μA Typ
Rail-to-Rail Output Swing
ESD Protection Exceeds JESD 22 2000-V Human-Body Model 1000-V Charged-Device Model
