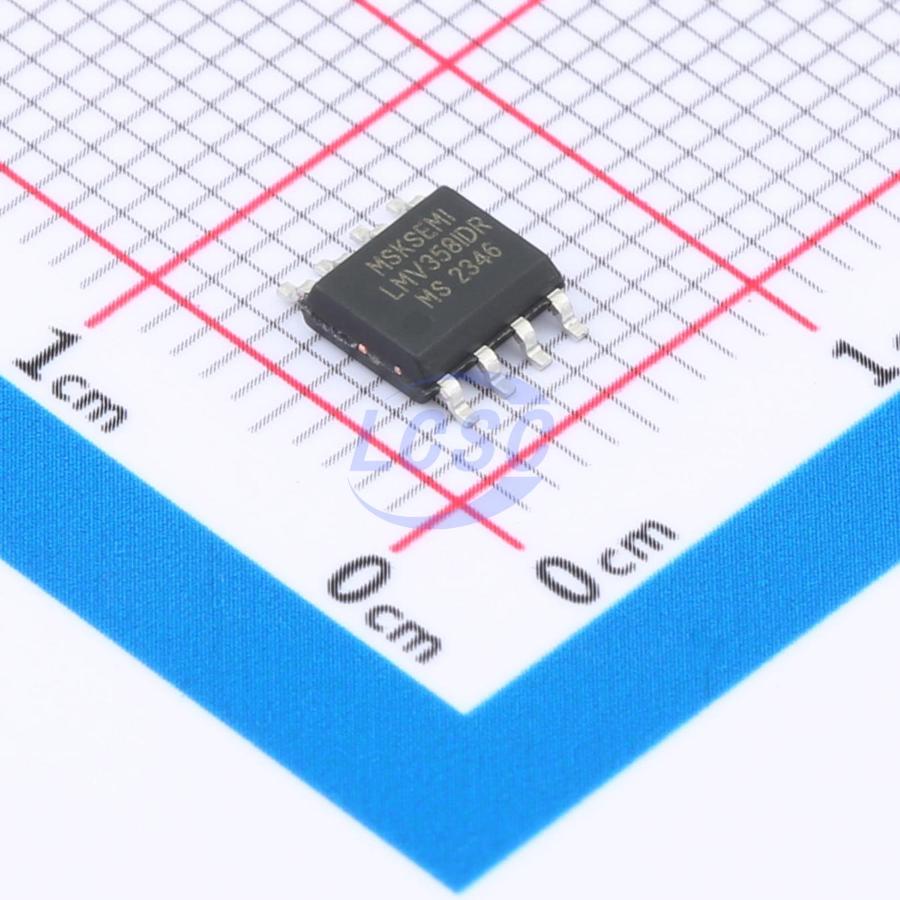

LMV358IDR-MS
2 2mV 1.2V/us 2pA 95dB 50uA 1.5MHz Rail-to-Rail Input, Rail-to-Rail Output SOP-8 Instrumentation, Op Amps, Buffer Amps
SOP-8RoHSActive
Dual CMOS Operational Amplifier
- Manufacturer
- MSKSEMI
- Manufacturer part #
- LMV358IDR-MS
- Store part #
- C19272804
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,525 in stock
#C19272804
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.71 | ₹58.55 |
| 50+ | ₹9.19 | ₹459.50 |
| 150+ | ₹7.95 | ₹1,192.50 |
| 500+ | ₹7.01 | ₹3,505.00 |
| 2,500+ | ₹6.26 | ₹15,650.00 |
| 5,000+ | ₹5.87 | ₹29,350.00 |
5 × ₹11.71
₹58.55
excl. GST
₹69.09 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LMV358IDR-MS
₹58.55 for 5 + GST
Specifications
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 2mV
- Slew Rate
- 1.2V/us
- Input Offset Current(Ios)
- 1pA
- Operating Temperature
- -55℃~+125℃
- Ib - Input Bias Current
- 2pA
- Common Mode Rejection Ratio(CMRR)
- 95dB
- Input Offset Voltage Drift(Vos TC)
- 650nV/℃
- Quiescent Current
- 50uA
- Gain Bandwidth Product
- 1.5MHz
- Features
- Zero drift / auto-zero
- Dual Supply
- -2.75V~2.75V
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.1V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.18 g
Overview
The LMV358IDR-MS is dual CMOS operational amplifier that uses the proprietary auto-calibration technique to simultaneously provides very low offset voltage, near-zero drift over time and temperature. These miniature, high-precision, low quiescent current amplifiers offer high-impedance inputs that have a common-mode range 200mV beyond the rails, and rail-to-rail output that swings within 50mV of the rails, single or dual supplies as low as 2.1V(±1.35V) and up to 5.5V(±2.75V) can be used. These devices are optimized for low voltage, single supply operation. The LMV358IDR-MS offers excellent CMRR without the crossover associated with traditional complementary input stages. This design results in superior performance for driving analog-to-digital converters(ADC) without degradation of differential linearity. The LMV358IDR-MS is available in the 8-pin VSSOP and TSSOP packages.
Applications
- Transducers
- Temperature Measurement
- Electronic Scales
- Medical instrumentation
- Handheld Test Equipment
Key features
- VDD range: 2.1V to 5.5V
- Low Offset Voltage: 0.5mV (Typical)
- Low Drift: 0.65μV/C (Typical)
- Low Noise
- Quiescent Current: 50μA (Total)
- Rail to Rail Input/Output
- MicroSize Packages: SOP-8
