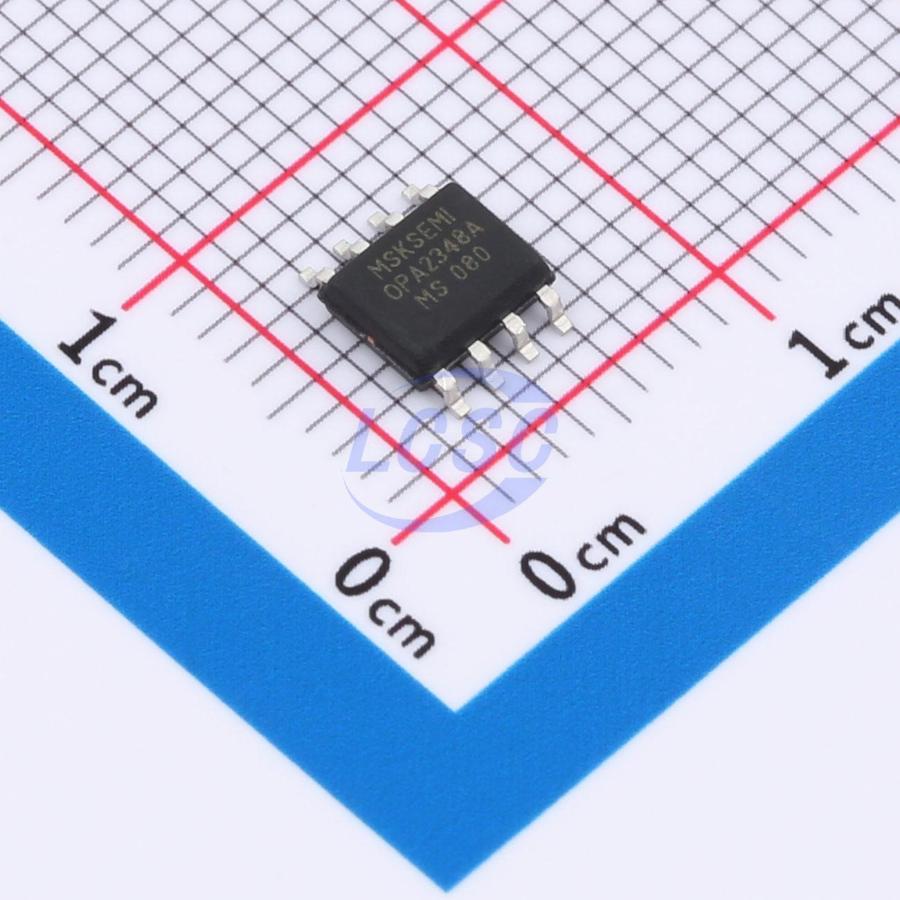

OPA2348AIDR-MS
2 500uV 1.2V/us 95dB 2pA 50uA 1.5MHz Rail-to-Rail Input, Rail-to-Rail Output SOP-8 Instrumentation, Op Amps, Buffer Amps
SOP-8RoHSActive
Dual CMOS Operational Amplifiers: Low Offset Voltage, Near-Zero Drift, High Precision
- Manufacturer
- MSKSEMI
- Manufacturer part #
- OPA2348AIDR-MS
- Store part #
- C30197566
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,625 in stock
#C30197566
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹25.26 | ₹126.30 |
| 50+ | ₹19.83 | ₹991.50 |
| 150+ | ₹17.50 | ₹2,625.00 |
| 500+ | ₹14.61 | ₹7,305.00 |
| 2,500+ | ₹13.32 | ₹33,300.00 |
| 5,000+ | ₹12.54 | ₹62,700.00 |
5 × ₹25.26
₹126.30
excl. GST
₹149.03 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
OPA2348AIDR-MS
₹126.30 for 5 + GST
Specifications
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 500uV
- Slew Rate
- 1.2V/us
- Input Offset Current(Ios)
- 1pA
- Operating Temperature
- -55℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 95dB
- Ib - Input Bias Current
- 2pA
- Input Offset Voltage Drift(Vos TC)
- 650nV/℃
- Quiescent Current
- 50uA
- Gain Bandwidth Product
- 1.5MHz
- Features
- Zero drift / auto-zero;Built-in compensation
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.1V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.184 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LMV358-MS#C19272805MSKSEMI · SOP-8 | MSKSEMI | SOP-8 | 735 | ₹9.02 · 735 in stock | View |
 | MCP6002T-I/SN(MS)#C20538868MSKSEMI · SOP-8 | MSKSEMI | SOP-8 | 260 | ₹13.93 · 260 in stock | View |
 | MS8542ARZ-REEL7#C42403125MSKSEMI · SOP-8 | MSKSEMI | SOP-8 | 2,160 | ₹14.41 · 2,160 in stock | View |
 | LMV358IDR-MS#C19272804MSKSEMI · SOP-8 | MSKSEMI | SOP-8 | 4,525 | ₹11.71 · 4,525 in stock | View |
 | MSAD8606ARZ#C49208533MSKSEMI · SOP-8 | MSKSEMI | SOP-8 | 2,310 | ₹32.33 · 2,310 in stock | View |
