MSKSEMIDatasheet (PDF)

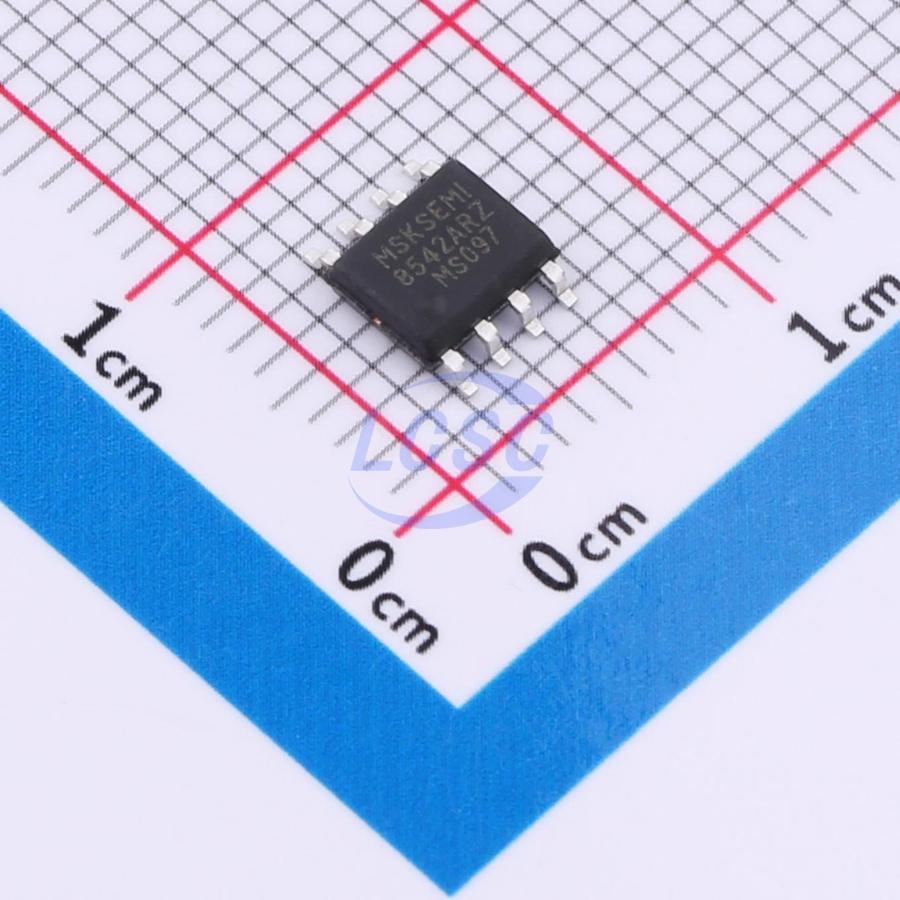

MS8542ARZ-REEL7
2 500uV 1.2V/us 95dB 2pA 50uA 1.5MHz Rail-to-Rail Input, Rail-to-Rail Output SOP-8 Instrumentation, Op Amps, Buffer Amps
SOP-8RoHSActive
Dual CMOS operational amplifier
- Manufacturer
- MSKSEMI
- Manufacturer part #
- MS8542ARZ-REEL7
- Store part #
- C42403125
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,160 in stock
#C42403125
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.41 | ₹72.05 |
| 50+ | ₹11.39 | ₹569.50 |
| 150+ | ₹9.88 | ₹1,482.00 |
| 500+ | ₹8.75 | ₹4,375.00 |
| 2,500+ | ₹7.85 | ₹19,625.00 |
| 5,000+ | ₹7.40 | ₹37,000.00 |
5 × ₹14.41
₹72.05
excl. GST
₹85.02 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MS8542ARZ-REEL7
₹72.05 for 5 + GST
Specifications
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 500uV
- Slew Rate
- 1.2V/us
- Input Offset Current(Ios)
- 1pA
- Operating Temperature
- -25℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 95dB
- Ib - Input Bias Current
- 2pA
- Input Offset Voltage Drift(Vos TC)
- 650nV/℃
- Quiescent Current
- 50uA
- Gain Bandwidth Product
- 1.5MHz
- Features
- Zero drift / auto-zero;Built-in compensation
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Dual Supply
- -2.75V~-1.05V;1.05V~2.75V
- Single Supply
- 2.1V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.204 g
Overview
The MS8542ARZ-REEL7 is dual CMOS operational amplifier that uses the proprietary auto-calibration technique to simultaneously provides very low offset voltage, near-zero drift over time and temperature. These miniature, high-precision, low quiescent current amplifiers offer high-impedance inputs that have a common-mode range 200mV beyond the rails, and rail output output that swings within 50mV of the rails, single or dual supplies as low as 2.1V (±1.05V) and up to 5.5V (±2.75V) can be used. These devices are optimized for low voltage, single supply operation. The MS8542ARZ-REEL7 offers excellent CMRR without the crossover associated with traditional complementary input stages. This design results in superior performance for driving analog-to-digital converters (ADC) without degradation of differential linearity. The MS8542ARZ-REEL7 is available in the 8-pin packages.
Applications
- Transducers
- Temperature Measurement
- Electronic Scales
- Medical instrumentation
- Handheld Test Equipment
Key features
- VDD range: 2.1V to 5.5V
- Low Offset Voltage: 0.5mV (Typical)
- Low Drift: 0.65μV/°C (Typical)
- Low Noise
- Quiescent Current: 50μA (Total)
- Rail to Rail Input/Output
- MicroSize Packages: SOP-8
