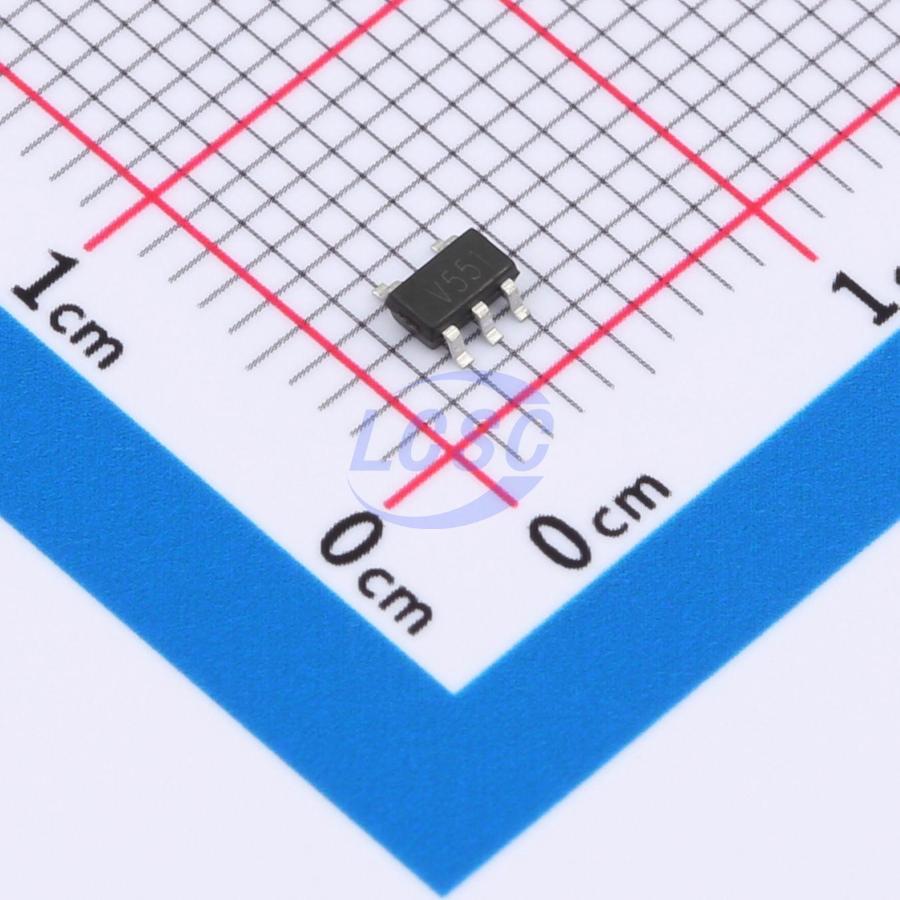

LMV551M5/TR

84mA 1 3.5mV 600V/ms 1pA 70dB 40uA 1MHz Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5 Instrumentation, Op Amps, Buffer Amps

SOT-23-5RoHSActive

1MHz CMOS Rail-to-Rail IO Opamp with RF Filter

Manufacturer: HGSEMI
Manufacturer part #: LMV551M5/TR
Store part #: C22461611
Package / case: SOT-23-5
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,885 in stock

#C22461611

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
5+	₹20.85	₹104.25
50+	₹18.20	₹910.00
150+	₹17.07	₹2,560.50
500+	₹15.66	₹7,830.00
3,000+	₹15.03	₹45,090.00
6,000+	₹14.66	₹87,960.00

Quantity (min 5, multiples of 5)

5 × ₹20.85

₹104.25

excl. GST

₹123.02 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

LMV551M5/TR

₹104.25 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Current: 84mA
Number of Channels: 1
Vos - Input Offset Voltage: 3.5mV
Slew Rate: 600V/ms
Input Offset Current(Ios): 1pA
Operating Temperature: -40℃~+125℃
Ib - Input Bias Current: 1pA
Common Mode Rejection Ratio(CMRR): 70dB
Input Offset Voltage Drift(Vos TC): 2.7uV/℃
Quiescent Current: 40uA
Gain Bandwidth Product: 1MHz
Features: EMI filtering/RF suppression
Input Voltage Noise Density: 27nV/√Hz@1kHz
Dual Supply: -2.75V~-1.05V;1.05V~2.75V
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 2.1V~5.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.052 g

Overview

The LMV551 family have a high gain-bandwidth product of 1MHz, a slew rate of 0.6V/μs, and a quiescent current of 40μA/amplifier at 5V. The LMV551 family is designed to provide optimal performance in low voltage and low noise systems. They provide rail-to-rail output swing into heavy loads. The input common mode voltage range includes ground, and the maximum input offset voltage is 3.5mV for LMV551 family. They are specified over the extended industrial temperature range (-40°C to +125°C). The operating range is from 2.1V to 5.5V.

Applications

ASIC Input or Output Amplifier
Sensor Interface
Medical Communication Smoke Detectors
Audio Output
Piezoelectric Transducer Amplifier
Medical Instrumentation
Portable Systems

Key features

Single-Supply Operation from +2.1V ~ +5.5V
Rail-to-Rail Input / Output
Gain-Bandwidth Product: 1MHz (Typ.)
Low Input Bias Current: 1pA (Typ.)
Low Offset Voltage: 3.5mV (Max.)
Quiescent Current: 40μA per Amplifier (Typ.)
Operating Temperature: -40°C ~ +125°C
Embedded RF Anti-EMI Filter
Small Package: LMV551 Available in SOT23-5 and SC70-5 Packages LMV552 Available in SOP-8, MSOP-8, DIP-8, DFN-8 2*2 Packages LMV554 Available in SOP-14 and TSSOP-14 Packages
