UMWDatasheet (PDF)

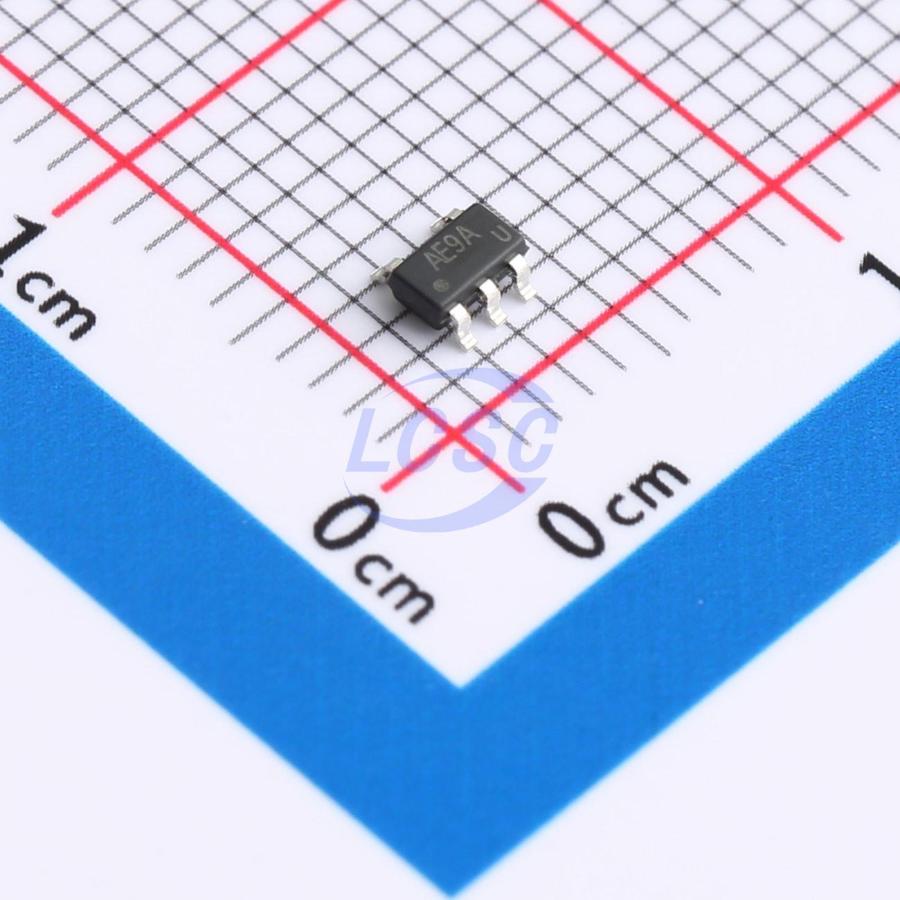

LMV611MF(UMW)
8mA 1 4mV 350V/ms 15nA 78dB 103uA 1.4MHz Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5 Instrumentation, Op Amps, Buffer Amps RoHS
SOT-23-5ROHS CompliantActive
Single, Dual, and Quad, 1.4-MHz, Low-Power, General-Purpose 1.8-V Operational Amplifiers
- Manufacturer
- UMW
- Manufacturer part #
- LMV611MF(UMW)
- Store part #
- C21713891
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,490 in stock
#C21713891
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.48 | ₹92.40 |
| 50+ | ₹14.79 | ₹739.50 |
| 150+ | ₹12.94 | ₹1,941.00 |
| 500+ | ₹11.55 | ₹5,775.00 |
| 3,000+ | ₹10.45 | ₹31,350.00 |
| 6,000+ | ₹9.90 | ₹59,400.00 |
5 × ₹18.48
₹92.40
excl. GST
₹109.03 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LMV611MF(UMW)
₹92.40 for 5 + GST
Specifications
- Output Current
- 8mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 4mV
- Slew Rate
- 350V/ms
- Input Offset Current(Ios)
- 13nA
- Operating Temperature
- -40℃~+125℃
- Ib - Input Bias Current
- 15nA
- Common Mode Rejection Ratio(CMRR)
- 78dB
- Input Offset Voltage Drift(Vos TC)
- 5.5uV/℃
- Quiescent Current
- 103uA
- Gain Bandwidth Product
- 1.4MHz
- Input Voltage Noise Density
- 60nV/√Hz@10kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 1.8V~5.5V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.045 g
Overview
The LMV61x devices are single, dual, and quad low-voltage, low-power op amps designed for low-voltage general-purpose applications. Key features include rail-to-rail input or output, a low supply voltage of 1.8V, and a wide temperature range. The input common-mode range of the LMV61x extends 200mV beyond the supply rails. At a 1.8V supply, the output swings rail-to-rail under no load and to within 30mV of the rail with a 2-kΩ load. The LMV61x achieves a gain bandwidth of 1.4 MHz while drawing a typical quiescent current of 100 μA.
Applications
- Consumer communications
- Consumer computing
- Personal digital assistants
- Audio preamplifiers
Key features
- Supply voltage: 1.8 V (typical)
- Ensured compliance with 1.8-V, 2.7-V, and 5-V specifications
- Output swing: -80 mV from rail with 600-Ω load, -30 mV from rail with 2-kΩ load
- V_CM = 200 mV beyond rail
- 100-μA supply current (per channel)
- 1.4-MHz gain bandwidth product
- Maximum offset voltage = 4 mV
- Temperature range: -40℃ to 125℃
