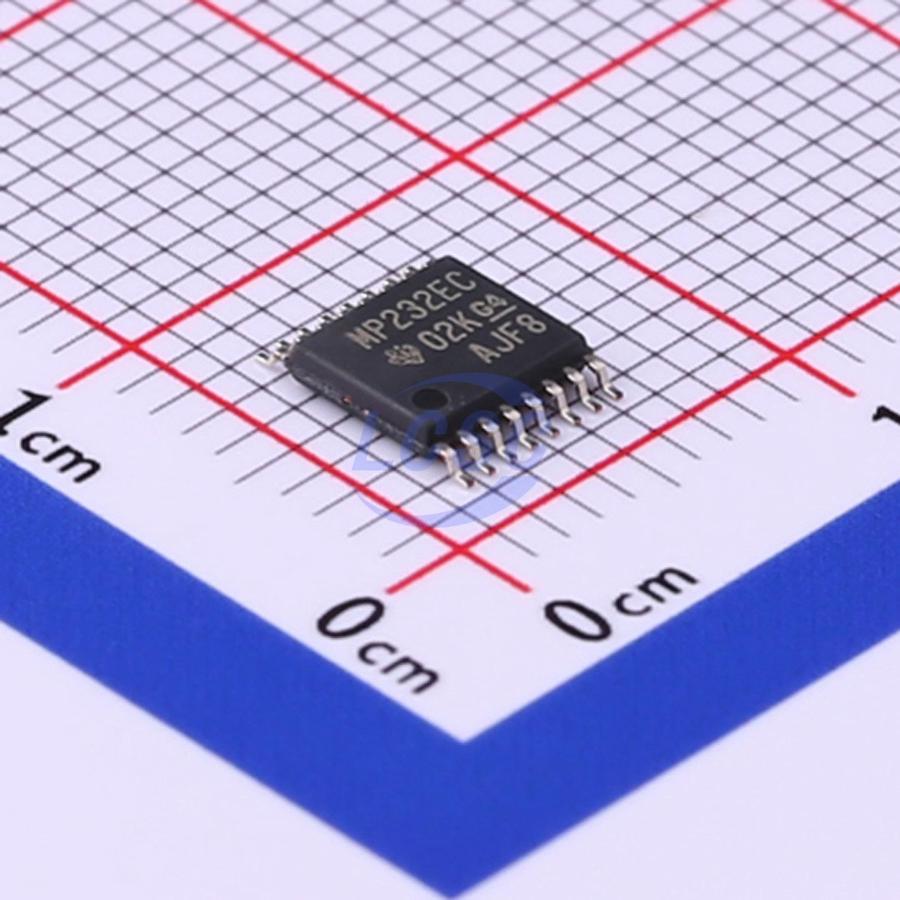

MAX3232ECPWR
Transceiver 3V~5.5V 250Kbps TSSOP-16 Drivers, Receivers, Transceivers RoHS
TSSOP-16ROHS CompliantActive
3-V to 5.5-V Multichannel RS-232 Line Driver and Receiver With ±15-kV IEC ESD Protection
- Manufacturer
- TI
- Manufacturer part #
- MAX3232ECPWR
- Store part #
- C11317
- Package / case
- TSSOP-16
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
22,876 in stock
#C11317
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹80.19 | ₹80.19 |
| 10+ | ₹65.37 | ₹653.70 |
| 30+ | ₹57.97 | ₹1,739.10 |
| 100+ | ₹50.57 | ₹5,057.00 |
| 500+ | ₹46.23 | ₹23,115.00 |
| 1,000+ | ₹44.07 | ₹44,070.00 |
1 × ₹80.19
₹80.19
excl. GST
₹94.62 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
MAX3232ECPWR
₹80.19 for 1 + GST
Specifications
- Type
- Transceiver
- Voltage - Supply
- 3V~5.5V
- Data Rate
- 250Kbps
- Operating Temperature
- 0℃~+70℃
- ESD Protect
- ±15kV
- charge pump
- Yes
- Number of Drivers
- 2
- Number of Receivers
- 2
- Quiescent Supply Current
- 0.3mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.183 g
Overview
The MAX3232E device consists of two line drivers, two-line receivers, and a dual charge-pump circuit with ±15-kV IEC ESD protection pin to pin (serial-port connection pins, including GND). The device meets the requirements of TIA/EIA-232-F and provides the electrical interface between an asynchronous communication controller and the serial-port connector. The charge pump and four small external capacitors allow operation from a single 3-V to 5.5-V supply. The devices operate at data signaling rates up to 250 kbit/s and a maximum of 30-V/μs driver output slew rate.
Applications
- Battery-Powered Systems
- Notebooks
- Laptops
- Palmtop PCs
- Hand-Held Equipment
Key features
- ESD Protection for RS-232 Bus Pins ±15 kV (HBM), ±8 kV (IEC61000-4-2, Contact Discharge), ±15 kV (IEC61000-4-2, Air-Gap Discharge)
- Meets or Exceeds the Requirements of TIA/EIA 232-F and ITU V.28 Standards
- Operates With 3-V to 5.5-V Vcc Supply
- Operates up to 250 kbit/s
- Two Drivers and Two Receivers
- Low Supply Current: 300 μA (Typical)
- External Capacitors: 4×0.1 μF
- Accepts 5-V Logic Input With 3.3-V Supply
- Pin Compatible to Alternative High-Speed Devices (1 Mbit/s)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ICL3232CVZ#C1543927RENESAS · TSSOP-16 | RENESAS | TSSOP-16 | 26 | ₹372.41 · 26 in stock | View |
 | TRS3232ECPWR#C201542TI · TSSOP-16 | TI | TSSOP-16 | 97 | ₹183.93 · 97 in stock | View |
 | SP3232EBCY-L/TR#C365761MaxLinear · TSSOP-16 | MaxLinear | TSSOP-16 | 5,688 | ₹107.33 · 5,688 in stock | View |
 | ST3232ECTR#C52538ST · TSSOP-16 | ST | TSSOP-16 | 1,611 | ₹87.55 · 1,611 in stock | View |
 | MAX3232IPWR#C113205TI · TSSOP-16 | TI | TSSOP-16 | 30,447 | ₹50.23 · 30,447 in stock | View |
