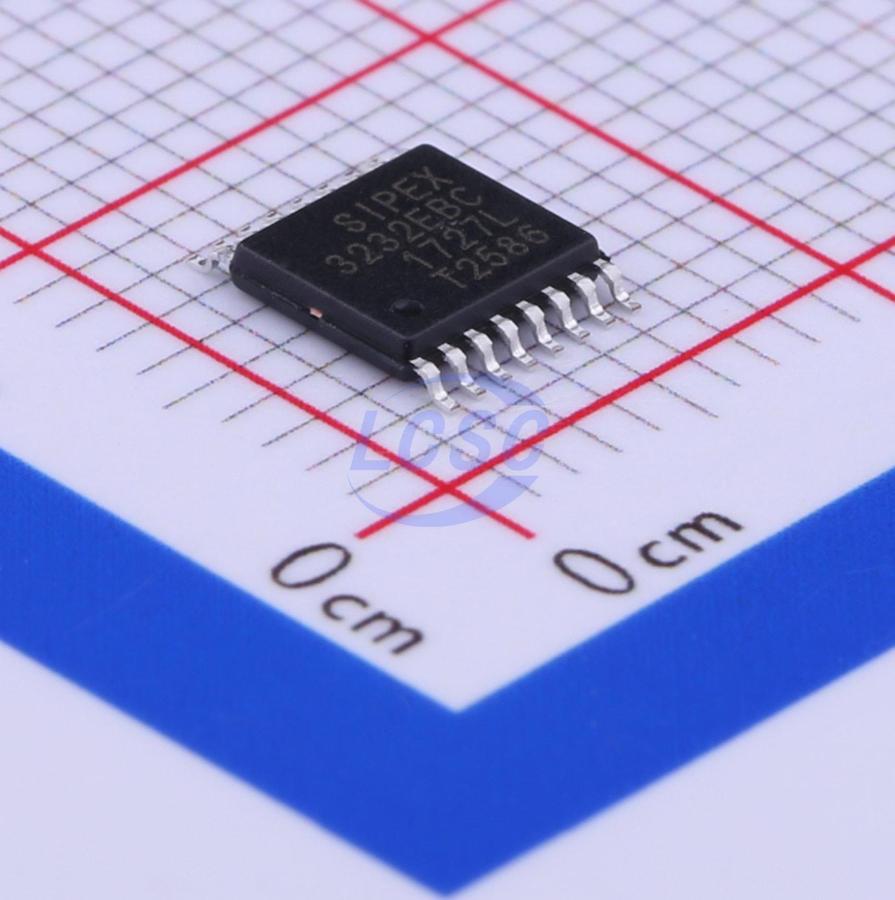

MaxLinear

SP3232EBCY-L/TR

Transceiver 3V~5.5V 250Kbps TSSOP-16 Drivers, Receivers, Transceivers RoHS

TSSOP-16ROHS CompliantActive

True +3.0V to +5.5V RS-232 Transceivers

Manufacturer: MaxLinear
Manufacturer part #: SP3232EBCY-L/TR
Store part #: C365761
Package / case: TSSOP-16
Category: Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

5,688 in stock

#C365761

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
1+	₹129.09	₹129.09
10+	₹102.78	₹1,027.80
30+	₹89.75	₹2,692.50
100+	₹76.50	₹7,650.00
500+	₹68.89	₹34,445.00
1,000+	₹64.76	₹64,760.00

Quantity (min 1)

1 × ₹129.09

₹129.09

excl. GST

₹152.33 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

SP3232EBCY-L/TR

₹129.09 for 1 + GST

Specifications

Type: Transceiver
Voltage - Supply: 3V~5.5V
Data Rate: 250Kbps
Operating Temperature: 0℃~+70℃
ESD Protect: ±15kV
charge pump: Yes
Number of Drivers: 2
Number of Receivers: 2
Quiescent Supply Current: 0.3mA

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.208 g

Overview

The SP3222EB/SP3232EB series is an RS-232 transceiver solution intended for portable or hand-held applications such as notebook or laptop computers. The SP3222EB/SP3232EB series has a high-efficiency, charge-pump power supply that requires only 0.1μF capacitors in 3.3V operation. This charge pump allows the SP3222EB/SP3232EB series to deliver true RS-232 performance from a single power supply ranging from +3.0V to +5.5V. The SP3222EB/ SP3232EB are 2-driver/2-receiver devices. The ESD tolerance of the SP3222EB/SP3232EB devices is over +/−15kV for both Human Body Model and IEC61000-4-2 Air discharge test methods. The SP3222EB device has a low-power shutdown mode where the devices' driver outputs and charge pumps are disabled. During shutdown, the supply current falls to less than 1μA.

Applications

notebook or laptop computers
battery-powered, portable, or hand-held applications
notebook or palmtop computers
portable or hand-held applications

Key features

Meets true EIA/TIA-232-F Standards from a +3.0V to +5.5V power supply
250kbps Transmission Rate Under Load
1μA Low Power Shutdown with Receivers active (SP3222EB) Interoperable with RS-232 down to a +2.7V power source
Enhanced ESD Specifications: ±15kV Human Body Model ±15kV IEC61000-4-2 Air Discharge ±8kV IEC61000-4-2 Contact Discharge

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
MAX3232ECPWR#C11317TI · TSSOP-16	TI	TSSOP-16	22,876	₹96.45 · 22,876 in stock	View
ICL3232CVZ#C1543927RENESAS · TSSOP-16	RENESAS	TSSOP-16	26	₹447.90 · 26 in stock	View
TRS3232ECPWR#C201542TI · TSSOP-16	TI	TSSOP-16	97	₹221.22 · 97 in stock	View
ST3232ECTR#C52538ST · TSSOP-16	ST	TSSOP-16	1,611	₹105.30 · 1,611 in stock	View
MAX3232IPWR#C113205TI · TSSOP-16	TI	TSSOP-16	30,447	₹60.41 · 30,447 in stock	View
