STDatasheet (PDF)

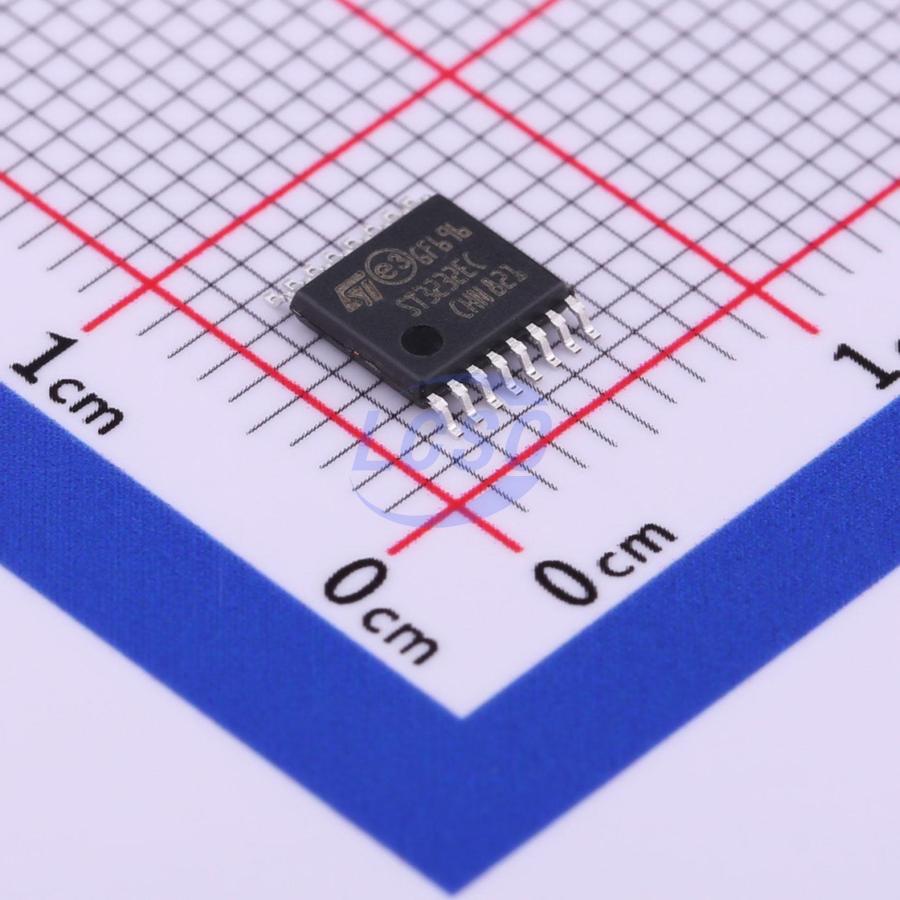

ST3232ECTR
Transceiver 3V~5.5V 250Kbps TSSOP-16 Drivers, Receivers, Transceivers RoHS
TSSOP-16ROHS3 CompliantActive
ST3232E Series RS-232 Transceivers
- Manufacturer
- ST
- Manufacturer part #
- ST3232ECTR
- Store part #
- C52538
- Package / case
- TSSOP-16
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,611 in stock
#C52538
Stock & price checked 40 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹105.30 | ₹105.30 |
| 10+ | ₹85.32 | ₹853.20 |
| 30+ | ₹75.56 | ₹2,266.80 |
| 100+ | ₹65.57 | ₹6,557.00 |
| 500+ | ₹59.71 | ₹29,855.00 |
| 1,000+ | ₹56.66 | ₹56,660.00 |
1 × ₹105.30
₹105.30
excl. GST
₹124.25 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
ST3232ECTR
₹105.30 for 1 + GST
Specifications
- Type
- Transceiver
- Voltage - Supply
- 3V~5.5V
- Data Rate
- 250Kbps
- Operating Temperature
- 0℃~+70℃
- ESD Protect
- ±15kV
- charge pump
- Yes
- Number of Drivers
- 2
- Number of Receivers
- 2
- Quiescent Supply Current
- 300uA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.203 g
Overview
The ST3232E is a 3 V powered EIA/TIA-232 and V.28/V.24 communication interfaces with low power requirements, high data-rate capabilities and enhanced electrostatic discharge (ESD) protection to ± 8 kV using IEC1000-4-2 contact discharge and ± 15 kV using the human body model. It has a proprietary low dropout transmitter output stage providing true RS-232 performance from 3 to 5 V supplies with a dual charge pump. The charge pump requires only four small 0.1 μF standard external capacitors for operations from 3 V supply. The ST3232E has two receivers and two drivers. The device is guaranteed to run at data rates of 250 kbps while maintaining RS-232 output levels.
Applications
- Notebook, subnotebook and palmtop computers
- Battery powered equipment
- Hand-held equipment
- Peripherals and printers
Key features
- ESD protection for RS-232 I/O pins
- ±15 kV human body model
- ±8 kV IEC 1000-4-2 contact discharge
- 300 μA supply current
- 250 kbps minimum guaranteed data rate
- 6 V/μs minimum guaranteed slew rate
- Meet EIA/TIA-232 specifications down to 3 V
- Available in SO-16, SO-16 large and TSSOP16
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MAX3232ECPWR#C11317TI · TSSOP-16 | TI | TSSOP-16 | 22,046 | ₹94.85 · 22,046 in stock | View |
 | ICL3232CVZ#C1543927RENESAS · TSSOP-16 | RENESAS | TSSOP-16 | 26 | ₹447.90 · 26 in stock | View |
 | TRS3232ECPWR#C201542TI · TSSOP-16 | TI | TSSOP-16 | 97 | ₹221.22 · 97 in stock | View |
 | SP3232EBCY-L/TR#C365761MaxLinear · TSSOP-16 | MaxLinear | TSSOP-16 | 5,584 | ₹129.09 · 5,584 in stock | View |
 | MAX3232IPWR#C113205TI · TSSOP-16 | TI | TSSOP-16 | 24,623 | ₹60.47 · 24,623 in stock | View |
