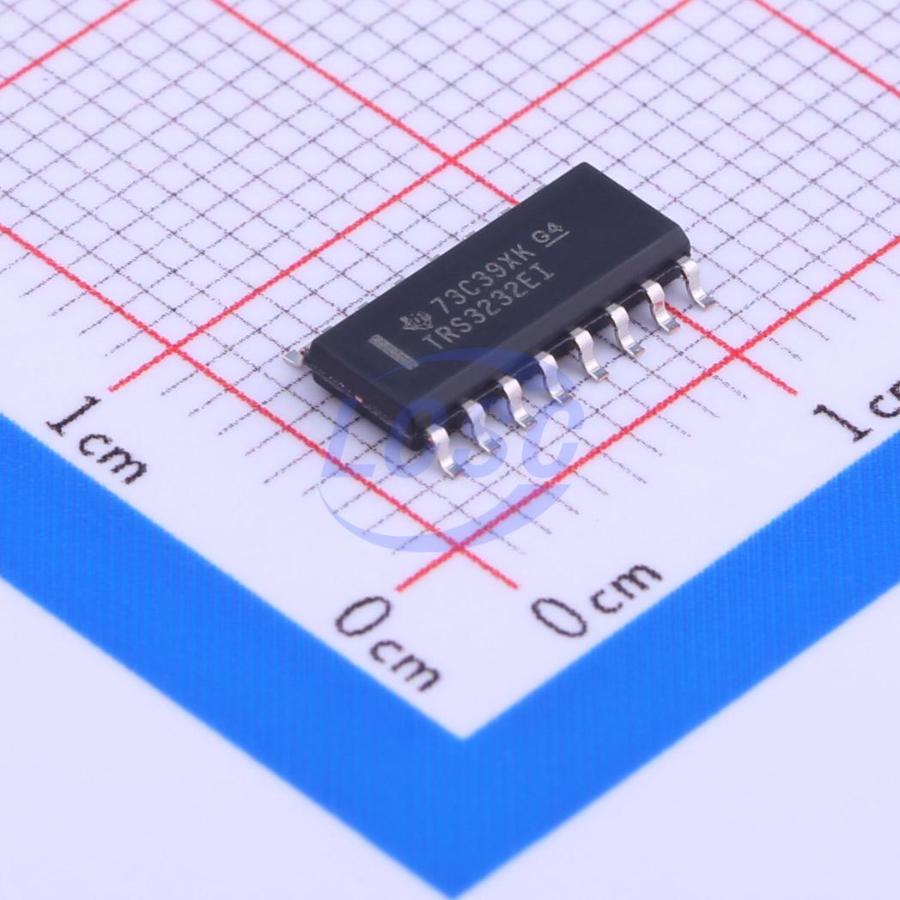

TRS3232EIDR

Transceiver 3V~5.5V 250Kbps SOIC-16 Drivers, Receivers, Transceivers RoHS

SOIC-16ROHS CompliantActive

3V to 5.5V multi-channel RS-232 line drivers and receivers in a small package with ±15kV IEC ESD protection

Manufacturer: TI
Manufacturer part #: TRS3232EIDR
Store part #: C308878
Package / case: SOIC-16
Category: Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,524 in stock

#C308878

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹85.65	₹85.65
10+	₹69.60	₹696.00
30+	₹62.45	₹1,873.50
100+	₹50.96	₹5,096.00
500+	₹47.06	₹23,530.00
1,000+	₹44.66	₹44,660.00

Quantity (min 1)

1 × ₹85.65

₹85.65

excl. GST

₹101.07 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

TRS3232EIDR

₹85.65 for 1 + GST

Specifications

Type: Transceiver
Voltage - Supply: 3V~5.5V
Data Rate: 250Kbps
Operating Temperature: -40℃~+85℃
ESD Protect: ±15kV
charge pump: Yes
Number of Drivers: 2
Features: Short-Circuit Protection
Number of Receivers: 2
Quiescent Supply Current: 0.3mA

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.272 g

Overview

The TRS3232E device consists of two line drivers, two line receivers, and a dual charge-pump circuit, with pin-to-pin (serial port connection pins, including GND) ±15kV IEC ESD protection. The device complies with TIA/EIA-232-F requirements and provides an electrical interface between asynchronous communication controllers and serial port connectors. The charge pump and four small external capacitors support single-supply operation from 3V to 5.5V. These devices operate at data signaling rates up to 250kbps with a maximum driver output slew rate of 30V/μs.

Applications

Industrial PC
Wired networking
Data center and enterprise computing
Battery-powered systems
Laptops
PDAs
Handheld devices

Key features

ESD protection for RS-232 bus pins
±15kV HBM, ±8kV (IEC61000-4-2, contact discharge)
±15kV (IEC61000-4-2, air-gap discharge)
Meets or exceeds TIA/EIA-232-F and ITU V.28 requirements
Powered by 3V to 5.5V VCC supply
Interoperable with RS-232 at VCC as low as 2.7V
Operating rate up to 250kbps
Two drivers and two receivers
Low supply current: 300 μA (typical)
External capacitors: 4×0.1 μF
Accepts 5V logic inputs with 3.3V supply
Near chip-scale package (QFN-16, 3mm×3mm), 85% smaller than SOIC-16
Pin-compatible with alternate high-speed device (1Mbps)
SN65C3232E (-40℃ to +85℃)
SN75C3232E (0℃ to 70℃)

Alternatives

Similar parts — check the datasheet before substituting.
