STDatasheet (PDF)

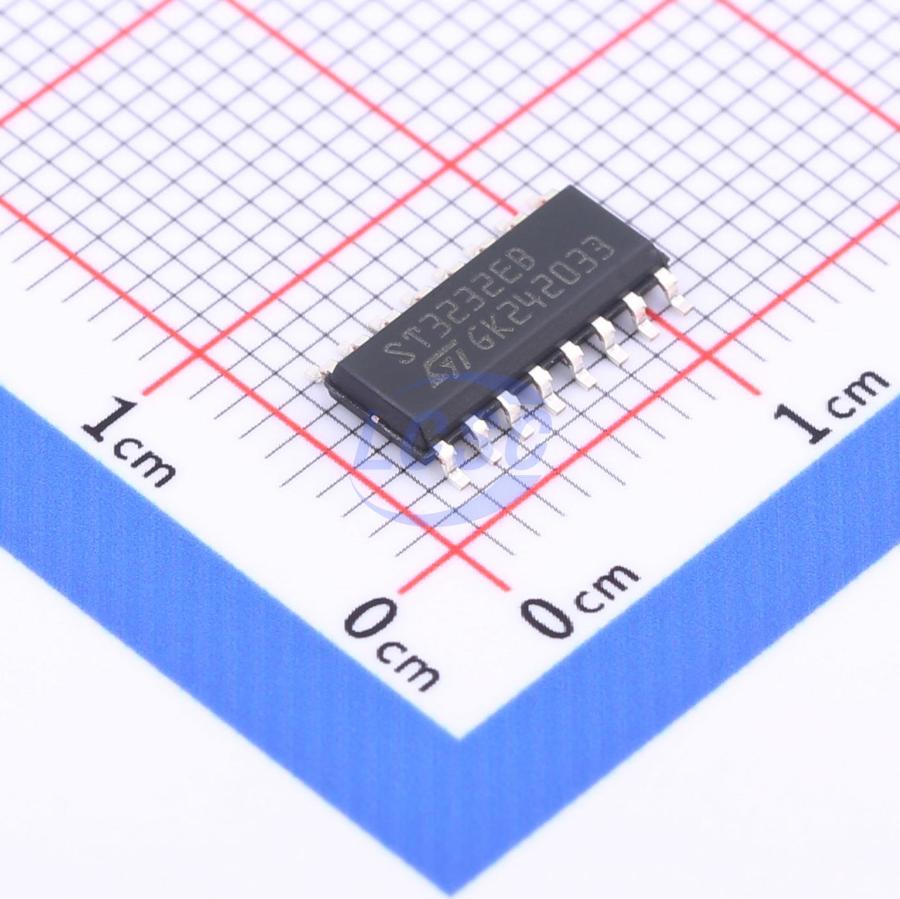

ST3232EBDR
Transceiver 3V~5.5V 250Kbps SO-16 Drivers, Receivers, Transceivers RoHS
SO-16ROHS3 CompliantActive
±15 kV ESD protection, 3 to 5.5 V low power, up to 250 kbps, RS-232 drivers and receivers
- Manufacturer
- ST
- Manufacturer part #
- ST3232EBDR
- Store part #
- C970561
- Package / case
- SO-16
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,085 in stock
#C970561
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹111.70 | ₹111.70 |
| 10+ | ₹91.05 | ₹910.50 |
| 30+ | ₹80.84 | ₹2,425.20 |
| 100+ | ₹70.85 | ₹7,085.00 |
| 500+ | ₹64.76 | ₹32,380.00 |
| 1,000+ | ₹61.72 | ₹61,720.00 |
1 × ₹111.70
₹111.70
excl. GST
₹131.81 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
ST3232EBDR
₹111.70 for 1 + GST
Specifications
- Type
- Transceiver
- Voltage - Supply
- 3V~5.5V
- Data Rate
- 250Kbps
- Operating Temperature
- -40℃~+85℃
- ESD Protect
- ±15kV
- charge pump
- Yes
- Number of Drivers
- 2
- Number of Receivers
- 2
- Quiescent Supply Current
- 0.3mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.472 g
Overview
The ST3232E is a 3 V powered EIA/TIA-232 and V.28/V.24 communication interfaces with low power requirements, high data-rate capabilities and enhanced electrostatic discharge (ESD) protection to ± 8 kV using IEC1000-4-2 contact discharge and ± 15 kV using the human body model. The ST3232E has a proprietary lowdropout transmitter output stage providing true RS-232 performance from 3 to 5 V supplies with a dual charge pump. The charge pump requires only four small 0.1 μF standard external capacitors for operations from 3 V supply. The ST3232E has two receivers and two drivers. The device is guaranteed to run at data rates of 250 kbps while maintaining RS-232 output levels.
Applications
- Notebook, subnotebook and palmtop computers
- Battery-powered equipment
Key features
- ESD protection for RS-232 I/O pins ±15 kV human body model
- ±8 kV IEC 1000-4-2 contact discharge
- 300 μA supply current
- 250 kbps minimum guaranteed data rate
- 6 V/μs minimum guaranteed slew rate
- Meet EIA/TIA-232 specifications down to 3 V
- Available in SO-16 and TSSOP16
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MAX3232EIDR#C193666TI · SOIC-16 | TI | SOIC-16 | 69,884 | ₹52.31 · 69,884 in stock | View |
 | ICL3232IBNZ-T#C2652879RENESAS · SOIC-16 | RENESAS | SOIC-16 | 283 | ₹287.06 · 283 in stock | View |
 | TRS3232EIDR#C308878TI · SOIC-16 | TI | SOIC-16 | 1,524 | ₹85.65 · 1,524 in stock | View |
 | SP3232EBEN-L/TR#C6852MaxLinear · SOIC-16 | MaxLinear | SOIC-16 | 5,452 | ₹116.99 · 5,452 in stock | View |
 | TPT3232A-SO3R#C387974753PEAK · SOP-16 | 3PEAK | SOP-16 | 2,295 | ₹64.34 · 2,295 in stock | View |
