onsemiDatasheet (PDF)

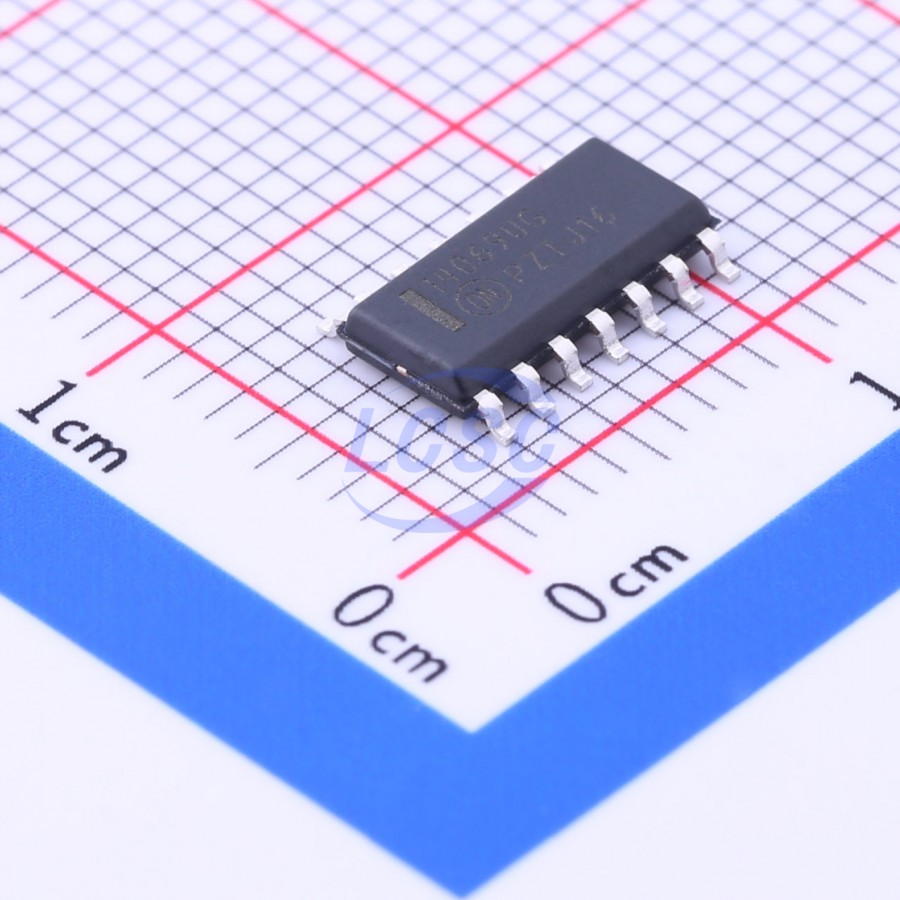

MC14069UBDR2G
StandardCMOS 3V~18V 55ns@15V,50pF 1uA 6 SOIC-14 Gates and Inverters RoHS
SOIC-14ROHS3 CompliantActive
Hex Inverter
- Manufacturer
- onsemi
- Manufacturer part #
- MC14069UBDR2G
- Store part #
- C36955
- Package / case
- SOIC-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,545 in stock
#C36955
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹24.83 | ₹124.15 |
| 50+ | ₹19.25 | ₹962.50 |
| 150+ | ₹16.86 | ₹2,529.00 |
| 500+ | ₹13.88 | ₹6,940.00 |
| 2,500+ | ₹12.54 | ₹31,350.00 |
| 5,000+ | ₹11.75 | ₹58,750.00 |
5 × ₹24.83
₹124.15
excl. GST
₹146.50 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MC14069UBDR2G
₹124.15 for 5 + GST
Specifications
- output type
- Push-pull
- Input Type
- StandardCMOS
- Logic Family
- 4000B
- Voltage - Supply
- 3V~18V
- Output Logic Level - Low
- 50mV
- Propagation Delay
- 55ns@15V,50pF
- Operating Temperature
- -55℃~+125℃
- Input Logic Level - Low
- 1V~2.5V
- Input Logic Level - High
- 4V~12.5V
- Output Logic Level - High
- 4.95V
- Quiescent Current(Iq)
- 1uA
- Current - Output High(IOH)
- 8.8mA
- Number of Channels
- 6
- Current - Output Low(IOL)
- 8.8mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.36 g
Overview
The MC14069UB hex inverter is constructed with MOS P−channel and N. −channel enhancement mode devices in a single monolithic structure. These inverters find primary use where low power dissipation and/or high noise immunity is desired. Each of the six inverters is a single stage to minimize propagation delays.
Key features
- Supply Voltage Range = 3.0 Vdc to 18 Vdc
- Capable of Driving Two Low−Power TTL Loads or One Low−Power Schottky TTL Load Over the Rated Temperature Range
- Triple Diode Protection on All Inputs
- Pin−for−Pin Replacement for CD4069UB
- Meets JEDEC UB Specifications
- NLV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
- These Devices are Pb−Free and are RoHS Compliant
