onsemiDatasheet (PDF)

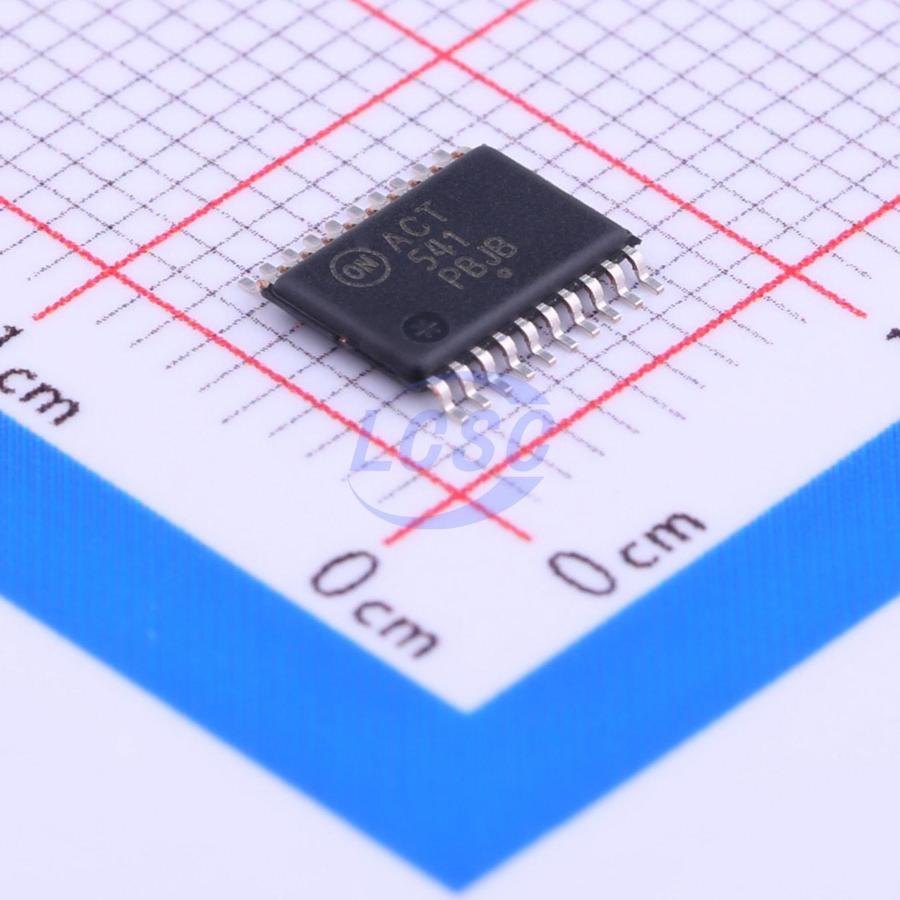

MC74ACT541DTR2G
4.5V~5.5V 8 1 7.5ns@5V,50pF TSSOP-20 Buffers, Drivers, Receivers, Transceivers RoHS
TSSOP-20ROHS3 CompliantActive
Octal Buffer/Line Driver with 3-State Outputs
- Manufacturer
- onsemi
- Manufacturer part #
- MC74ACT541DTR2G
- Store part #
- C8112
- Package / case
- TSSOP-20
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,196 in stock
#C8112
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹85.33 | ₹85.33 |
| 10+ | ₹67.92 | ₹679.20 |
| 30+ | ₹59.22 | ₹1,776.60 |
| 100+ | ₹50.51 | ₹5,051.00 |
| 500+ | ₹45.29 | ₹22,645.00 |
| 1,000+ | ₹42.67 | ₹42,670.00 |
1 × ₹85.33
₹85.33
excl. GST
₹100.69 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MC74ACT541DTR2G
₹85.33 for 1 + GST
Specifications
- Function
- Output enable
- Current - Output High(IOH)
- 24mA
- Series
- 74ACT
- Voltage - Supply
- 4.5V~5.5V
- Output Type
- Tri-State
- Current - Output Low(IOL)
- 24mA
- Number of Bits per Element
- 8
- Channel Type
- Unidirectional
- Number of Elements
- 1
- Operating Temperature
- -40℃~+85℃
- Quiescent Supply Current
- 80uA
- Propagation Delay
- 7.5ns@5V,50pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.2 g
Overview
The MC74AC540/74ACT540 and MC74AC541/74ACT541 are octal buffer/line drivers designed to be employed as memory and address drivers, clock drivers and bus oriented transmitter/receivers. The MC74AC541/74ACT541 is a noninverting option of the MC74AC540/74ACT540. These devices are similar in function to the MC74AC240/74ACT240 and MC74AC244/74ACT244 while providing flow- through architecture (inputs on opposite side from outputs). This pinout arrangement makes these devices especially useful as output ports for microprocessors, allowing ease of layout and greater PC board density.
Key features
- 3-State Outputs
- Inputs and Outputs Opposite Side of Package, Allowing Easier Interface to Microprocessors
- Outputs Source/Sink 24 mA
- MC74AC540/74ACT540 Provides Inverted Outputs
- MC74AC541/74ACT541 Provides Noninverted Outputs
- 'ACT540 and 'ACT541 Have TTL Compatible Inputs
- Pb-Free Packages are Available
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MC74ACT540DTR2G#C904011onsemi · TSSOP-20 | onsemi | TSSOP-20 | 24 | ₹143.62 · 24 in stock | View |
 | 74HCT541PW#C53552921MDD(Microdiode Semiconductor) · TSSOP-20 | MDD(Microdiode Semiconductor) | TSSOP-20 | 50 | ₹30.34 · 50 in stock | View |
 | 74AHCT541PW,118#C84548Nexperia · TSSOP-20 | Nexperia | TSSOP-20 | 15,960 | ₹28.70 · 15,960 in stock | View |
 | SN74HCT541PWR#C436096TI · TSSOP-20 | TI | TSSOP-20 | 26,093 | ₹67.06 · 26,093 in stock | View |
| MM74HCT541MTC#C897491onsemi · TSSOP-20 | onsemi | TSSOP-20 | 81 | ₹89.87 · 81 in stock | View | |
