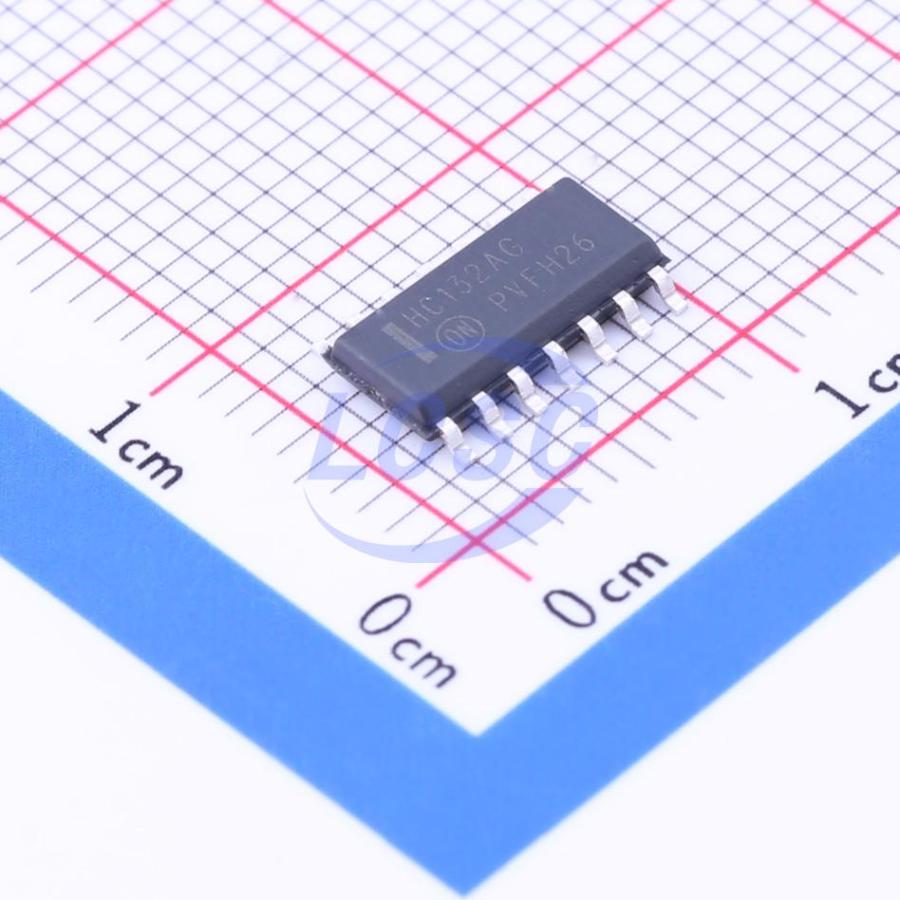

MC74HC132ADR2G
Schmitt trigger 2V~6V 21ns@6V,50pF 1uA SOIC-14 Gates and Inverters RoHS
SOIC-14ROHS3 CompliantActive
Quad 2-Input NAND Gate with Schmitt-Trigger Inputs, High-Performance Silicon-Gate CMOS
- Manufacturer
- onsemi
- Manufacturer part #
- MC74HC132ADR2G
- Store part #
- C7332
- Package / case
- SOIC-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,945 in stock
#C7332
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹42.53 | ₹212.65 |
| 50+ | ₹33.50 | ₹1,675.00 |
| 150+ | ₹29.62 | ₹4,443.00 |
| 500+ | ₹24.79 | ₹12,395.00 |
| 2,500+ | ₹20.84 | ₹52,100.00 |
| 5,000+ | ₹19.55 | ₹97,750.00 |
5 × ₹42.53
₹212.65
excl. GST
₹250.93 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MC74HC132ADR2G
₹212.65 for 5 + GST
Specifications
- Input Type
- Schmitt trigger
- Logic Family
- 74HC Series
- Voltage - Supply
- 2V~6V
- Output Logic Level - Low
- 100mV;400mV
- Propagation Delay
- 21ns@6V,50pF
- Operating Temperature
- -55℃~+125℃
- Output Logic Level - High
- 1.9V;4.4V;5.9V;3.7V;5.2V
- Quiescent Current(Iq)
- 1uA
- Current - Output High(IOH)
- 5.2mA
- Number of Channels
- 4;2
- Current - Output Low(IOL)
- 5.2mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.36 g
Overview
The MC74HC132A is identical in pinout to the LS132. The device inputs are compatible with standard CMOS outputs; with pull−up resistors, they are compatible with LSTTL outputs. The HC132A can be used to enhance noise immunity or to square up slowly changing waveforms.
Key features
- Output Drive Capability: 10 LSTTL Loads
- Outputs Directly Interface to CMOS, NMOS, and TTL
- Operating Voltage Range: 2.0 to 6.0 V
- Low Input Current: 1.0 μA
- High Noise Immunity Characteristic of CMOS Devices
- In Compliance with the Requirements as Defined by JEDEC Standard No. 7A
- Chip Complexity: 72 FETs or 18 Equivalent Gates
- NLV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
- These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74HC132DR#C350560TI · SOIC-14 | TI | SOIC-14 | 10,510 | ₹28.54 · 10,510 in stock | View |
 | MC74HC132ADG#C233531onsemi · SOIC-14 | onsemi | SOIC-14 | 220 | ₹51.32 · 220 in stock | View |
 | CD74HC132M96#C484714TI · SOIC-14 | TI | SOIC-14 | 1,085 | ₹43.90 · 1,085 in stock | View |
 | SN74HC132DTR(XBLW)#C42376980XBLW · SOP-14 | XBLW | SOP-14 | 2,405 | ₹18.89 · 2,405 in stock | View |
 | MM74HC132M#C897301onsemi · SOIC-14 | onsemi | SOIC-14 | 70 | ₹79.67 · 70 in stock | View |
