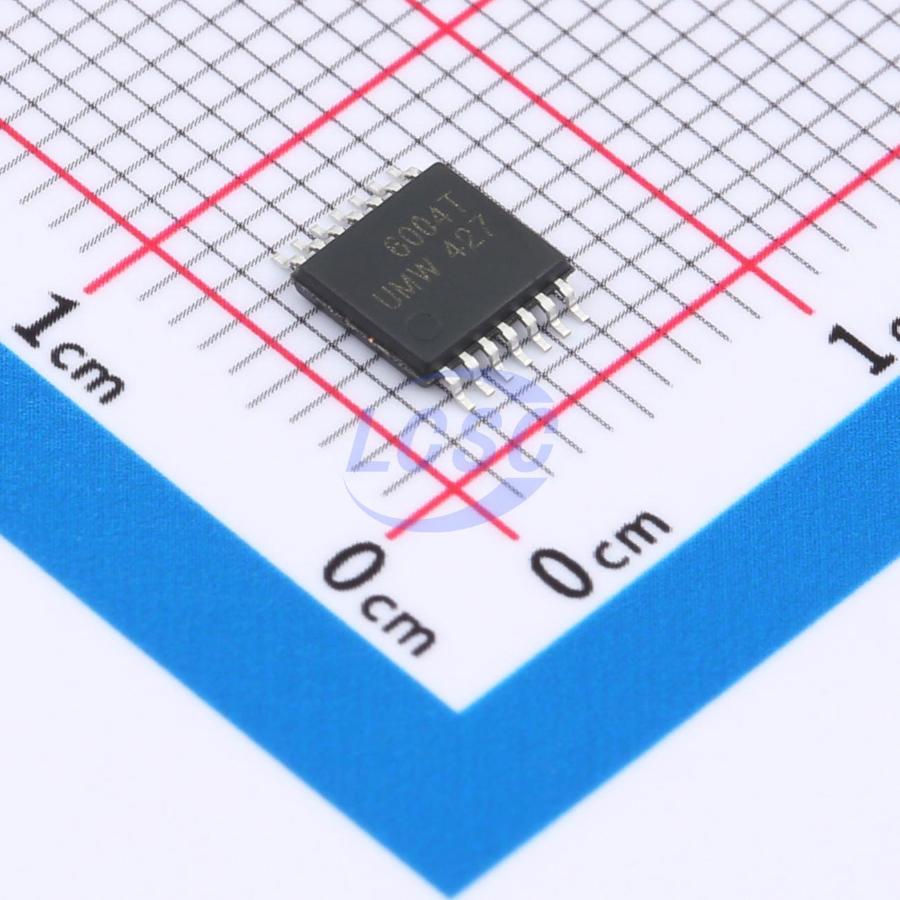

MCP6004T-E/ST(UMW)
23mA 4 4.5mV 600V/ms 1pA 76dB 100uA 1MHz Rail-to-Rail Input, Rail-to-Rail Output TSSOP-14 Instrumentation, Op Amps, Buffer Amps RoHS
TSSOP-14ROHS CompliantActive
1 MHz, Low-Power Op Amp
- Manufacturer
- UMW
- Manufacturer part #
- MCP6004T-E/ST(UMW)
- Store part #
- C32713111
- Package / case
- TSSOP-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
11,950 in stock
#C32713111
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹22.37 | ₹111.85 |
| 50+ | ₹17.48 | ₹874.00 |
| 150+ | ₹15.37 | ₹2,305.50 |
| 500+ | ₹12.74 | ₹6,370.00 |
| 2,500+ | ₹11.58 | ₹28,950.00 |
| 4,000+ | ₹10.88 | ₹43,520.00 |
5 × ₹22.37
₹111.85
excl. GST
₹131.98 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
MCP6004T-E/ST(UMW)
₹111.85 for 5 + GST
Specifications
- Output Current
- 23mA
- Number of Channels
- 4
- Vos - Input Offset Voltage
- 4.5mV
- Slew Rate
- 600V/ms
- Input Offset Current(Ios)
- 1pA
- Operating Temperature
- -40℃~+125℃
- Ib - Input Bias Current
- 1pA
- Common Mode Rejection Ratio(CMRR)
- 76dB
- Input Offset Voltage Drift(Vos TC)
- 2uV/℃
- Quiescent Current
- 100uA
- Gain Bandwidth Product
- 1MHz
- Input Voltage Noise Density
- 28nV/√Hz@1kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 1.8V~6V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.164 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MCP6004T-I/ST(UMW)#C32713110UMW · TSSOP-14 | UMW | TSSOP-14 | 14,465 | ₹25.36 · 14,465 in stock | View |
 | TLV4313IPWR(UMW)#C22368267UMW · TSSOP-14 | UMW | TSSOP-14 | 3,935 | ₹42.20 · 3,935 in stock | View |
 | TSV6394IPT(UMW)#C22374967UMW · TSSOP-14 | UMW | TSSOP-14 | 3,500 | ₹43.22 · 3,500 in stock | View |
 | AD8544ARUZ(UMW)#C22368265UMW · TSSOP-14 | UMW | TSSOP-14 | 11,105 | ₹36.95 · 11,105 in stock | View |
 | TSV6394AIPT(UMW)#C22374968UMW · TSSOP-14 | UMW | TSSOP-14 | 11,829 | ₹40.38 · 11,829 in stock | View |
